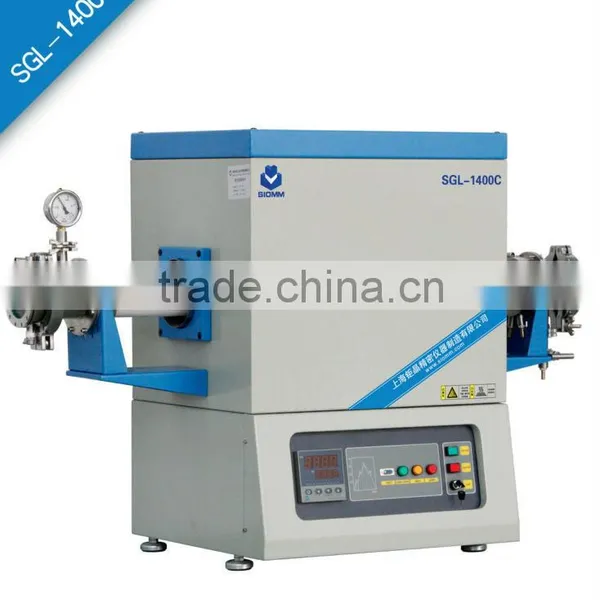

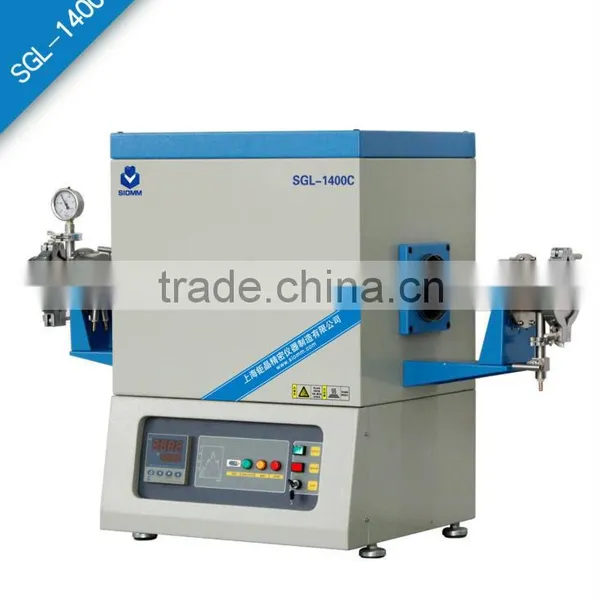

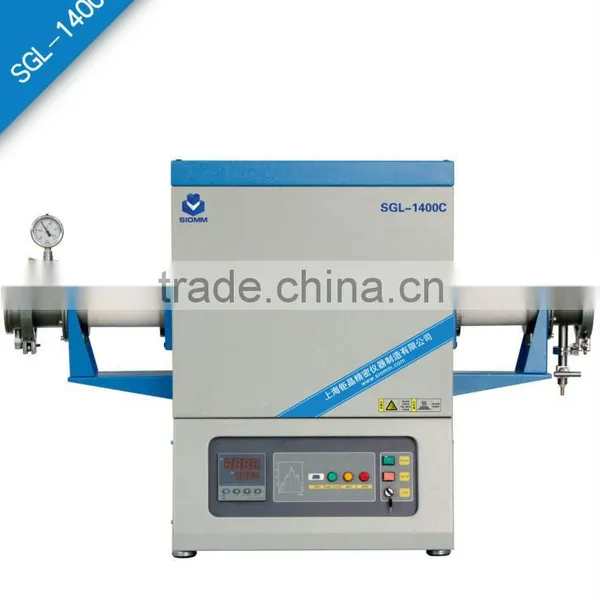

High Temp.gas Ceramic Alundum Tube Furnace SGL-1400C

Name: High Temp.gas Ceramic Alundum Tube Furnace SGL-1400C
Brand: SIOMM
SKU: 103400937
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

SIOMM

Model Number:

SGL-1400C

Place of Origin:

Shanghai, China

Shanghai Jinwei Instrument Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Brand Name SIOMM

Model Number SGL-1400C

Place of Origin Shanghai, China

Specifications

1.High temperature
2.99ceramic alundum tube
3.silicon carbide rod
4.S thermocouple

Model	SGL-1400	SGL-1400S
Product feature	No window	Have window
Furnace chamber	Imported high pure polycrystalline alumina fiber, excellent heat preservation
Furnace tube size	Φ60/80/100*1000mm
Heating elements	High - quality silicon carbide rod
Thermometric component	s-mode thermocouple
Temperature control mode	The temperature control system uses artificial intelligence technology, with PID control, self - tuning function , 50 the heating and cooling program
Seal mode	Stainless steel flange extrusion seal
Standard vacuum degree	≤50Pa (If need more high vacuum degree, can purchase different vacuum system)
Working temp	≤1300C
Max temperature	1350C
Constant temperature accuracy	±1C
Constant temperature zone length	200mm (Customizable)
Max. Temperature rising rate	15C/min
Recommend temp rising rate	10C/min
Rated power	5KW
Working power	AC220V 50HZ/60HZ
Overall size	560510740mm
Weight	80KG
Standard accessories	Sealed flanges 1 pcs, O-rings 4 pcs, quartz tube 1 pcs, vacuum pump 1 set, pipe plug 4 pcs, oven gloves, crucible tongs each 1 pcs
Optional purchase accessories	Furnace hobs; Mixed gas system; Low, medium and high vacuum system; All kinds of alumina crucibles; Alumina tube or quartz tube; Computer control software; Paperless recorder, etc.
