plastic pallets making machine LSF1100

Stanard Export Packing

Product Description

plastic pallets making machine LSF1100 suitable for processing and injection of  many kinds of HDPE pallets

INJECTION UNIT		Unit	LSF-1100
			A	B	C
	Screw Diameter	Mm	115	120	125
	Screw L/D Ratio	L/D	21.4	20.5	19.7
	Short Size	Cm3	5710	6217	6746
	Injection weight	G	5139	5595	6071
	Injection Rate	g/s	878	925	960
	Plasticizing capacity	g/s	108	118	138
	Injection Pressure	Mpa	179	164	151
	Screw Speed	Rpm	0-100
CLAMPING UNIT	Clamp Force	KN	11000
	Space Between Tie Bars	mm	1200*1200
	Toggle Stroke	mm	1200
	Max. Mold Height	mm	1200
	Min. Mold Height	mm	500
	Ejector Stroke	mm	325
	Ejector Tonnage	KN	260
	Ejector Number	P	17
OTHERS	Max. pump Pressure	Mpa	16
	Pump motor powder	Kw	55+55
	Heater Power	Kw	63.4
	Machine Dimension(L*W*H)	M	11*2.4*3.6
	Machine Weight	T	60



 Machine Structure(Standard Configuration)

1. Adopting double-cylinder injection, with multilevel injection, pressure maintaining and anti-dribbling action, good injection pressure and good injection speed.

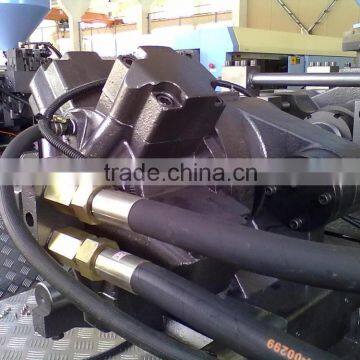

2. Low-speed high torque hydraulic motors drive screws directly, stepless speed changing is achieved.

3. Adopting five-pivot point double-elbow hydraulic machinery clamping devices and stable movement.

4. Adopting computer control, proportional electrohydraulic drive, auto-alarm, fail safe, high degree of automation.

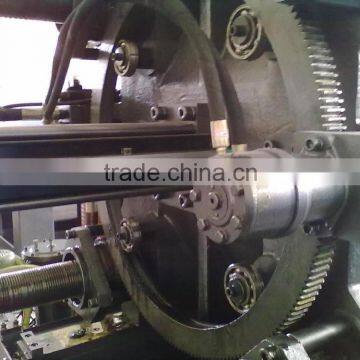

5. Hydraulic motor actuate gearwheel to regulate mold.

6. Pre-molding and back-pressure regulator.

7. Low pressure protection for mold.

 8. Multiple hydraulic ejecting.

9. Hydraulic oil pressure, double-pump, double-proportion control.

 10. Single hydraulic inserting and taking-out core device.

 11. Mechanical and electrical safety device.

 12. Molding memory system.

 13. Liner displacement sensor control.

 14. Special computer for injection molding machine.

 15. The machine has “Manual” mode, “Semi-automatic” mode and “Automatic” mode. “Automatic” mode including “Electric Eye” automatic and “Time” automatic for users to choose.

 16. Hydraulic components are designed to be outside the machine, which is easy for installation and maintenance.

 Features:

 1)Plastic injection moulding machine hydraulic unit

  This unit of our plastic injection molding machine composed of imported advanced hydraulic components. System pressure is controlled by proportional valve. According to users demand, a quick mold clamping device and fast-respond excellent control valves also can be fitted on the unit.

2)Plastic injection moulding machine clamping unit

    Optimum designed double-toggle five-joint clamping machinery has functions such as large open stroke, efficient and reliable movement. Multi-eject Functions with pressure, speed, position and delay time adjustable are suitable for various molding conditions. In addition, we can deploy multilevel moulding devices according to the requirement of the user.

3)Plastic injection machine electronic equipments control

   It is adopted special computer of plastic-injection machine and advanced CPU controller. Which can raise the operating speed of the control system and warm of excess oil-temperature to ensure the working accuracy of machine.
