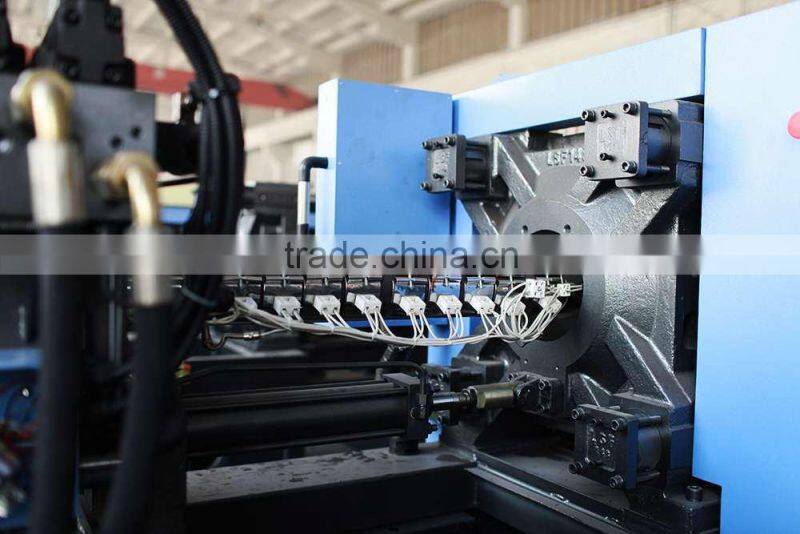

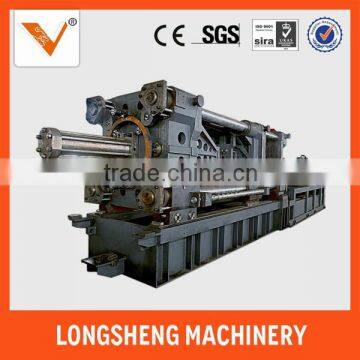

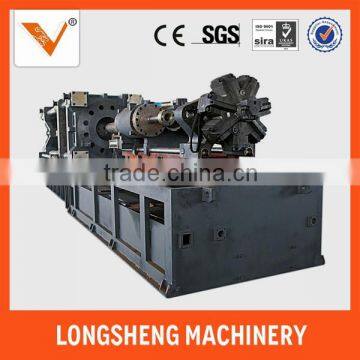

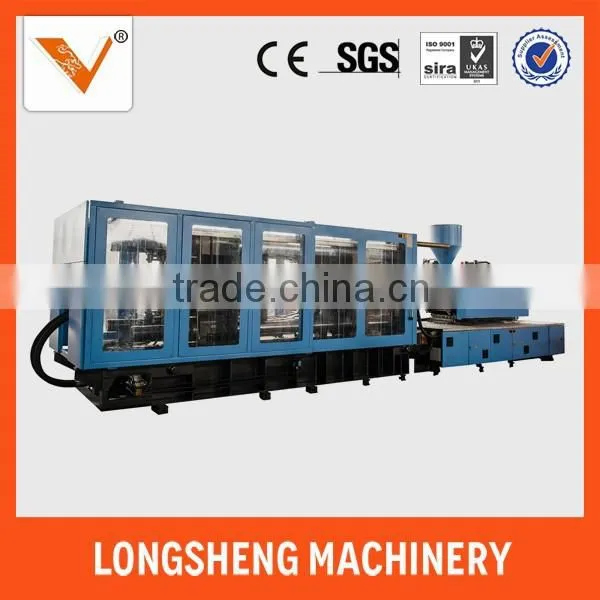

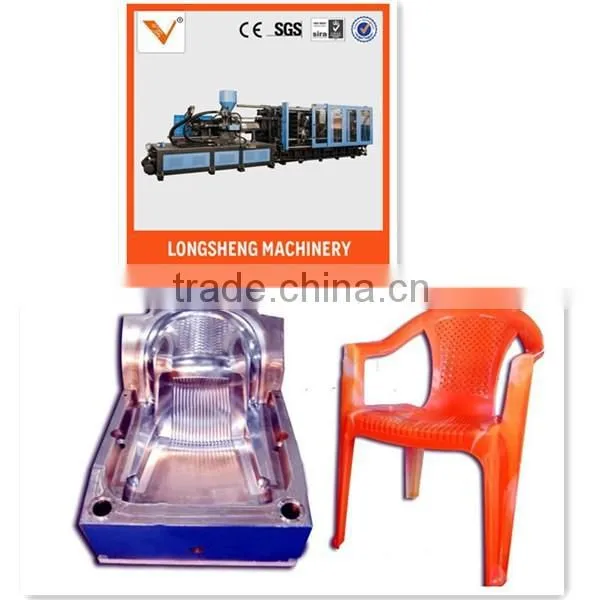

880ton plastic chair moulding machine
|
INJECTION UNIT |
|
Unit |
LSF-880 |
||
A |
B |
C
|
|||
Screw Diameter |
Mm |
105 |
110 |
120 |
|
Screw L/D Ratio |
L/D |
22 |
21 |
19.2 |
|
Short Size |
Cm3 |
4396 |
4825 |
5742 |
|
Injection weight |
G |
4000 |
4390 |
5225 |
|
Injetcion rate |
g/s |
679 |
821 |
929 |
|
Plasticizing Capacity |
g/s |
90.5 |
102.5 |
114 |
|
Injection Pressure |
Mpa |
184 |
152 |
104 |
|
Screw Speed |
Rpm |
0-100 |
|||
Screw Stroke |
mm |
508 |
|||
|
CLAMPING UNIT |
Clamp Force |
KN |
8800 |
||
Space Between Tie Bars |
mm |
1000X1000 |
|||
Toggle Stroke |
mm |
1000 |
|||
Max. Mold Height |
mm |
1000 |
|||
Min Mold Height |
mm |
400 |
|||
Ejector Stroke |
mm |
325 |
|||
Ejector Tonnage |
KN |
200 |
|||
|
OTHERS |
Max. pump Pressure |
Mpa |
16 |
||
Pump motor powder |
Kw |
37+37 |
|||
Heater Power |
Kw |
58.6 |
|||
Machine Dimension(L*W*H) |
M |
11.2X2.6X3.8 |
|||
Oil tank capacity (L) |
L |
1600 |
|||
Machine Weight |
T |
45
|
|||

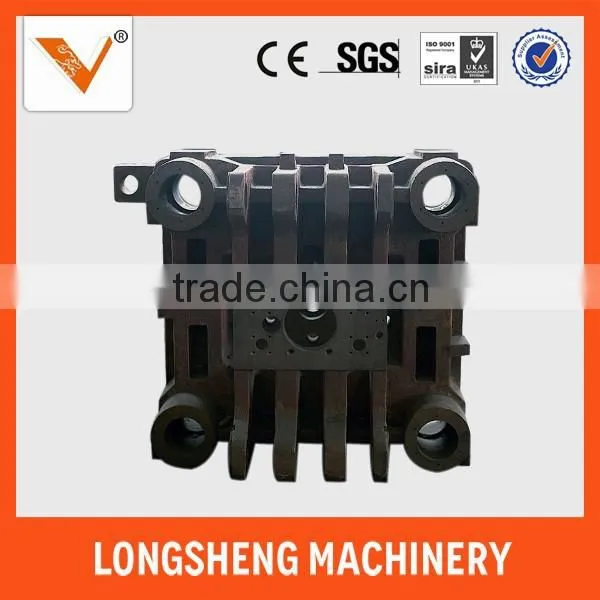

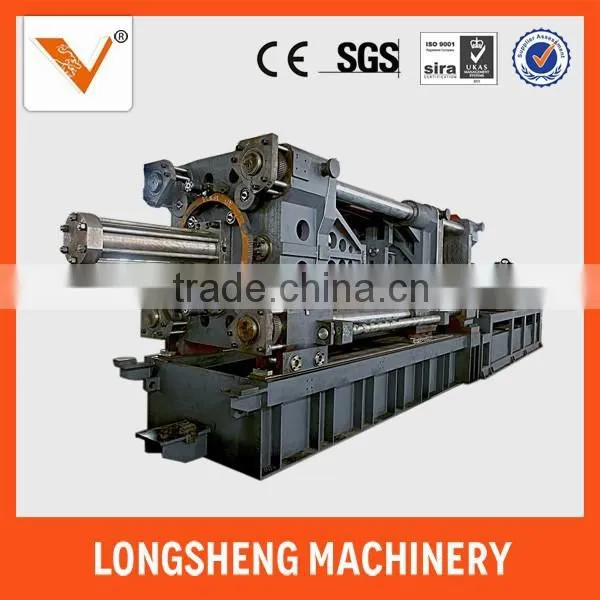

CLAMPING SYSTEM
- Security doors fitted with hydraulic, mechanical and electrical interlocking triple safety device. When the safety door is open, the machine cannot clamp.
- Low pressure mold protection device to prevent damage to platen.
- Plywood, frame, the bridge, and the template attached structure, the finite element analysis.
- Hydraulic ejector, adjustable stroke, and top speed of ejector in and out, for multiple actions.
- Flexible tie bars nut eliminates fatigue fracture; assure the working life of tie bars
- Automatic adjustment. The replacement of different mold, the parameters set by clamping force to achieve the automatic adjustment.
- High-precision electronic detection device, multi-stage control of opening stoke, speed and location, location accuracy.
INJECTION SYSTEM
Diversified screw optimal design municipal science and technology research projects focus on key issues is completed, and is now designed professionally and production for a whole variety of raw material.
the diversity of the screw is for your option.
FEATURES
- There are three or four screws and barrels with optimal design, respectively, nitride, hard plating, dual-metal, which is suitable for different processes of a variety of plastics. and the choice of products.
- Two-guided guided bar supports, double-balanced rapid injection.
- The high-torque hydraulic motors offer a stable plasticizing capacity, highprecision electronic device position detection enable accurate measurement.
- Multi-injection speed and pressure and multi-level holding pressure settings, switch from the injection time, location, pressure control to ensure the quality of molding.
- Multi-level back-pressure of pre-plastic and pre-speed are computer-controlled, anti- drooling and automated auto purge.
- Expected to prevent cold-start function to ensure that the screw, Liao Tong will not be harmed. Stability of the injection unit.
Packaging Detail: |
Plastic injection molding machine in wooden pallet |
Delivery Detail: |
15-45days after receiving TT deposit or L/C at sight |
Good Quality: Strict quality control system .Good reputation in the market.
Fast Delivery: High efficiency forwarder,quality ,quantity and timely shipment.
Good Service: Our company provide one-stop service

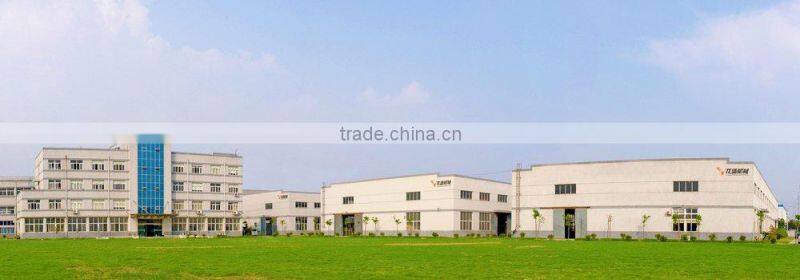

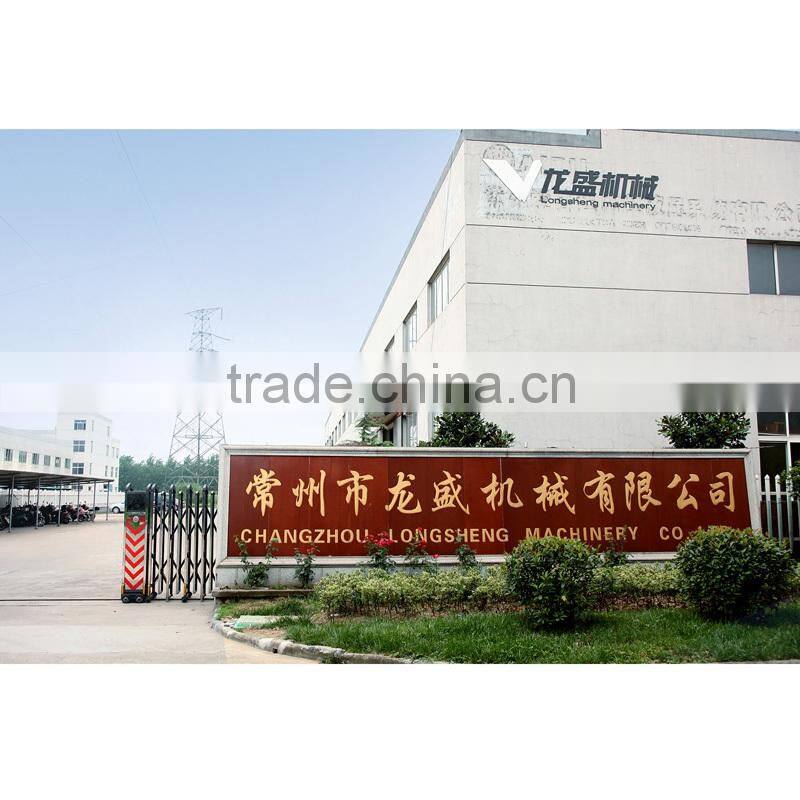

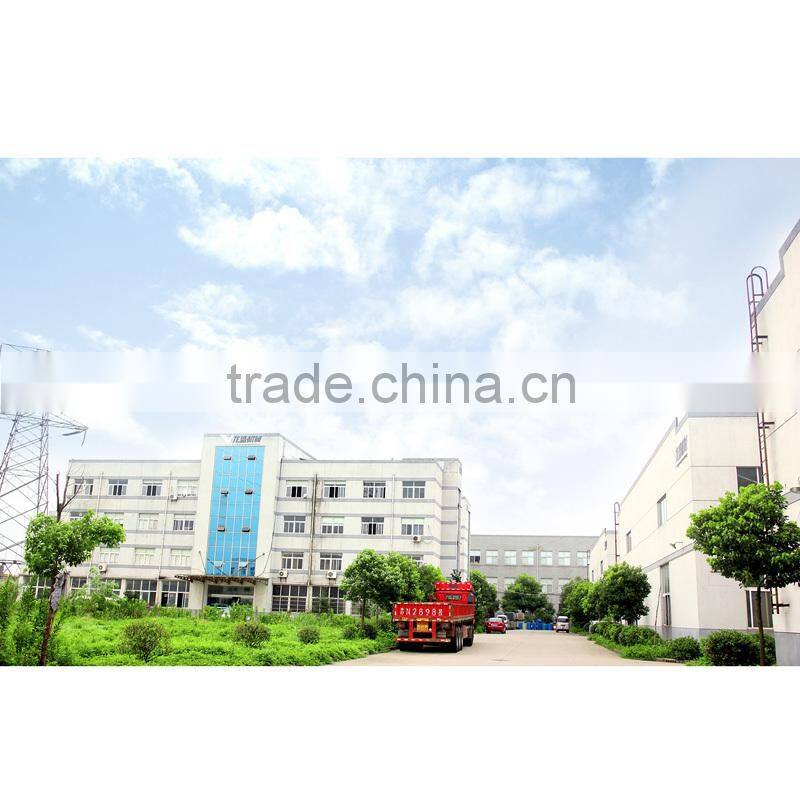

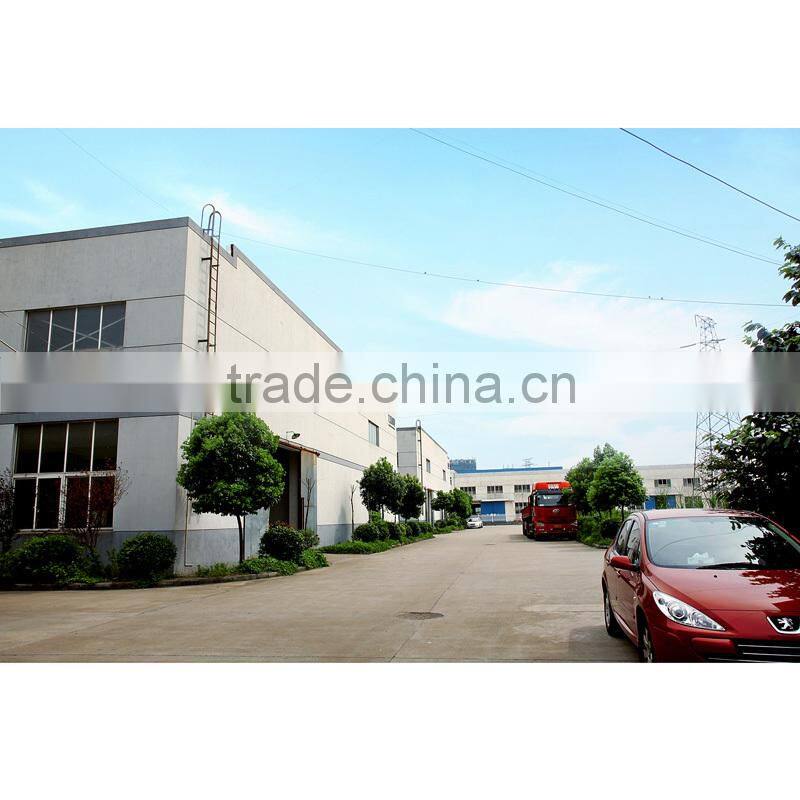

Founded in 2001,Changzhou Longsheng Machinery Co.Ltd
Is a professional manufacturer of PP,PE .PPR ,PVC ,PC ABS ,PET …products injection moulding machine ,the clamp force is from 68 ton to 1680ton .injection weight ranges from 60g to 10000g .
With all those advantages and leading technology implementation,LSF series injection molding machines are extremely suitable for the injection molding processing of many different types of plastic productssuch as precision electronics, telecommunication equipment, home appliances, toys, auto parts and so on.
