Home > Manufacturing & Processing Machinery > Plastic Machinery > Injection Molding Machine > Beer Machine 628ton

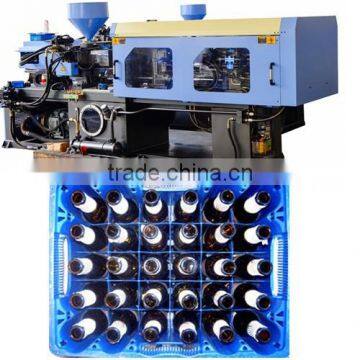

Beer Machine 628ton

Name: Beer Machine 628ton
Brand: LONG SHENG
SKU: 103367887
Availability: InStock

US$ 79,000 - 79,800 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Other, Beer injection

Style:

Horizontal

Contact Supplier Request Quote Chat Now

Changzhou Longsheng Machinery Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Other, Beer injection

Style Horizontal

Brand Name LONG SHENG

Model Number LSF628

Place of Origin Jiangsu, China

Plastic Type Thermoplastic

Automatic Yes

Injection Weight 2605g

Injection Rate 521g/s

Clamping Force 6280kn

Opening Stroke 880*835mm

Power(W) 42kw

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Product Description

beer machine 628ton Specifications

1.bigger space between tie-bars
2.central-clamping structure
3.bigger opening stroke,longer ejecting stroke
4.energy saving

INJECTION UNIT		Unit	LSF-628
		Unit	A	B	C
	Screw Diameter	Mm	85	90	95
	Screw L/D Ratio	L/D	21	19.6	18.6
	Short Size	Cm3	2492	2861	3188
	Injection weight	G	2270	2605	2903
	Injection Rate	g/s	454	521	580
	Plasticizing capacity	g/s	55	68	82
	Injection Pressure	Mpa	163	141	128
	Screw Speed	Rpm	0-105
	Screw stroke(mm)	mm	450
CLAMPING UNIT	Clamp Force	KN	6280
	Space Between Tie Bars	mm	*880835**
	Toggle Stroke	mm	840
	Max. Mold Height	mm	880
	Min. Mold Height	mm	330
	Ejector Stroke	mm	250
	Ejector Tonnage	KN	166
	Ejector Number	P	17
OTHERS	Max. pump Pressure	Mpa	16
	Pump motor powder	Kw	24+30
	Heater Power	Kw	42
	Machine Dimension(LWH)	M	*9.22.22.8*
	Machine Weight	T	26

1.High torque oil motor pre-plasticizing drive

2.Five fulcrum and double bent axle locking mould
3.Oil motor drive gear adjusting mould
4.Strage type oil automatic lubrication system
5.Pressure, flow complete proportion running
6.High quality quieter oil pump
7.Injection many stages pressure, speed adjusting
8.Chinese and English mcrocumputer controlling
9.High-precision position movement ruler
10.Mould group data memory function

CONTROLSYSTEM

All-digital control system uses dedicated controller, multiple CPU processing division,
a multi-functional automatic fault detection, alarm system, certificates 99 mold of
processing procedures, with remote control interface. System is of high stability and
responsiveness. System uses color LCD, man made interface for easy operation and
with a number of peripheral interfaces.

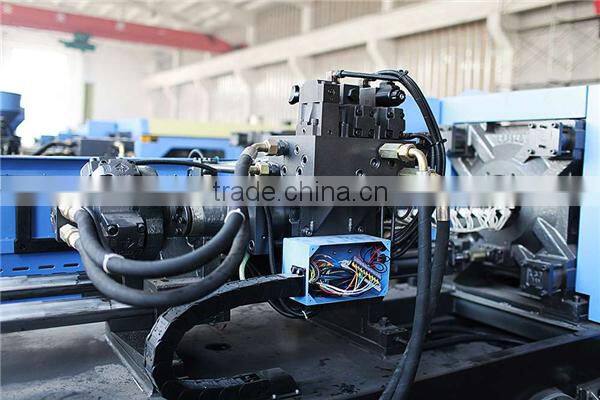

HYDRAULIC SYSTEM

Advanced hydraulic system design, through proportional control of pressure, flow achieves
rapid multi-level pressure, speed switching, the system configuration is reasonable, stable and

reliable. The noise is less than 75 dB. The medium and large machine adopts a two-way
cartridge inserted valve system to improve the system of flow and speed of response, and makes
the whole machine reach the best performance.

INJECTION SYSTEM

2001, diversified screw optimal design municipal science and technology research projects focus

on key issues is completed, and is now designed professionally and production for a whole variety of raw material. the diversity of the screw is for your option

Packaging & Shipping

Packaging Detail:

Painted with anti-corrosion oil, and covered with plastic film, then packed in wooden box.

Our Services

Customer is foremost,integrity comes first.Our professional team can offer worriless full range service and customer-oriented service according to customers individual requirements.

1). Free one-year after-sale service is provided from the arriving date.

2). Installation and start-up guide can be provided at customer site.

3). Free training.

4). The warranty time is 12 months after acceptance. Abnormal operation and abuse of the machinery are excluded. Wearable parts, such as screws and barrels are warranted.
