Specifications

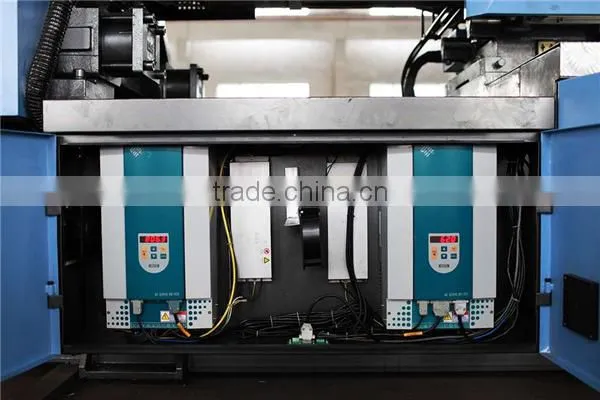

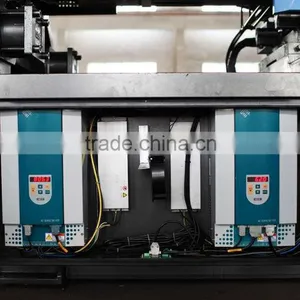

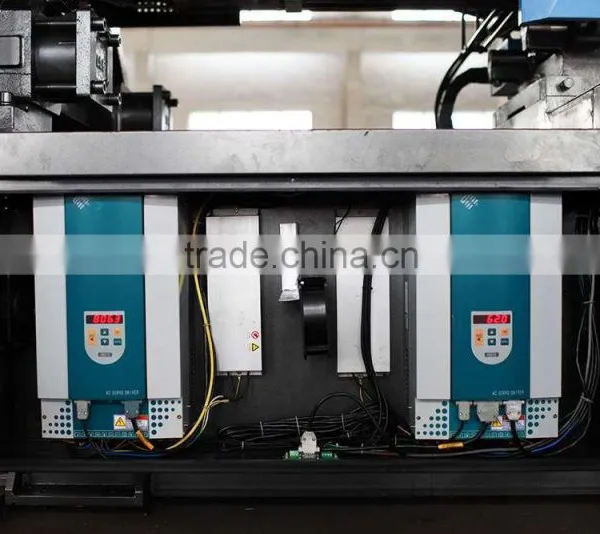

Servo system,save electricity 60% ,Reduce cycle time ,High precision & repeatability,it could make all kinds of plastic products

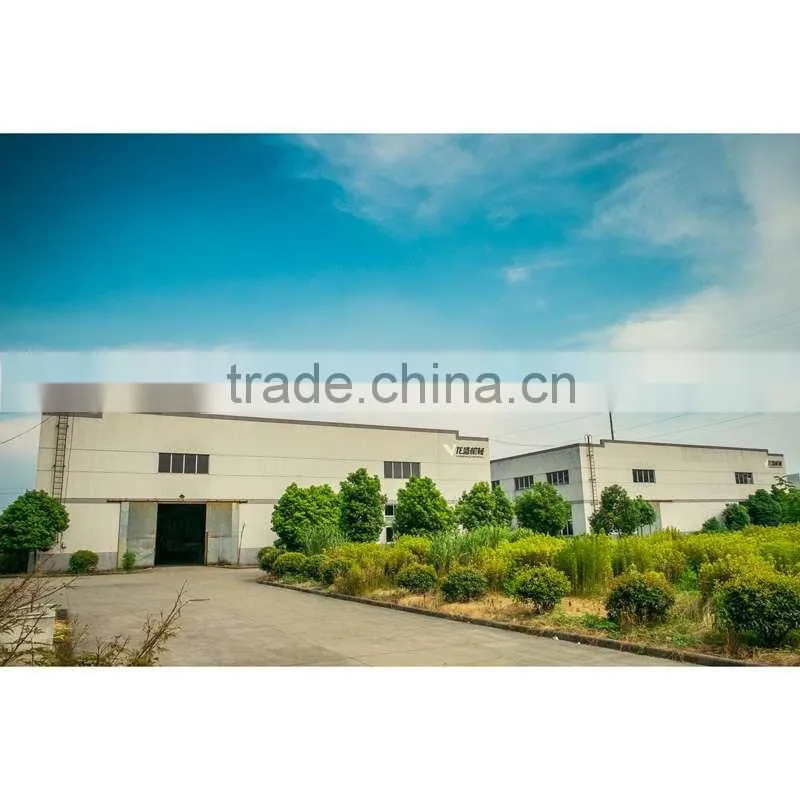

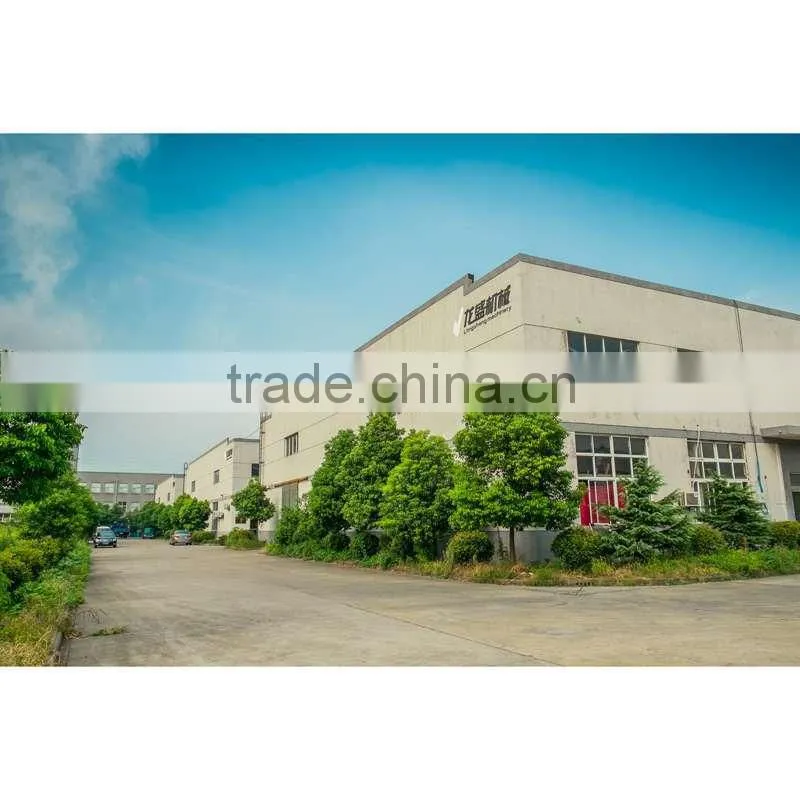

Founded in 2001,Changzhou Longsheng Machinery Co.Ltd
Is a professional manufacturer of LSF398 plastic pail injection molding machine and other injection machine s with the clamp force is from 68 ton to 1680ton .injection weight ranges from 60g to 10000g .
With all those advantages and leading technology implementation,LSF series injection molding machines are extremely suitable for the injection molding processing of many different types of plastic productssuch as precision electronics, telecommunication equipment, home appliances, toys, auto parts and so on.

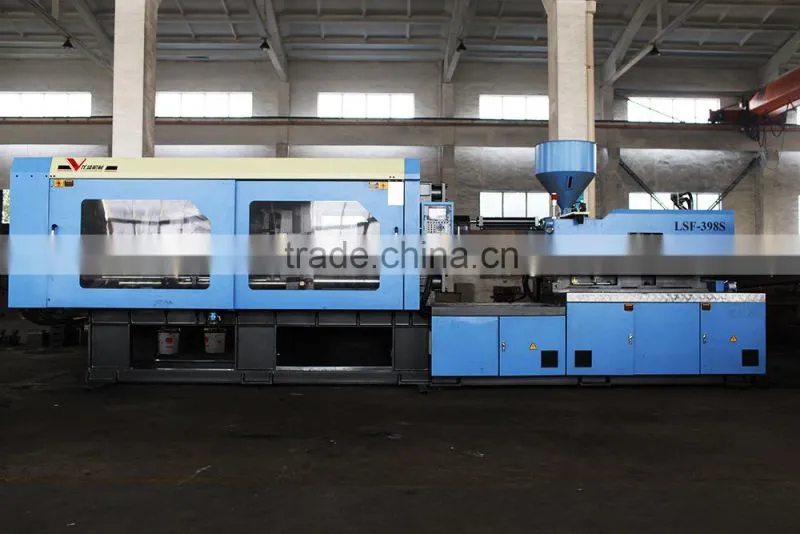

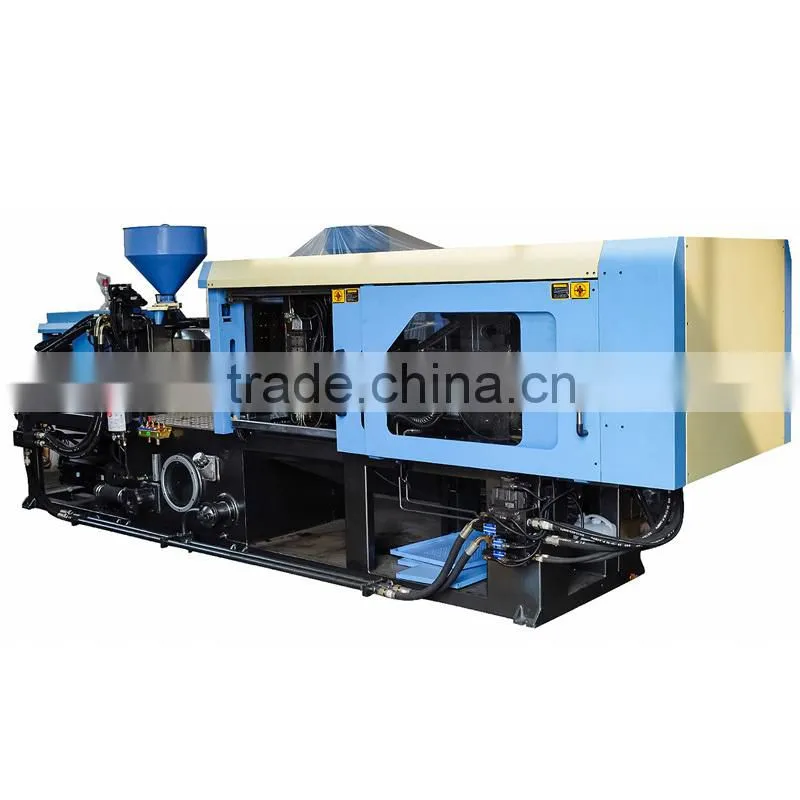

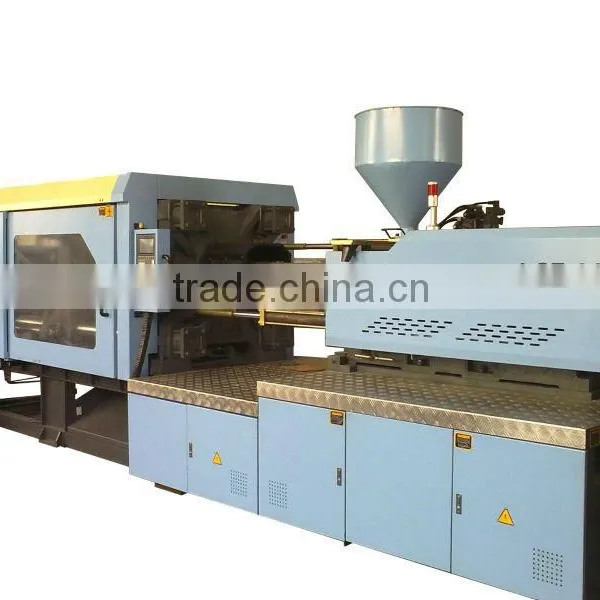

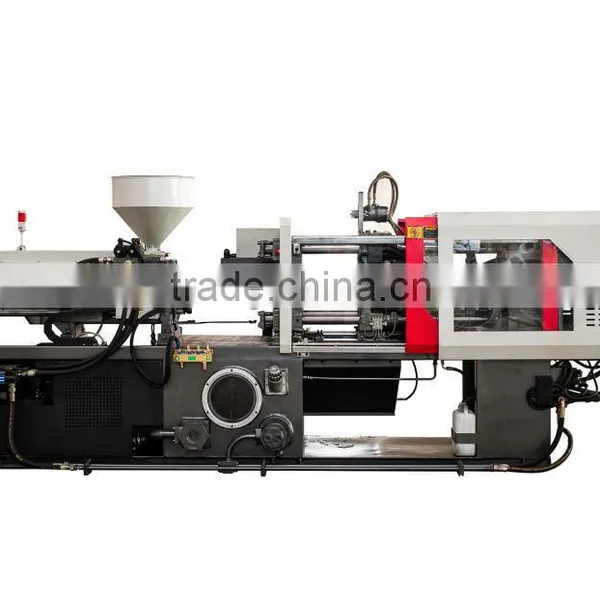

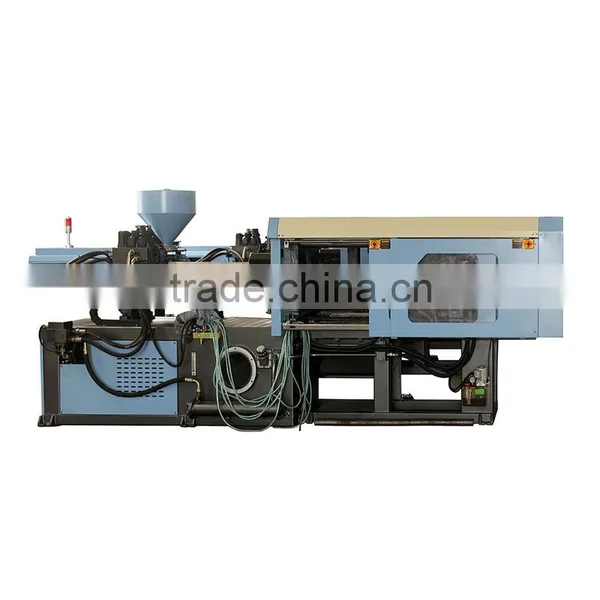

LSF398 plastic pail injection molding machine
We are a Chinese professional injection molding machine and mould manufacturer, providing four types of injection with clamping force ranging from 600KN to 32000KN and injection weight from 68g to 40570g.
We can provide you different Injection Molding Machines for lid.
Welcome to contact me for professtional solutions.
|
INJECTION UNIT |
|
Unit |
LSF-398 |
||
A |
B |
C |
|||
Screw Diameter |
Mm |
70 |
75 |
80 |
|
Screw L/D Ratio |
L/D |
21.4 |
20 |
18.8 |
|
Short Size |
Cm3 |
1385 |
1590 |
1809 |
|
Injection weight |
G |
1260 |
1447 |
1646 |
|
Injection Rate |
g/s |
310 |
356 |
405 |
|
Plasticizing capacity |
g/s |
60 |
65 |
70 |
|
Injection Pressure |
Mpa |
195 |
158 |
139 |
|
Screw Speed |
Rpm |
0-165 |
|||
|
CLAMPING UNIT |
Clamp Force |
KN |
3980 |
||
Space Between Tie Bars |
mm |
720*720 |
|||
Toggle Stroke |
mm |
700 |
|||
Max. Mold Height |
mm |
760 |
|||
Min. Mold Height |
mm |
280 |
|||
Ejector Stroke |
mm |
200 |
|||
Ejector Tonnage |
KN |
110 |
|||
Ejector Number |
P |
13 |
|||
|
OTHERS |
Max. pump Pressure |
Mpa |
16 |
||
Pump motor powder |
Kw |
37 |
|||
Heater Power |
Kw |
24.8 |
|||
Machine Dimension(L*W*H) |
M |
7.3*2.0*2.2 |
|||
Oil Tank Capacity |
L |
850 |
|||
Machine Weight |
T |
16 |
|||
