Specifications
Servo system,save electricity 60% ,Reduce cycle time ,High precision & repeatability,it could make all kinds of plastic products
Founded in 2001,Changzhou Longsheng Machinery Co.Ltd
Is a professional manufacturer of thermoplastic machine 398ton and other injection machines with the clamp force is from 68 ton to 1680ton .injection weight ranges from 60g to 10000g .
With all those advantages and leading technology implementation,LSF series injection molding machines are extremely suitable for the injection molding processing of many different types of plastic productssuch as precision electronics, telecommunication equipment, home appliances, toys, auto parts and so on.

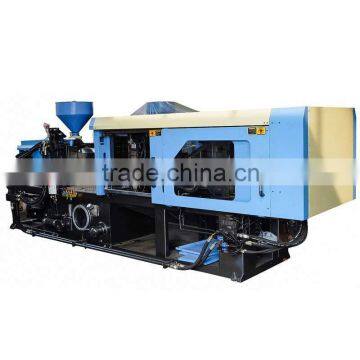

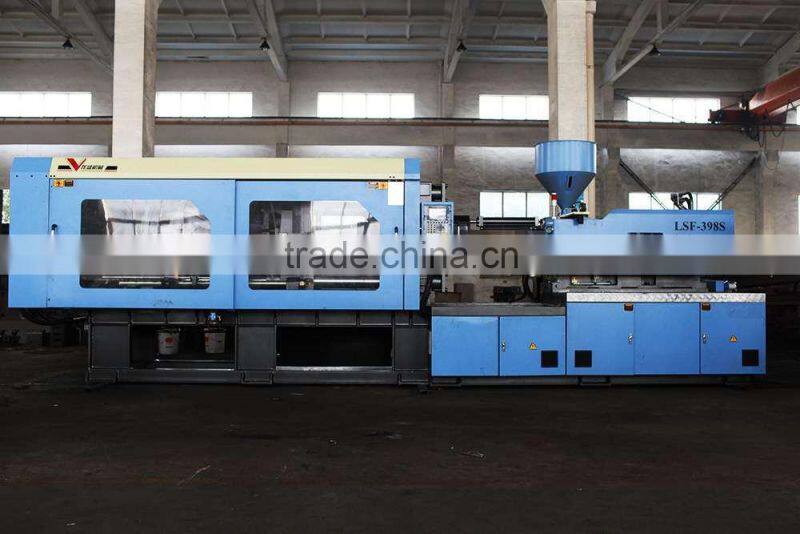

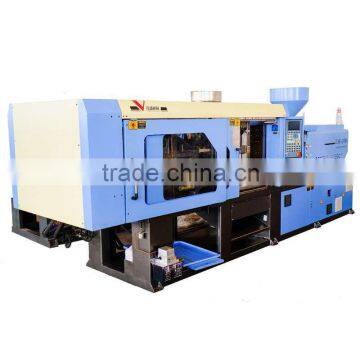

thermoplastic machine 398ton technical data:
|
INJECTION UNIT |
|
Unit |
LSF-398 |
||
A |
B |
C |
|||
Screw Diameter |
Mm |
70 |
75 |
80 |
|
Screw L/D Ratio |
L/D
|
||||
Q: What is the ability of your factory?
A: About injection molding machine, we could produce 60-80 sets machines per month.
Q: Do you have any technical supports about your products?
A: We have many agents in the world , like in Russia , in Egypt, in Iran and in UZ ,etc , which will give you on site technical support, Or we will send you our technical engineer to buyer’s factory for installation ,
Q: Do you have any other service about your products?
A: We have a lot of experience on making complete “Turn-Key” projects and specifications for our clients. Also we have a fixed service system
21.4
20
18.8
Short Size |
Cm3 |
1385 |
1590 |
1809 |
Injection weight |
G |
1260 |
1447 |
1646 |
Injection Rate |
g/s |
310 |
356 |
405 |
Plasticizing capacity |
g/s |
60 |
65 |
70 |
Injection Pressure |
Mpa |
195 |
158 |
139 |
Screw Speed |
Rpm |
0-165 |
CLAMPING UNIT |
Clamp Force |
KN |
3980 |
Space Between Tie Bars |
mm |
720*720 |
Toggle Stroke |
mm |
700 |
Max. Mold Height |
mm |
760 |
Min. Mold Height |
mm |
280 |
Ejector Stroke |
mm |
200 |
Ejector Tonnage |
KN |
110 |
Ejector Number |
P |
13 |
OTHERS |
Max. pump Pressure |
Mpa |
16 |
Pump motor powder |
Kw |
37 |
Heater Power |
Kw |
24.8 |
Machine Dimension(L*W*H) |
M |
7.3*2.0*2.2 |
Oil Tank Capacity |
L |
850 |
Machine Weight |
T |
16 |
||||||||||||||||||||||||||||||
