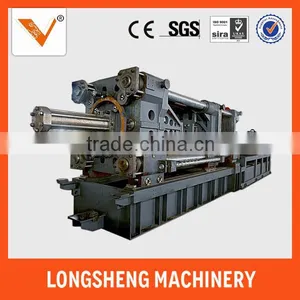

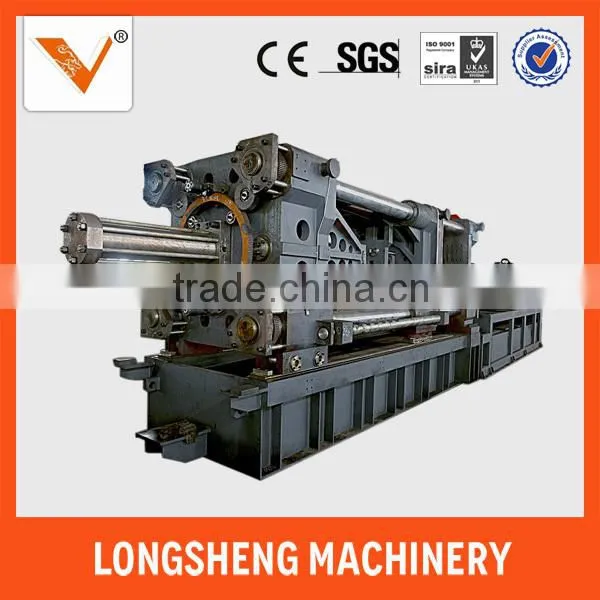

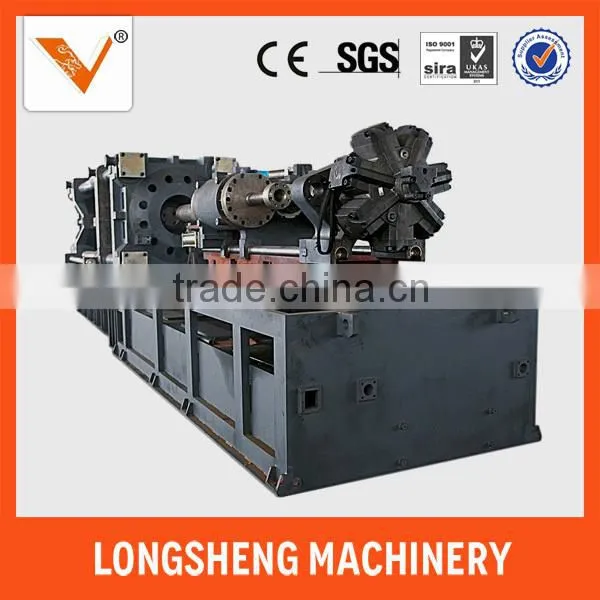

Help CenterEnergy Saving Plastic Injection Moulding Machine LSF208
Related Products
energy saving plastic injection moulding machine suitable for processing and injection of PE, PVC, PP, PS, ABS, PC, Nylon(PA), PU, PET, PMMA(ACRYLIC), POM, LDPE, HDPE, PPR and all other thermoplastic raw material. clamping force of LONGSHENG injection moulding machine is from 68 ton to 3200ton.
|
INJECTION UNIT |
|
Unit |
LSF-208 |
||
A |
B |
C |
|||
Screw Diameter |
Mm |
45 |
50 |
55 |
|
Screw L/D Ratio |
L/D |
22.2 |
20 |
18.2 |
|
Short Size |
Cm3 |
381 |
471 |
569 |
|
Injection weight |
G
|
347
|
428
|
518
|
|
Injection Rate |
g/s |
170 |
210 |
254 |
|
Plasticizing capacity |
g/s |
19 |
23.2 |
28.7 |
|
Injection Pressure |
Mpa |
229 |
186 |
154 |
|
Screw Speed |
Rpm |
0-190 |
|||
Injection Sroke |
mm |
240 |
|||
|
CLAMPING UNIT |
Clamp Force |
KN |
2080 |
||
Space Between Tie Bars |
mm |
510*510 |
|||
Toggle Stroke |
mm |
500 |
|||
Max. Mold Height |
mm |
530 |
|||
Min. Mold Height |
mm |
200 |
|||
Ejector Stroke |
mm |
150 |
|||
Ejector Tonnage |
KN |
62 |
|||
Ejector Number |
P |
5 |
|||
|
OTHERS |
Max. pump Pressure |
Mpa |
16 |
||
Pump motor powder |
Kw |
22 |
|||
Heater Power |
Kw |
14.25 |
|||
Machine Dimension(L*W*H) |
M |
5.3*1.5*1.95 |
|||
Machine Weight |
T |
6.9 |
|||
Oil Tank Capacity |
L |
380 |
|||
Control part:
1.It adopts imported computer for plastic injection machine , with large screen . high definiyion crystal display and human-computer interface in different languages. Through CPU independent control and individual treatment. It has raised the running speed of thr control system and alarming of successive oil temperature , thus I,proving the operating speed of the machine.
2.Closed –loop temperature control system to ensure the accuracy and reliability of the barrel temperature . The functions of cold –proof boot, alarming and parameter memory for the molding, with password protection. The injection and switch are controlled by imported ruler.
Injection part:
1.The excellent chrome , molybdenum and aluminum alloy screw and barrel have undergone the nitrilizing process, applicable to various plastic materials.
2.The injection cylinder(258T advanced) is parallel or balance for both sides of the barrel, so as to ensure the non-deviation of thr nozzle, good sealing and non-leadage. It is equipped with double guide pillar supporting system which can inject under multifarious pressure at various speeds. It also uses one-stop hydraulic pre-injection device.
Hydralic part:
It adopts the imported top quality hydraulic components, proportional control for pressure and flow.
Mouding-adjusment part:
Mold is adjusted by gear controlled by oil motor , the mold can be adjusted automatically in accordance with the setting pressure , which is both convenient and reliable.
Mold part

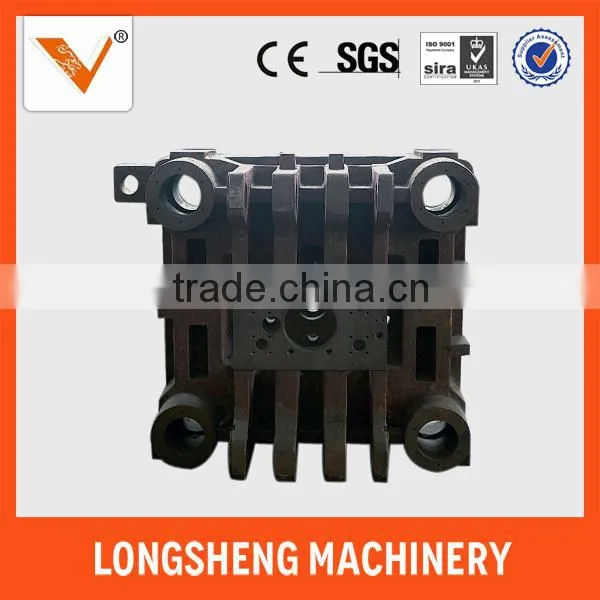

1.Five –fulcrum crankshaft structure , the mold and bracket structure together,with good rigidity and high-fitting precision, adopting the computerized optimized design. The mold employs finite element analysis, with double pulling and inserting device.
2.Perfroms thefunctions of super sensitive low pressure protection. The mechnical hydraulic and electrical protection have the human safety. The dismounable fill-out hopper can be installed conveniently and automatically.The moveable platen adopts a fixed durable vertical brace that is adjustable. With little friction and balanced dependable moving. Clamp opening is synchro with ejection
Packing: 1set in a wooden case
Payment: 30% deposit before production,70% before delivery
Good Quality: Strict quality control system .Good reputation in the market.
Fast Delivery: High efficiency forwarder,quality ,quantity and timely shipment.
Good Service: Our company provide one-stop service

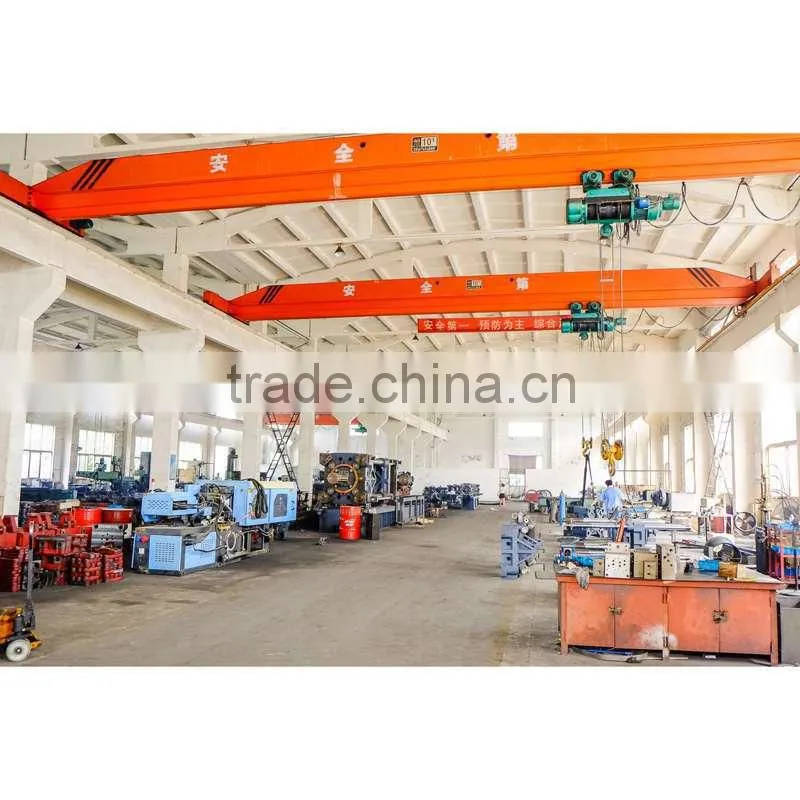

Changzhou Longsheng Machinery Co.Ltd specializes in producing high quality plastic machinery. We are one of the top manufacturers of plastic machinery in China and our main products in plastic injection machinery, blow molding machine ,injection mould , blowing moulds and some auxiliary equipment , Our machinery have CE Certificate
Many of our products have exported to Russia, Belarus, Iran, Singapore, Vietnam, Malaysia, Spain, Argentina, Brazil, more than 60 countries in the world.
