Specifications
Servo system,save electricity by 60% With longer working life ,Ceramic Heater Band for heating system heat preservation is good
TECHNICAL PARAMETER---LSF308
|
INJECTION UNIT |
|
Unit |
LSF-308 |
||
A |
B |
C |
|||
Screw Diameter |
Mm |
60 |
65 |
70 |
|
Screw L/D Ratio |
L/D |
21.6 |
20 |
18.6 |
|
Short Size |
Cm3 |
811 |
952 |
1104 |
|
Injection weight |
G |
738 |
866 |
1004 |
|
Injection Rate |
g/s |
177 |
206 |
239 |
|
Injection Pressure |
Mpa |
193 |
164 |
142 |
|
Screw Speed |
Rpm |
0-185 |
|||
|
CLAMPING UNIT |
Clamp Force |
KN |
3080 |
||
Space Between Tie Bars |
mm |
630X630 |
|||
Toggle Stroke |
mm |
590 |
|||
Max. Mold Height |
mm |
630 |
|||
Min. Mold Height |
mm |
200 |
|||
Ejector Stroke |
mm |
160 |
|||
Ejector Tonnage |
KN |
62 |
|||
Ejector Number |
P |
9 |
|||
|
OTHERS |
Max. pump Pressure |
Mpa |
16 |
||
Pump motor powder |
Kw |
30 |
|||
Heater Power |
Kw |
18 |
|||
Machine Dimension(L*W*H) |
M |
6.15X1.57X2 |
|||
Machine Weight |
T |
640 |
|||
Oil Tank Capacity |
L |
10.2 |
|||
INTRODUCTION :

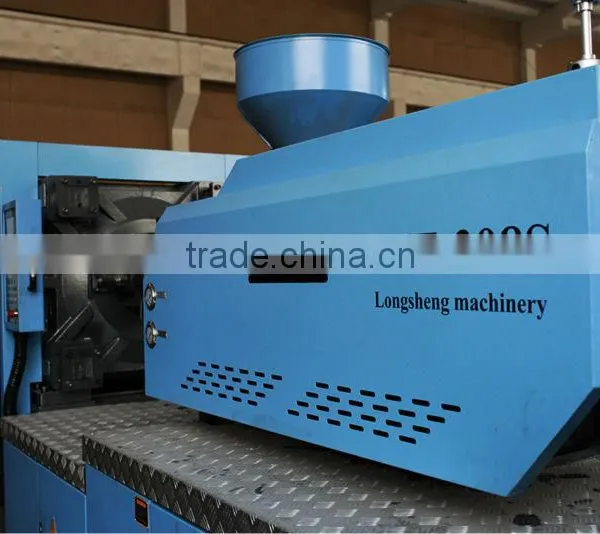

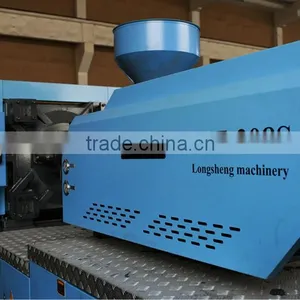

1.Reliable plastic injection machine with servo motor ,equiped with servo motor , closed loop control for pressure and flow .low noise,high precision and energy saving .
We design,manuafcture and supply our own brand of injection molding machine called "Longsheng" with clamping force ranged from 600kn to 16800kn, injection weight from 80g to 10000g, and can provide custom-built machine.
2.Inject all kinds of plastic parts, bottle preform, engineering plastic, UPVC, PVC, PE pipes fitting, pomponents for automotive, household, eletronics, telecommunication, ETC
