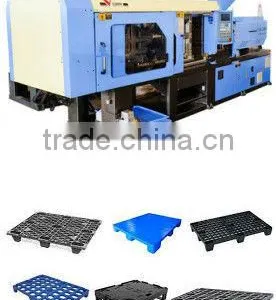

Help CenterPlastic Pallet Macking Machine
Related Products
-
Plastic Crate Making Machine (LSF-528)US$ 57,000 - 67,800MOQ: 1 Set -
Cooler Box Making Machine (LSF-825)US$ 50,000 - 100,000MOQ: 1 Set
-
398T Plastic Lamp Shade Making MachineUS$ 40,000 - 80,000MOQ: 1 Set
-
398T Plastic Waste Basket Making MachineUS$ 40,000 - 80,000MOQ: 1 Set
-
398T Plastic Shopping Basket Making MachineUS$ 40,000 - 80,000MOQ: 1 Set
Specifications
A) Energy savingB) Low noise
C) Low cost
D) Easy operating
E) High performance
Company Profile:
We are a Chinese professional injection molding machine manufacturer & exporter, providing four types of injection machine with clamping force ranging from 600KN to 32000KN and injection weight from 68g to 40570g. With more than 20 years experience, we can produce low energy consumption and high efficient machine.
Four types of injection machine:
A) Standard injection machine
B) Synchronized injection machine: ejecting is synchronized with mould opening, could improve production efficiency by 20%.
C) Energy saving machine: includes injection machine with servo motor, injection machine with variable pump.
D) High speed injection machine: HP Nitrogen assists injection and injection speed could be 2 to 5 times of ordinary type.
Important features:
A) Clamping Unit:
Five points double toggle mould clamping mechanism is featured with fast opening & clamping, stable & energy saving.
Reliable low pressure protection function greatly prolongs the service life of the mould.
Mechanical & double electric interlock protection devices guarantee the safety of the operators.
B) Injection Unit:
Infection platform is fixed by double axis pin plus flat key so that it is stable.
Double cylinder balance infection molten material mechanism provides high-pressure injection of molten material & safe space.
C) Features of hydraulic system:
Perfect combination between computer & high efficient proportional plunger variable pump saves electricity by 25%-50%.
D) Controller:
Six stages material injection speeds & pressure, three stages pressure holding speed & pressure, and two stages material molten speed & pressure control can meet all complicated process requirement of products.
Fuzzy temperature control is used. High & low temperature deviation alarm & thermocouple disconnection inspection functions are available.
Service:
A) Before sales service:
Our sales and technical team can provide the plastic mould design and relevant parameter suggestions to help them decide the most suitable machine.
B) During sales service:
We help customer to make the workshop display, such as electricity line and cooling water installation and provide free operating training.
C) After sales service:
Our engineers will help customer to install and debug the plastic molding machine. During the 1 year guarantee time, we offer all the damaged parts free of charge.
|
INJECTION UNIT |
|
Unit |
LSF-528 |
|||
A |
B |
C |
D |
|||
Screw Diameter |
Mm |
75 |
80 |
85 |
90 |
|
Screw L/D Ratio |
L/D |
23 |
21.2 |
20 |
18.9 |
|
Short Size |
Cm3 |
1854 |
2110 |
2382 |
2670 |
|
Injection weight |
G |
1687 |
1920 |
2167 |
2430 |
|
Injection Rate |
g/s |
426 |
456 |
484 |
514 |
|
Plasticizing capacity |
g/s |
54.2 |
59.3 |
60.3 |
68.5 |
|
Injection Pressure |
Mpa |
191 |
168 |
149 |
133 |
|
Screw Speed |
Rpm |
0-150 |
||||
|
CLAMPING UNIT |
Clamp Force |
KN |
5280 |
|||
Space Between Tie Bars |
mm |
810*810 |
||||
Toggle Stroke |
mm |
800 |
||||
Max. Mold Height |
mm |
850 |
||||
Min. Mold Height |
mm |
350 |
||||
Ejector Stroke |
mm |
210 |
||||
Ejector Tonnage |
KN |
158 |
||||
Ejector Number |
P |
17 |
||||
|
OTHERS |
Max. pump Pressure |
Mpa |
16 |
|||
Pump motor powder |
Kw |
55 |
||||
Heater Power |
Kw |
27.4 |
||||
Machine Dimension(L*W*H) |
M |
8.1*2.2*2.6 |
||||
Machine Weight |
T |
22 |
||||
