Specifications
Plastic Crate Making machineA) Energy saving
B) Low noise
C) Low cost
D) Easy operating

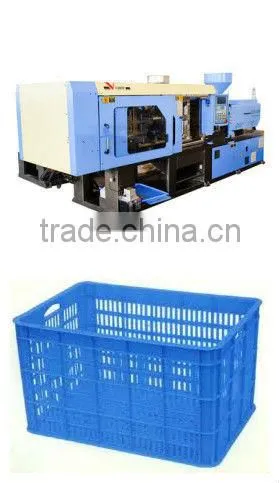

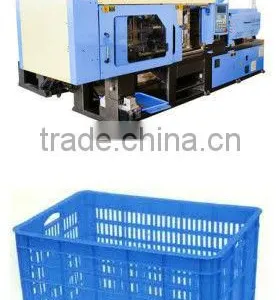

Plastic Crate Making machine:
We are a Chinese professional injection molding machine and mould manufacturer.
We can produce different injection mould machines for crate.
Welome to contact us for professtional solutions.
Four types of injection machine:
A) Standard injection machine
B) Synchronized injection machine: ejecting is synchronized with mould opening, could improve production efficiency by 20%.
C) Energy saving machine: includes injection machine with servo motor, injection machine with variable pump.
D) High speed injection machine: HP Nitrogen assists injection and injection speed could be 2 to 5 times of ordinary type.
Important features:
A) Clamping Unit:
Five points double toggle mould clamping mechanism is featured with fast opening & clamping, stable & energy saving.
Reliable low pressure protection function greatly prolongs the service life of the mould.
Mechanical & double electric interlock protection devices guarantee the safety of the operators.
B) Injection Unit:
Infection platform is fixed by double axis pin plus flat key so that it is stable.
Double cylinder balance infection molten material mechanism provides high-pressure injection of molten material & safe space.
C) Features of hydraulic system:
Perfect combination between computer & high efficient proportional plunger variable pump saves electricity by 25%-50%.
D) Controller:
Six stages material injection speeds & pressure, three stages pressure holding speed & pressure, and two stages material molten speed & pressure control can meet all complicated process requirement of products.
Fuzzy temperature control is used. High & low temperature deviation alarm & thermocouple disconnection inspection functions are available.
Service:
A) Before sales service:
Our sales and technical team can provide the plastic mould design and relevant parameter suggestions to help them decide the most suitable machine.
B) During sales service:
We help customer to make the workshop display, such as electricity line and cooling water installation and provide free operating training.
C) After sales service:
Our engineers will help customer to install and debug the plastic molding machine. During the 1 year guarantee time, we offer all the damaged parts free of charge.
|
INJECTION UNIT |
|
Unit |
LSF-528 |
|||
A |
B |
C |
D |
|||
Screw Diameter |
Mm |
75 |
80 |
85 |
90 |
|
Screw L/D Ratio |
L/D |
23 |
21.2 |
20 |
18.9 |
|
Short Size |
Cm3 |
1854 |
2110 |
2382 |
2670 |
|
Injection weight |
G |
1687 |
1920 |
2167 |
2430 |
|
Injection Rate |
g/s |
426 |
456 |
484 |
514 |
|
Plasticizing capacity |
g/s |
54.2 |
59.3 |
60.3 |
68.5 |
|
Injection Pressure |
Mpa |
191 |
168 |
149 |
133 |
|
Screw Speed |
Rpm |
0-150 |
||||
|
CLAMPING UNIT |
Clamp Force |
KN |
5280 |
|||
Space Between Tie Bars |
mm |
810*810 |
||||
Toggle Stroke |
mm |
800 |
||||
Max. Mold Height |
mm |
850 |
||||
Min. Mold Height |
mm |
350 |
||||
Ejector Stroke |
mm |
210 |
||||
Ejector Tonnage |
KN |
158 |
||||
Ejector Number |
P |
17 |
||||
|
OTHERS |
Max. pump Pressure |
Mpa |
16 |
|||
Pump motor powder |
Kw |
55 |
||||
Heater Power |
Kw |
27.4 |
||||
Machine Dimension(L*W*H) |
M |
8.1*2.2*2.6 |
||||
Machine Weight |
T |
22 |
||||
