Small Plastic Injection Machine LSF68
US$ 11,950 - 11,950
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Preform Injection
Style:
Horizontal
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Preform Injection
Style
Horizontal
Brand Name
LONGSHUN
Model Number
LSF68
Place of Origin
Jiangsu, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
62-107gr
Injection Rate
60-103gr/s
Clamping Force
680KN
Opening Stroke
285mm
Power(W)
6kw
Certification
iso9001, SGS
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
durable & stableimported spare parts
better prices & services
one year guarantee
make all kinds of small parts

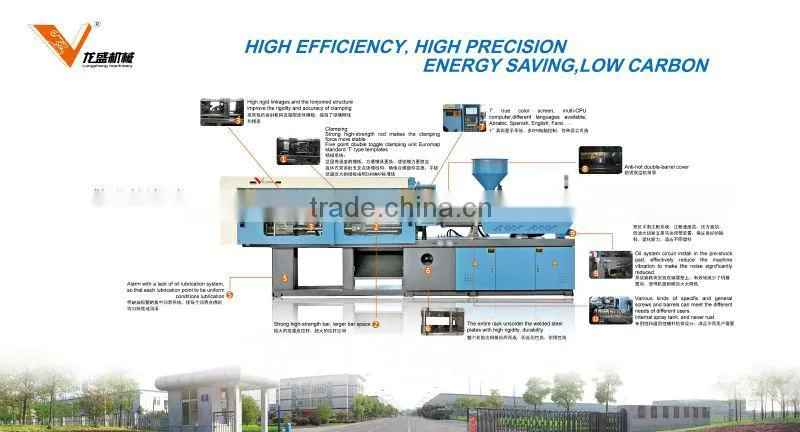

small plastic injection machine LSF68
We are professional manufactuer of injection molding machine more than 15 years , machines export to Canada,USA,South Africa, Russia,Nigera etc more than 20 countries.
Our strong technical team always offer timely and professional services which will give you technology and production support.
Welcome contact us for more details and professional services.
parameters of plastic injection machine LSF68
| INJECTION UNIT | item | unit | LSF68 | ||
| A | B | C | |||
| screw diameter | mm | 26 | 30 | 34 | |
| screw L/D ratio | L/D | 24 | 21 | 19 | |
| theoretical shot size | cm3 | 69 | 92 | 118 | |
| injection weight | g | 62 | 83 | 107 | |
| Injection rate | g/s | 60 | 80 | 103 | |
| Plasticizing capacity | g/s | 6.3 | 8.4 | 10.3 | |
| Injection pressure | Mpa | 236 | 177 | 138 | |
| Screw speed | rpm | 220 | |||
| CLAMPING UNIT | Clamp force | KN | 680 | ||
| Space between tie bars | mm | 310*310 | |||
| Toggle stroke | mm | 285 | |||
| Max. mold height | mm | 330 | |||
| Min. mold height | mm | 100 | |||
| Ejector stroke | mm | 70 | |||
| Ejector tonnage | KN | 22 | |||
| Ejector number | p | 1 | |||
| OTHERS | Max.pump pressure | Mpa | 16 | ||
| Pump motor power | KW | 7.5 | |||
| Heater power | KW | 5.1 | |||
| Machine dimension | m | 3.7*1.02*1.81 | |||
| Machine weight | t | 2.7 | |||
