Home > Manufacturing & Processing Machinery > Plastic Machinery > Injection Molding Machine > Lid Injection Moulding Machine LSF258

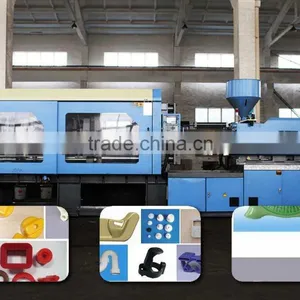

Lid Injection Moulding Machine LSF258
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Tube Head Injection
Style:
Horizontal
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Tube Head Injection
Style
Horizontal
Brand Name
LONGSHUN
Model Number
LSF258
Place of Origin
Jiangsu, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
610g
Injection Rate
146g/s
Clamping Force
2580KN
Opening Stroke
505mm
Power(W)
13.3kw
Certification
ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
lid injection moulding machine:double-cylinder balance injection,multi-stage pressure and velocity injection adjusting
parameters of lid injection moulding machine LSF258
| INJECTION UNIT | item | unit | LSF258 | ||
| A | B | C | |||
| screw diameter | mm | 50 | 55 | 60 | |
| screw L/D ratio | L/D | 24 | 21.8 | 20 | |
| theoretical shot size | cm3 | 504 | 610 | 726 | |
| injection weight | g | 459 | 555 | 661 | |
| Injection rate | g/s | 121 | 146 | 174 | |
| Plasticizing capacity | g/s | 32 | 41 | 49 | |
| Injection pressure | Mpa | 223 | 184 | 155 | |
| Screw speed | rpm | 0-190 | |||
| CLAMPING UNIT | Clamp force | KN | 2580 | ||
| Space between tie bars | mm | 560*530 | |||
| Toggle stroke | mm | 505 | |||
| Max. mold height | mm | 560 | |||
| Min. mold height | mm | 200 | |||
| Ejector stroke | mm | 150 | |||
| Ejector tonnage | KN | 62 | |||
| Ejector number | p | 9 | |||
| OTHERS | Max.pump pressure | Mpa | 16 | ||
| Pump motor power | KW | 22 | |||
| Heater power | KW | 16 | |||
| Machine dimension | m | 5.3*1.5*1.95 | |||
| Machine weight | t | 7.1 | |||
