plastic toy injection molding machine
- 50 Set / Sets per Month
- SHANG HAI
- T/T Credit Card
Product Details
Condition: | New | Type: | Other, injection molding | Style: | Horizontal |
Brand Name: | LONGSHENG | Model Number: | LSF68 | Place of Origin: | Jiangsu, China |
Plastic Type: | Other, thermoplast & thermosetting | Automatic: | Yes | Injection Weight: | 62-107g |
Injection Rate: | 60-103g/s | Clamping Force: | 680KN | Opening Stroke: | 285mm |
Power(W): | 6kw | Certification: | ISO9001,SGS | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Nude package
Product Description
Specifications
Energy saving, multicavitylonger working life
Ceramic Heaters
better prices&services
fast cycle time, low waste

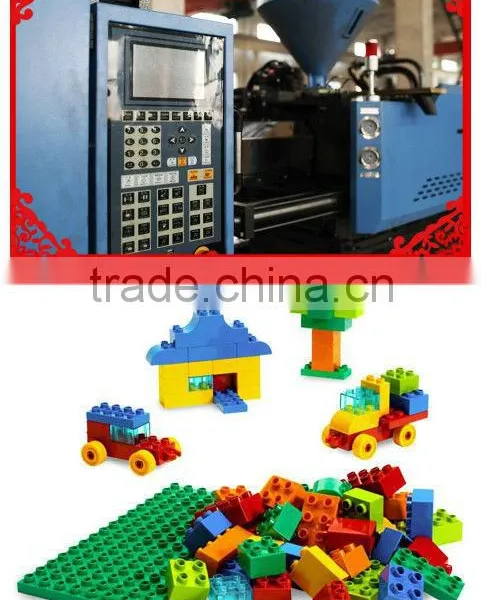

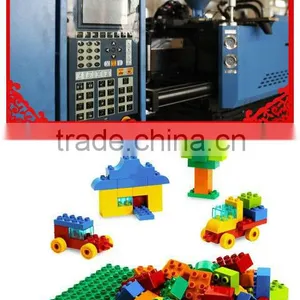

plastic toy injection molding machine
We are professional manufacturer & exporter a wide range of hydraulic automatic injection molding machines over 20 years, clamping force from 600 to 32000KN, injection weight from 68g to 40570g. our machines are known for the features like durability & sturdy construction.
Welcome contact us for more details.
TECHNICAL PARAMETER---LSF-68
INJECTION UNIT | Unit | LSF-68 | |||
A | B | C | |||
Screw Diameter | Mm | 26 | 30 | 34 | |
Screw L/D Ratio | L/D | 24 | 21 | 19 | |
Short Size | Cm3 | 69 | 92 | 118 | |
Injection weight | G | 62 | 83 | 107 | |
Injection Rate | g/s | 60 | 80 | 103 | |
Plasticizing capacity | g/s | 6.3 | 8.4 | 10.3 | |
Injection Pressure | Mpa | 236 | 177 | 138 | |
Screw Speed | Rpm | 0-220 | |||
CLAMPING UNIT | Clamp Force | KN | 680 | ||
Space Between Tie Bars | mm | 310*310 | |||
Toggle Stroke | mm | 285 | |||
Max. Mold Height | mm | 330 | |||
Min. Mold Height | mm | 100 | |||
Ejector Stroke | mm | 70 | |||
Ejector Tonnage | KN | 22 | |||
Ejector Number | P | 1 | |||
OTHERS | Max. pump Pressure | Mpa | 16 | ||
Pump motor powder | Kw | 7.5 | |||
Heater Power | Kw | 5.1 | |||
Machine Dimension(L*W*H) | M | 3.7*1.02*1.81 | |||
Oil Tank Capacity | L | 180 | |||
Machine Weight | T | 2.5 |
INTRODUCTION :
1.Reliable plastic injection machine with servo motor ,equiped with servo motor , closed loop control for pressure and flow .low noise,high precision and energy saving .
We design,manuafcture and supply our own brand of injection molding machine called "Longsheng" with clamping force ranged from 600kn to 16800kn, injection weight from 80g to 10000g, and can provide custom-built machine.
2.Inject all kinds of plastic parts, bottle preform, engineering plastic, UPVC, PVC, PE pipes fitting, pomponents for automotive, household, eletronics, telecommunication, ETC
Company Profile
Changzhou Longsheng Machinery Co., Ltd. (Longsheng) is located at Zhonglou Science and Technology Industry Park of Changzhou. We mainly produce and sell plastic injection molding machines, with high technology and reliable quality. Our products are selling well all over the world. We compare price with the same quality, while comparing quality with the same price, and compare service with the same quality and price, so as to improve our management. We always integrate optimized designs with manufacture and good sales service together. We utilize 24 hours networking for sales services. All lifecycle services for products and smile are our characteristics.
Ways to success start from Longsheng. With strong capability, Longsheng is devoted to building a brand name - Longsheng Machinery Series. The clamp force of our machines ranges from 600KN to 16800KN, and shot weight ranges from 63g to 10,000g. Our plastic injection molding machines are widely applied in the areas of automobile, mechanical, chemical, and electrical industries, daily supplies, and toys.
With good quality, professional services and sincere credit, Longsheng can go along with new and old clients, to realize the complementary of each other's advantages, resource sharing and mutual benefits. We can try to create a prosperous future with our customers as we always do.
