Specifications

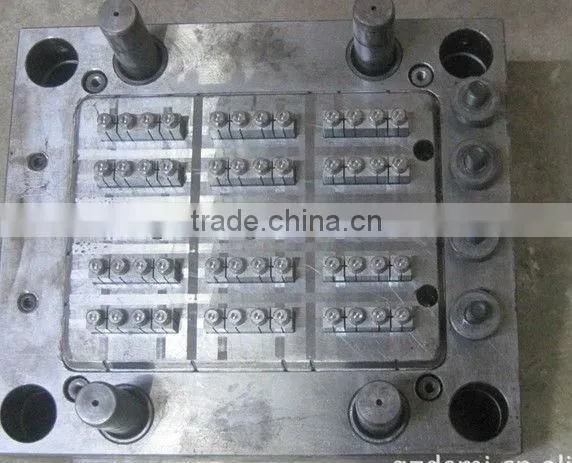

Energy saving, multicavitylonger working life
Ceramic Heaters
better prices&services
fast cycle time, low waste

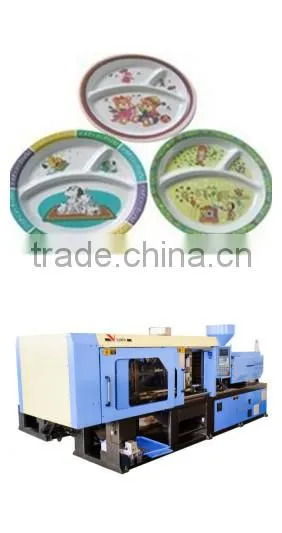

precision and durable plastic injection machine
We are professional manufacturer & exporter a wide range of hydraulic automatic injection molding machines over 20 years, clamping force from 600 to 32000KN, injection weight from 68g to 40570g. our machines are known for the features like durability & sturdy construction.
Different model of machine for different production requirements, welcome contact us for more information.
TECHNICAL PARAMETER---LSF-68
|
INJECTION UNIT |
Unit |
LSF-68 |
|||
A |
B |
C |
|||
Screw Diameter |
Mm |
26 |
30 |
34 |
|
Screw L/D Ratio |
L/D |
24 |
21 |
19 |
|
Short Size |
Cm3 |
69 |
92 |
118 |
|
Injection weight |
G |
62 |
83 |
107 |
|
Injection Rate |
g/s |
60 |
80 |
103 |
|
Plasticizing capacity |
g/s |
6.3 |
8.4 |
10.3 |
|
Injection Pressure |
Mpa |
236 |
177 |
138 |
|
Screw Speed |
Rpm |
0-220 |
|||
|
CLAMPING UNIT |
Clamp Force |
KN |
680 |
||
Space Between Tie Bars |
mm |
310*310 |
|||
Toggle Stroke |
mm |
285 |
|||
Max. Mold Height |
mm |
330 |
|||
Min. Mold Height |
mm |
100 |
|||
Ejector Stroke |
mm |
70 |
|||
Ejector Tonnage |
KN |
22 |
|||
Ejector Number |
P |
1 |
|||
|
OTHERS |
Max. pump Pressure |
Mpa |
16 |
||
Pump motor powder |
Kw |
7.5 |
|||
Heater Power |
Kw |
5.1 |
|||
Machine Dimension(L*W*H) |
M |
3.7*1.02*1.81 |
|||
Oil Tank Capacity |
L |
180 |
|||
Machine Weight |
T |
2.5 |
|||
INTRODUCTION :
1.Reliable plastic injection machine with servo motor ,equiped with servo motor , closed loop control for pressure and flow .low noise,high precision and energy saving .
We design,manuafcture and supply our own brand of injection molding machine called "Longsheng" with clamping force ranged from 600kn to 16800kn, injection weight from 80g to 10000g, and can provide custom-built machine.
2.Inject all kinds of plastic parts, bottle preform, engineering plastic, UPVC, PVC, PE pipes fitting, pomponents for automotive, household, eletronics, telecommunication, ETC
