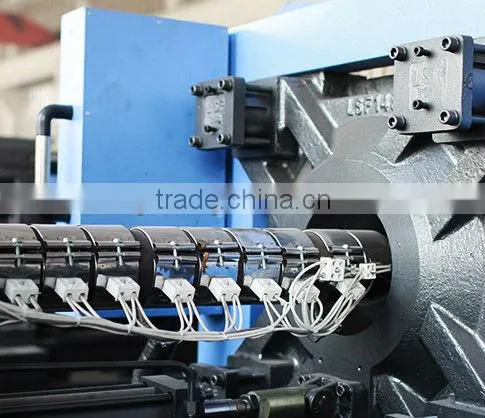

Small Cup Injection Molding Machine
US$ 21,000 - 21,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, injection molding
Style:
Horizontal
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small Daily Used Cup Injection Molding MachineUS$ 21,000 - 21,000MOQ: 1 Set -
Small Capacity Cup Injection Molding MachineUS$ 21,000 - 21,000MOQ: 1 Set
-
Aerial Cup Injection Molding MachineUS$ 21,000 - 21,000MOQ: 1 Set
-
Aero Cup Injection Molding MachineUS$ 21,000 - 21,000MOQ: 1 Set
-
Aviatic Cup Injection Molding MachineUS$ 21,000 - 21,000MOQ: 1 Set
Condition
New
Type
Other, injection molding
Style
Horizontal
Brand Name
Longsheng
Model Number
LSF208
Place of Origin
Jiangsu, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
347-518gr
Injection Rate
170-257g/s
Clamping Force
208T
Opening Stroke
500mm
Power(W)
15kw
Certification
ISO9001 SGS
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
injection weight:274-428grclamp force:2080KN
tie bar sizes:510*510mm
energy saving

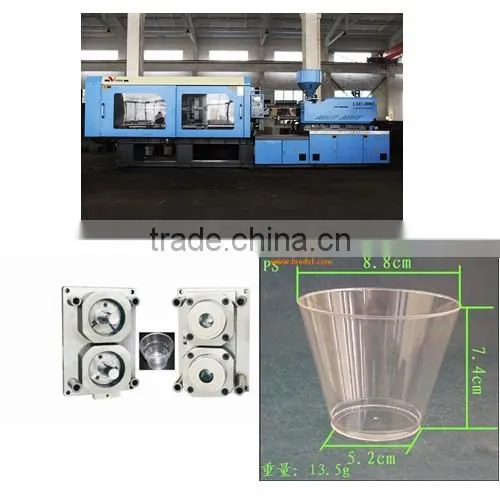

The machine can make different size cups
small cup injection molding machine small cup injection molding machine ,
We are professional manufacturer of small cup injection molding machine , clamping from 600 to 32000KN, weight from 68g to 40570g can make different cups.
Machine type:
1) servo energy-saving
2)variable pump
3) high speed etc
suitable for all kinds of plastic products production.
|
INJECTION UNIT |
|
Unit |
LSF-208 |
||
A |
B |
C |
|||
Screw Diameter |
Mm |
45 |
50 |
55 |
|
Screw L/D Ratio |
L/D |
22.2 |
20 |
18.2 |
|
Short Size |
Cm3 |
381 |
471 |
569 |
|
Injection weight |
G |
347 |
428 |
518 |
|
oz |
12.2 |
15.1 |
18.2 |
||
Injection Rate |
g/s |
170 |
210 |
254 |
|
Plasticizing capacity |
g/s |
19 |
23.2 |
28.7 |
|
Injection Pressure |
Mpa |
229 |
186 |
154 |
|
Screw Speed |
Rpm |
0-190 |
|||
Injection Sroke |
mm |
240 |
|||
|
CLAMPING UNIT |
Clamp Force |
KN |
2080 |
||
Space Between Tie Bars |
mm |
510*510 |
|||
Toggle Stroke |
mm |
500 |
|||
Max. Mold Height |
mm |
530 |
|||
Min. Mold Height |
mm |
200 |
|||
Ejector Stroke |
mm |
150 |
|||
Ejector Tonnage |
KN |
62 |
|||
Ejector Number |
P |
5 |
|||
|
OTHERS |
Max. pump Pressure |
Mpa |
16 |
||
Pump motor powder |
Kw |
18.5 |
|||
Heater Power |
Kw |
14.25 |
|||
Machine Dimension(L*W*H) |
M |
5.3*1.4*1.95 |
|||
Machine Weight |
T |
6.9 |
|||
Oil Tank Capacity |
L |
380 |
|||
Hopper Volume |
Kg |
50 |
|||
