Home > Manufacturing & Processing Machinery > Plastic Machinery > Injection Molding Machine > High Speed Injection Moulding Machine for Food Containers

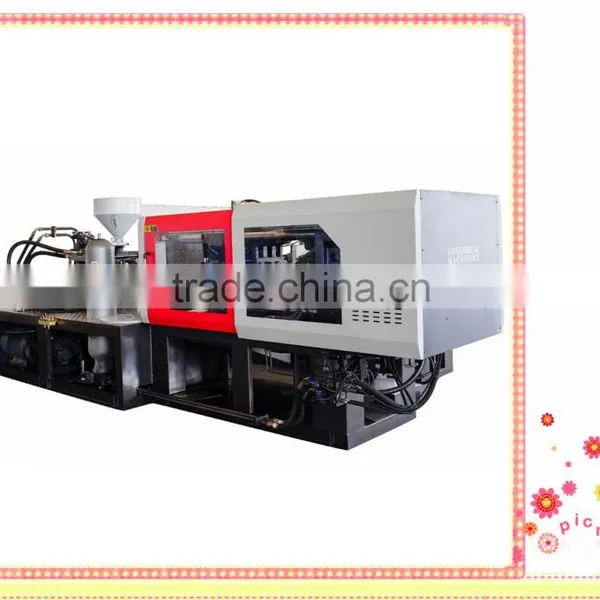

High Speed Injection Moulding Machine for Food Containers

Name: High Speed Injection Moulding Machine for Food Containers
Brand: LONGSHUN
SKU: 103359615
Availability: InStock

High Speed Injection Moulding Machine for Food Containers thumbnail-1

High Speed Injection Moulding Machine for Food Containers photo-1

US$ 12,580 - 39,850 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Injection Blow Molding

Style:

Horizontal

Contact Supplier Request Quote Chat Now

Changzhou Longsheng Machinery Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Injection Blow Molding

Style Horizontal

Brand Name LONGSHUN

Model Number LSF-308

Place of Origin Jiangsu, China

Plastic Type Thermosetting

Automatic Yes

Injection Weight 738-1004g

Injection Rate 177-239g/s

Clamping Force 3080KN

Opening Stroke 590mm

Power(W) 15kw

Certification ISO9001,SGS

After-sales Service Provided Engineers available to service machinery overseas

Specifications

different sizes & weight of containers
one or multicavity,OEM molds
energy saving,imported spare parts
better price&services

high speed injection moulding machine for food containers

We are professional manufacturer of Injection Molding Machine, clamping from 600 to 32000KN, weight from 68g to 40570g, different model for different production requirements, welcome contact us for more details and professional services.

Specification of LSF-308;

INJECTION UNIT		Unit	LSF-308
		Unit	A	B	C
	Screw Diameter	Mm	60	65	70
	Screw L/D Ratio	L/D	21.6	20	18.6
	Short Size	Cm3	811	952	1104
	Injection weight	G	738	866	1004
	Injection Rate	g/s	177	206	239
	Plasticizing capacity	g/s	41	49	57
	Injection Pressure	Mpa	193	164	142
	Screw Speed	Rpm	0-185
CLAMPING UNIT	Clamp Force	KN	3080
	Space Between Tie Bars	mm	630*630
	Toggle Stroke	mm	590
	Max. Mold Height	mm	630
	Min. Mold Height	mm	200
	Ejector Stroke	mm	160
	Ejector Tonnage	KN	62
	Ejector Number	P	9
OTHERS	Max. pump Pressure	Mpa	16
	Pump motor powder	Kw	30
	Heater Power	Kw	18
	Machine Dimension(LWH)	M	6.151.572
	Machine Weight	T	10.2

Some of the important features:

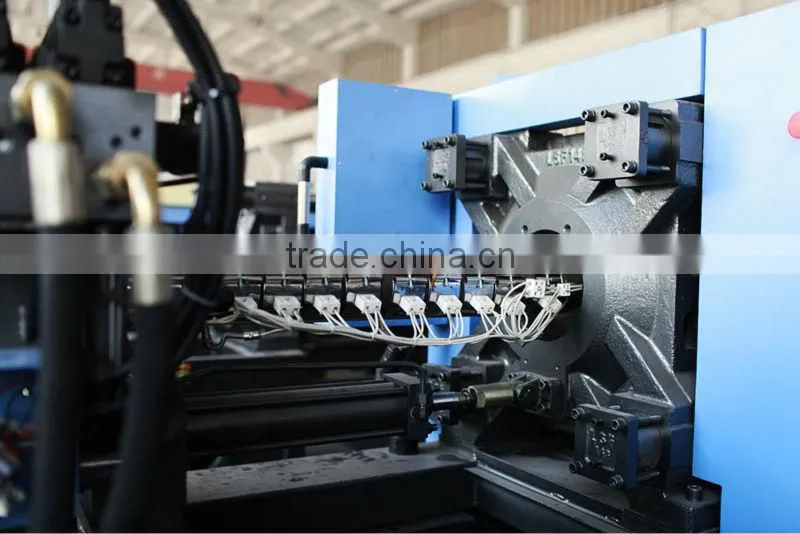

Clamping system: Faster response, steable and high rigidity
Injection system: Accurate and flexible, lower rejection rate

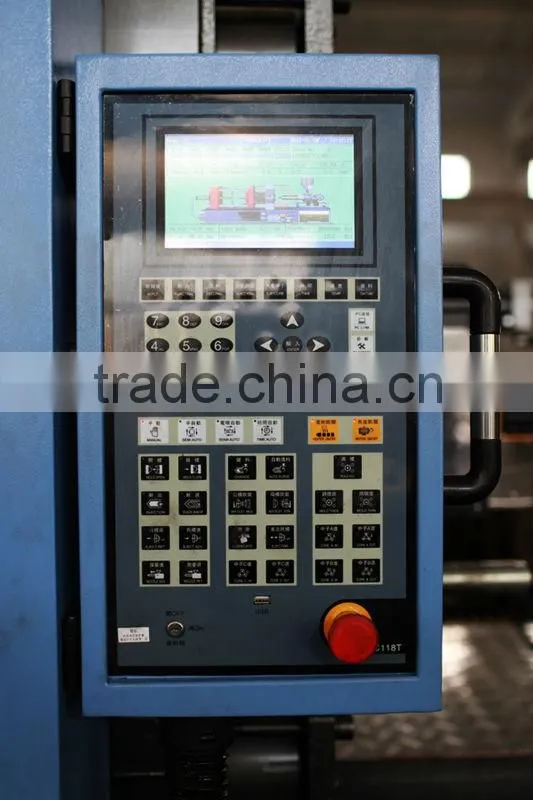

Control system: Computer and simple operation,molding data memory system
Power system: Energy saving, high efficient and precise
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.

Other Information

Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil,good for pump and valves
Long working life: Imported spare parts and updated version
Aftersales service: Professional & timely
Delivery time:30-60 days
Port of dispatch: Shanghai
