Summary of air insulated high-voltage switchgear cubicle switchgear :
XGN36-12( DXG-12) switchgear is a new miniaturization power network equipment which introduced advanced technology and combine with our company real condition. With excellence of high grade, complete parameter, low price, few maintenance. It applies to 3.6~12kV three phase AC 50/60Hz single busbar or busbar sectional system for receiving and distribution power energy. It can widely used for electric power, metallurgy, petrifaction and urban construction.

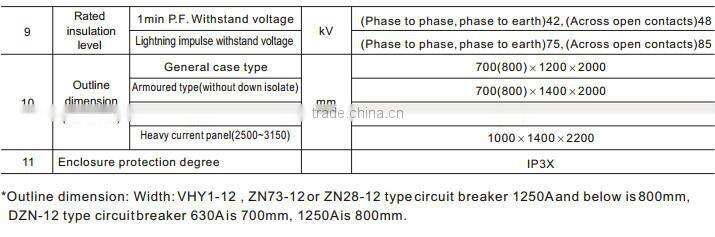

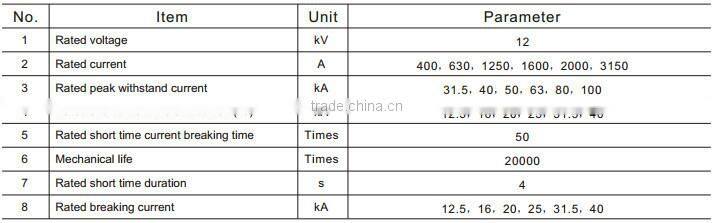

Technical Specification of air insulated high-voltage switchgear cubicle switchgear :

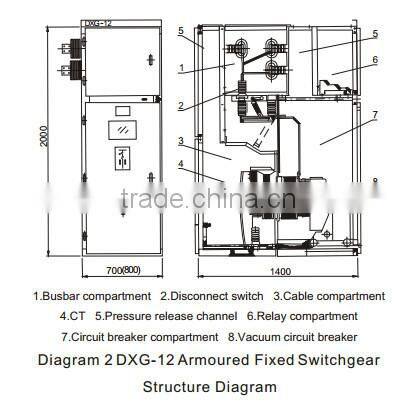

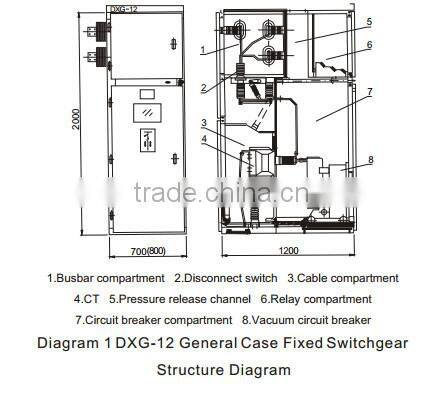

Structure of air insulated high-voltage switchgear cubicle switchgear :
Ambient Condition of air insulated high-voltage switchgear cubicle switchgear :
1. Ambient temperature: -10℃ ~+40℃ ;
2. Altitude: ≤1000m;
3. Relative humidity: daily average ≤95 %, monthly average 90% ;
4. Earthquake intensity: ≤ 8 degree;
5. Applicable occasions should be free from inflammable, explosives and severe vibration.
Product Feature of air insulated high-voltage switchgear cubicle switchgear :
1. The panel is novel and complete function, not only with fixed panel isolate live busbar feature, but also convenient for maintenance, easily to exchange circuit breaker, thereby assure of maintaining safely and conveniently, meanwhile, choose primary plug in contact.
2. Main switch is miniaturization vacuum circuit breaker(introduce advanced technology). Choose large creeping distance porcelain enclosure vacuum arc extinction chamber, adopt air insulation. It suitable for rural net work reconstruction and industrial enterprise specially, equipped with miniaturization disconnect switch, double functions for main knife switch and earthing switch, gear drive type.
3. Panel is combination type, without welding, without deformation, miniaturization volume. With reliable "five protection" interlock function, compulsive mechanical interlock on rear and front door.
Certifications:
Cooperation Projects:
Company Pict:
Huayi Electric Co., Ltd. is the core subsidiary of Huayi Elec. Apparatus Group Co., Ltd. In 2007, It became the first ShangHai Stock Exchange (SSE) listed electric company in WenZhou. The company has more than 1,500 employees, of these 30 percent is engineers. It has 7 core subsidiaries and 4 divisions. It focuses on two main industries: wind energy and electric apparatus. Huayi Electric Co., Ltd has created a complete marketing network to cover the business of State Grid Corporation, five power generation Groups, chemical, petroleum, railways, industries and manufacturing. It as well has established perfect worldwide marketing channels and after-sales service system in Europe, Asia, Africa, America, and Oceania.
Main Products List:
1. Wind Turbines
2. Switchgear Panels
3. High Voltage Components
4. Instrument & Protection Systems
5. Instrument Transformers & Accessories
6. Outdoor Power Transmission & Distribution Systems
Sample & OEM & ODM is OK.
More information pls kindly visit our website:
/
http://heag.en.china.cn
Switchgear panels; switchgear; high voltage switchgear; 33kv switchgear; 11kv switchgear; schneider switchgear; low voltage switchgear; medium voltage switchgear; gas insulated switchgear; electric switchgear; electrical switchgear; 11kv switchgear panel; medium voltage switchgear manufacturers; switchgear cabinet; 22kv switchgear; Box Transformer Substation; switch cabinet; switchboard; high voltage switch cabinet; high tension switch cabinet; Mvnex; GGD ; GCK ; Blokset; switch cubicle; air insulated high-voltage switchgear; compartmented switchgear panel; Ring main Unit; cubicle switchgear; compartmented switchgear; metalclad switchgear; metal-enclosed switchgear
gas-filled switchgear; insulation-enclosed switchgear;
