Summary of Wind Power Special Compact Substation:
Nowadays, the wind energy source becomes one of the most important energy sources, and it is one of 'Green energy sources' which has great potential exploiting and applied perspective.
In normal time, the wind turbine output voltage is 690V, so it must be boosted to transmit far away. The wind farm usually use the cable to connect wind generator to wind power special prefabricated substation, boosting the voltage from 690V to 40.5kV, then transmit the power to wind farm's core substation, the core substation will boost the voltage again then connect to state power grid. The wind generator and packaged boosting transformer integration adopt one generator-one transformer unit wiring. This type prefabricated substation is designed and exploited according to this requirement.

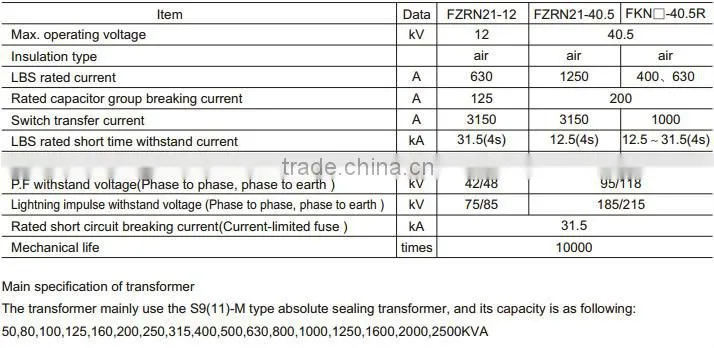

Technical Specification of Wind Power Special Compact Substation:
Standards of Wind Power Special Compact Substation:
Main Programs of Wind Power Special Compact Substation:
Ambient Condition of Wind Power Special Compact Substation:
1. Altitude: ≤1000m
2. Ambient temperature: -25℃ ~+50℃
3. Relative humidity: Daily meaning value ≤95%, Month meaning value ≤90%
4. Outdoor wind speed ≤35m/s
5. Ground gradient ≤30
6. Seismic intensity ≤VII degree
7. No flame, explosion, serious pollution, chemical corrosion and severe vibration
in mounting place, the pollution degree ≤II degree.
Certifications:
Cooperation Projects:
Company Pict:
Huayi Electric Co., Ltd. is the core subsidiary of Huayi Elec. Apparatus Group Co., Ltd. In 2007, It became the first ShangHai Stock Exchange (SSE) listed electric company in WenZhou. The company has more than 1,500 employees, of these 30 percent is engineers. It has 7 core subsidiaries and 4 divisions. It focuses on two main industries: wind energy and electric apparatus. Huayi Electric Co., Ltd has created a complete marketing network to cover the business of State Grid Corporation, five power generation Groups, chemical, petroleum, railways, industries and manufacturing. It as well has established perfect worldwide marketing channels and after-sales service system in Europe, Asia, Africa, America, and Oceania.
Main Products List:
1. Wind Turbines
2. Switchgear Panels
3. High Voltage Components
4. Instrument & Protection Systems
5. Instrument Transformers & Accessories
6. Outdoor Power Transmission & Distribution Systems
Sample & OEM & ODM is OK.
More information pls kindly visit our website:
/
