Summary of ZBW Series Combination Compact Substation Prefabricated substation :
The ZBW series combination compact substation is a outdoor three-phase complete power distribution rated frequency is 50/60Hz, and the voltage at the HV side is 35kV, LV side is 0.4kV. It can be used in the cities, villages and towns, path, factories, oil field, mine, dock, as well as constructive work places, for the accepting, converting and distributing. It has the features of strong complete set, small volume, convenience installation, simple maintenance, low cost, high automatic performance and safety running.
The combination substation can meet the technical requirement of : IEC62271-202 & GB/T17467-1998: high voltage / low voltage prefabricated substation, GB1985-2004 high DC disconnecting switch and earthing switch, GB/T3309-1989 the mechanism test of high voltage device in air temperature, GB3906-1991 3~35kV DC metal sealing switch device, GB/T11022-1999 high switch device and control device, as well as GB/T16927.1-1997 the part one of the high voltage measurement technology General measurement requirement.
Technical Specification of ZBW Series Combination Compact Substation Prefabricated substation :

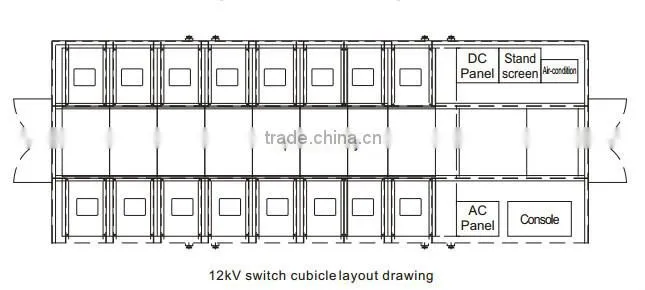

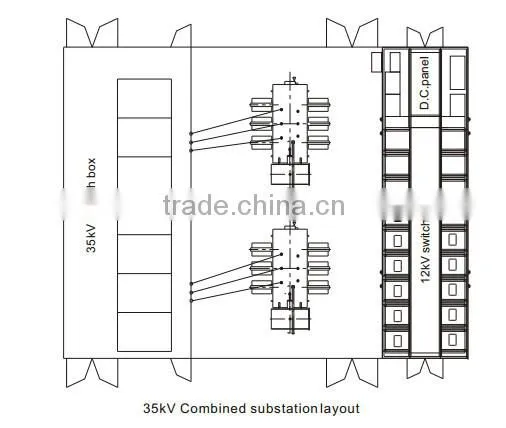

Structure of ZBW Series Combination Compact Substation Prefabricated substation :
Ambient Condition of ZBW Series Combination Compact Substation Prefabricated substation :
1. Altitude: ≤1000m;
2. Ambient temperature: -25℃ ~+40℃ ;
3. Wind speed: ≤34m/s (Wind pressure: ≤700Pa);
4. Ice thickness: ≤20mm;
5. Relative humidity: daily average ≤95%, monthly average ≤90%;
6. Without fiercely shake and impulse;
7. Occasions without flammable, explosive, serious pollution and chemical corrosion.
Certifications:
Cooperation Projects:
Company Pict:
Huayi Electric Co., Ltd. is the core subsidiary of Huayi Elec. Apparatus Group Co., Ltd. In 2007, It became the first ShangHai Stock Exchange (SSE) listed electric company in WenZhou. The company has more than 1,500 employees, of these 30 percent is engineers. It has 7 core subsidiaries and 4 divisions. It focuses on two main industries: wind energy and electric apparatus. Huayi Electric Co., Ltd has created a complete marketing network to cover the business of State Grid Corporation, five power generation Groups, chemical, petroleum, railways, industries and manufacturing. It as well has established perfect worldwide marketing channels and after-sales service system in Europe, Asia, Africa, America, and Oceania.
Main Products List:
1. Wind Turbines
2. Switchgear Panels
3. High Voltage Components
4. Instrument & Protection Systems
5. Instrument Transformers & Accessories
6. Outdoor Power Transmission & Distribution Systems
Sample & OEM & ODM is OK.
