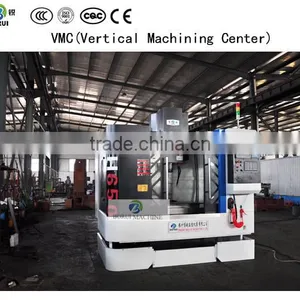

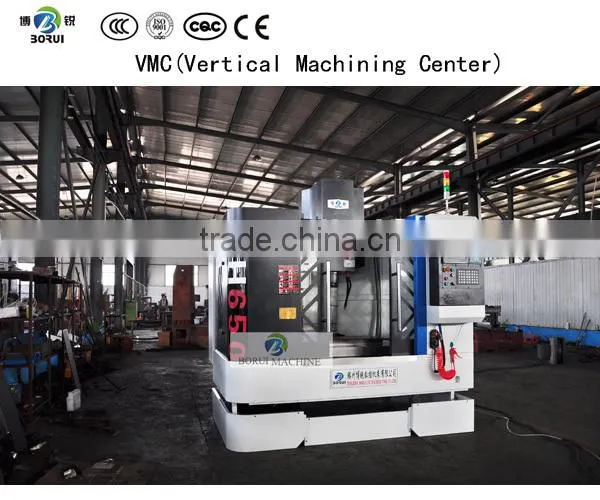

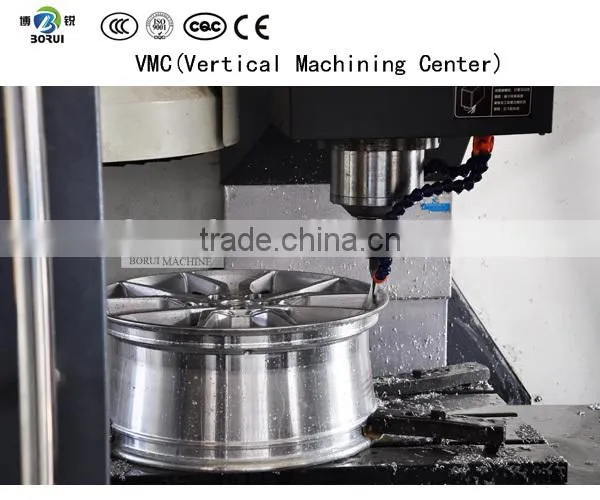

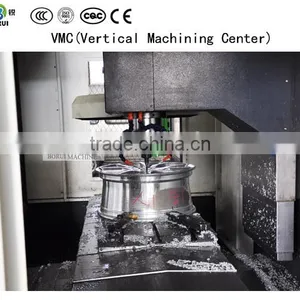

XH650 High Precision Cnc Vertical Machining Center Machine Price For Wheel Hub
This Vertical machining center machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.
Vertical machining center fearturs :
1.High quality resin sand
2. Japanese NSK bearing
3. Twaiwan spindle
4. Germany R+W coupling
5. Taiwan ball screw and locking nut
6. Automatic lubrication system
7. Taiwan pressure cylinder
8. Chip conveyor at optional
CNC machining machines |
VMC650 |
Capacity | |
table size |
900X400mm |
Max. table load |
450kg |
T slot qty-width*distance |
3-18x125 |
Spindle | |
spindle speed |
8000 r p m |
spindle nose to table surface |
150-650mm |
Spindle center to Column surface |
496mm |
Spindle taper |
BT40 |
Main motor power |
5.5/7.5kw |
Three-axis servo motor power |
1.0/1.0/1.5kw |
Box way | |
X axis travel |
650mm |
Y axis travel |
400mm |
Z axis travel |
500mm |
X/Y/Z axis rapid feed |
15/15/12m/min |
Cutting feed speed |
8m/min |
Automatic tool changer | |
|
Tool changer type Tools capacity |
drum/ hat type (arm type optional ) |
Max. tool length |
250/350mm |
Max. Tool diameter |
φ100(adjacent tool)/φ150(not adjacent tool) |
Max.tool(kinfe) weight |
7kg |
Tool changing time(tool-to-tool) |
1.8sec |
Accuracy | |
Positioning accuracy |
±0.005/300 |
Repeat positioning accuracy |
±0.004/ |
Net Weight |
4500 kg |
Overall Dimension |
2700X2450X2700 |
This is bamboo type tool magazine .
This tool magazine have two modle ,one is bamboo typle ,and the other one is disc type , we could set it according to your demands .

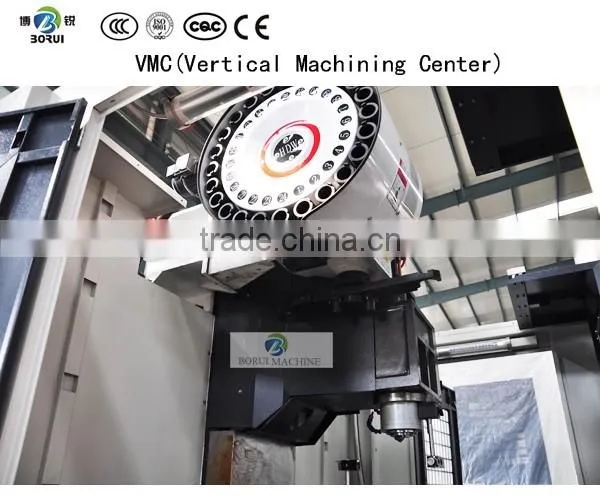

This is the disc type tool magazine .
automatic relurablication .
This one is full protective cover .
the protective cove we could make is as half-protective cover ,also could make it full-protective cover .
This one is half-protective cover ,this is cheap and economic .
Tengzhou Borui CNC Machine tool Co.,Ltd is an integrated company ,which set development, production, sales as one .Our factory establishes in 1980 years ,have over 30 years history ,what's more ,we are comprehensive manufacturer.
Our Company’s CNC lathe, machining center, drilling machine, hydraulic machine and other products export to many countries. Especially in Egypt, Saudi Arabia, Turkey ,we have good customer base, also export to South America and other countries.
The company with innovative ideas that developing market, and
always with good quality. Reasonable price, accurate delivery and quality service ,we set a good image in the customer .
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Plywood
Q: How do we confirm the accuracy and performance of machines?
A: (1) Regarding the performance ,we could produce a workpiece for your consult ,which will be produced according to the customer's sample that send to us.
(2)You could inspect machine accuracy by online video
(3)You also could check our factory and machine quality by SGS or other Inspecting Authority.
Q: Can you change the voltage of machine?
A: Sure,we can , We can change the voltage according to different area. 110V-220V-380V-400V-440V
Q: What's the delivery time after payment ?
A: It need about 30 days if the machine is customized .and it just need about 20 days if your machine is universal .
Q: How long is your quality guarantee period?
A:One year, if machine has problem, we will provide accessories in free, in the meantime, we can use DHL or TNT express delivery.
We guarantee that if customers have questions, we will reply within 8 hours, and develop a set of complete solutions according to customers’ problems.
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
