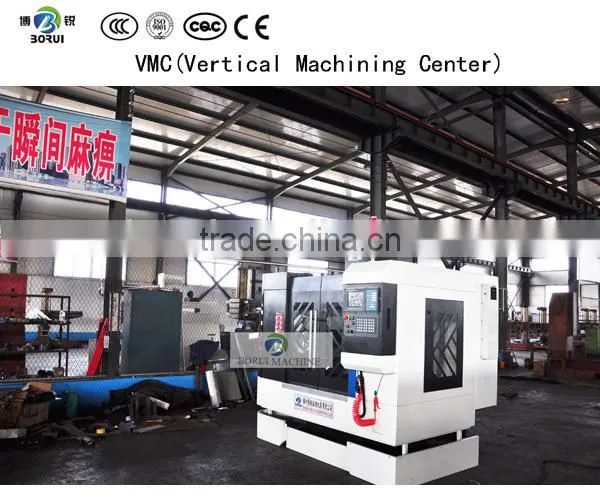

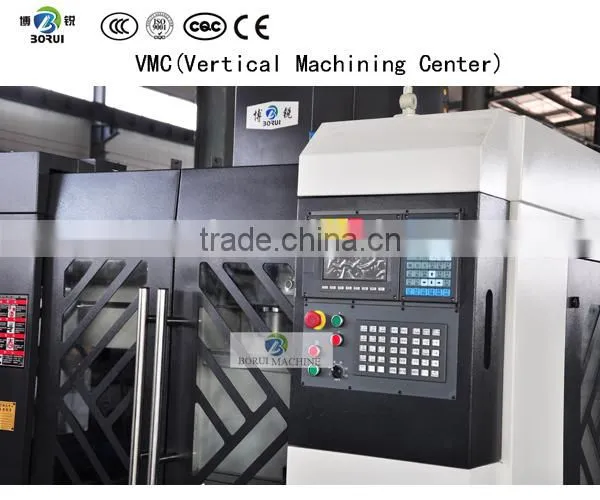

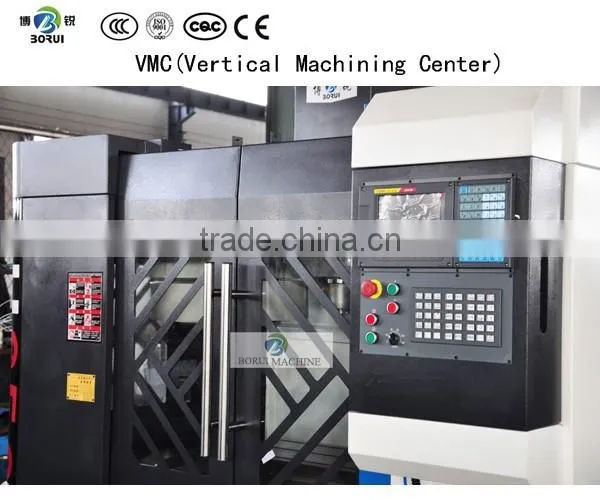

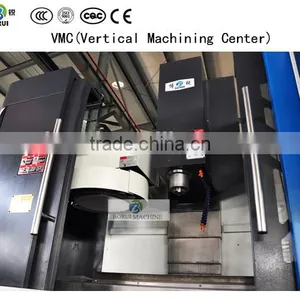

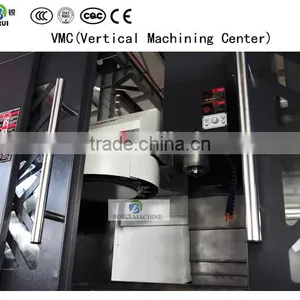

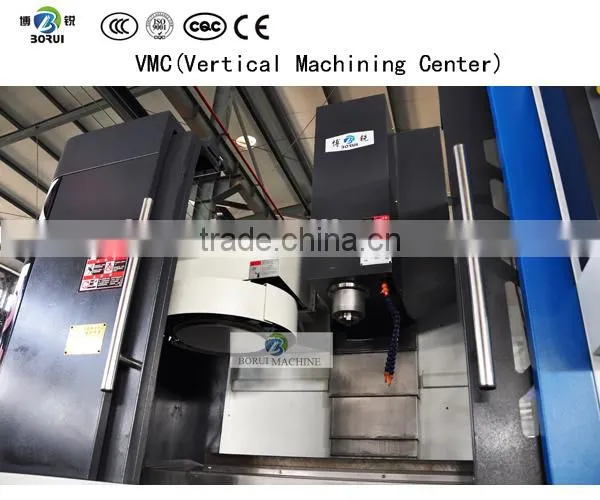

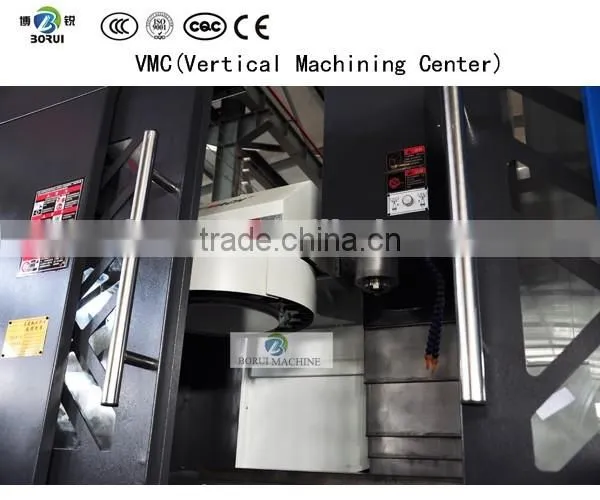

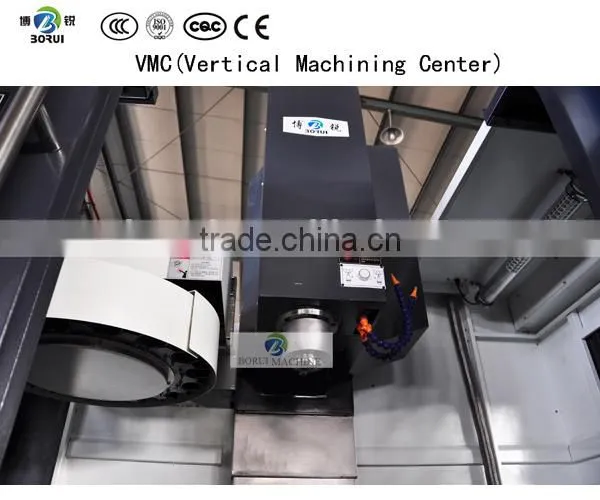

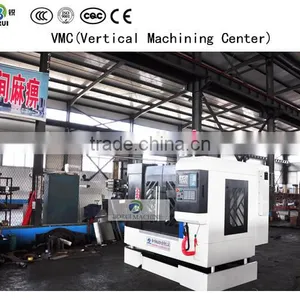

Vertical machining center use:
This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.
Vertical machining center fearturs :
1.High quality resin sand
2. Japanese NSK bearing
3. Twaiwan spindle
4. Germany R+W coupling
5. Taiwan ball screw and locking nut

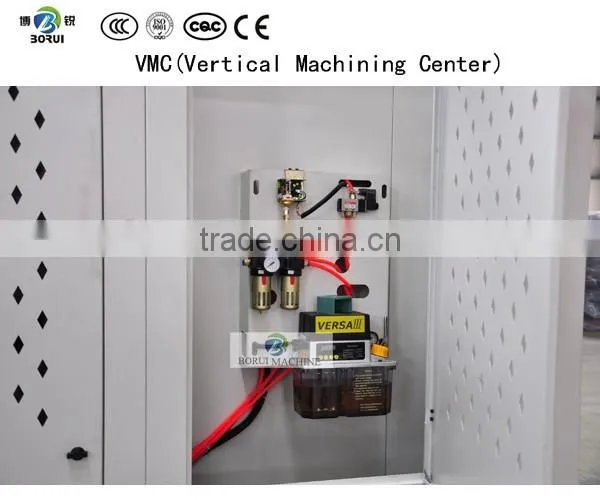

6. Automatic lubrication system
7. Taiwan pressure cylinder
8. Chip conveyor at optional
CNC machining machines for sale message center |
VMC650 |
Capacity | |
table size |
900X400mm |
Max. table load |
450kg |
T slot qty-width*distance |
3-18x125 |

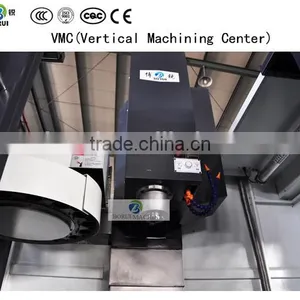

Spindle | |
spindle speed |
8000 r p m |
spindle nose to table surface |
150-650mm |
Spindle center to Column surface |
496mm |
Spindle taper |
BT40 |
Main motor power |
5.5/7.5kw |

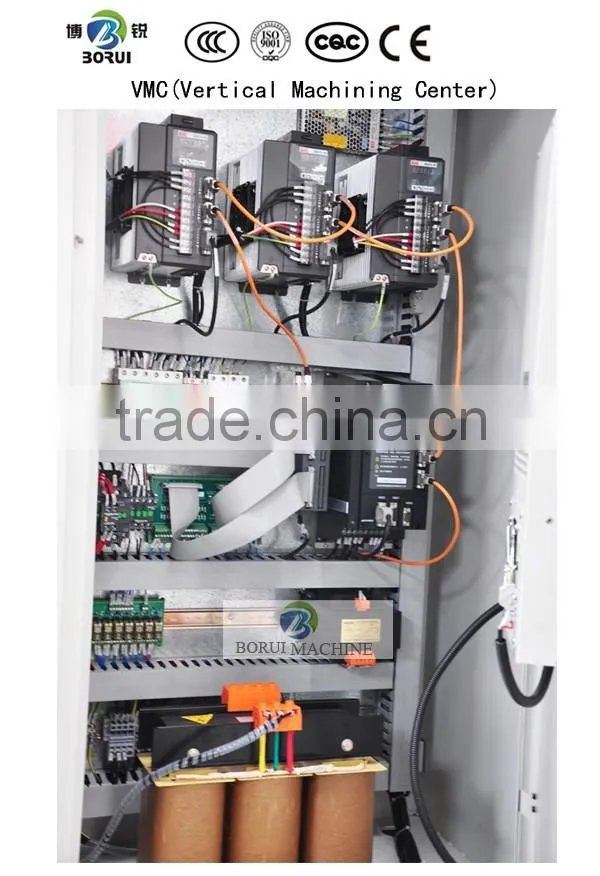

Three-axis servo motor power |
1.0/1.0/1.5kw |
Box way | |
X axis travel |
650mm |
Y axis travel |
400mm |
Z axis travel |
500mm |
X/Y/Z axis rapid feed |
15/15/12m/min |
Cutting feed speed |
8m/min |
Automatic tool changer | |
|
Tool changer type Tools capacity |
drum/ hat type (arm type optional ) |
Max. tool length |
250/350mm |
Max. Tool diameter |
φ100(adjacent tool)/φ150(not adjacent tool) |
Max.tool(kinfe) weight |
7kg |
Tool changing time(tool-to-tool) |
1.8sec |
Accuracy | |
Positioning accuracy |
±0.005/300 |
Repeat positioning accuracy |
±0.004/ |
Net Weight |
4500 kg |
Overall Dimension |
2700X2450X2700 |
After-sales Service :
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have.
Payment Method:
1.30% deposit T/T in advance, rest against the copy of B/L or before delivery.
2.L/C in sight .or according to customer’s requirement.
Delivery Time:
For one set machine, will be within 20 days after deposit.
For 5-10 sets same machines, will be within 30 days after deposit.
For 5-10 sets different machine, will be more than one month.
MOQ:
1 set machine.
If you need machine with your own specification, logo, packing, etc, please negotiate with us.
Shipping:
For machine: Usually by sea;
For documents: by international express, DHL,TNT or EMS.
Tengzhou Borui CNC Machine tool Co.,Ltd is an integrated company ,which set development, production, sales as one .
Our Company’s CNC lathe, machining center, drilling machine, hydraulic machineand other products export to many countries. Especially in Egypt, Saudi Arabia, Turkey ,we have good customer base, also export to South America and other countries.
The company with innovative ideas that developing market, and
always with good quality. Reasonable price, accurate delivery and quality service ,we set a good image in the customer .
