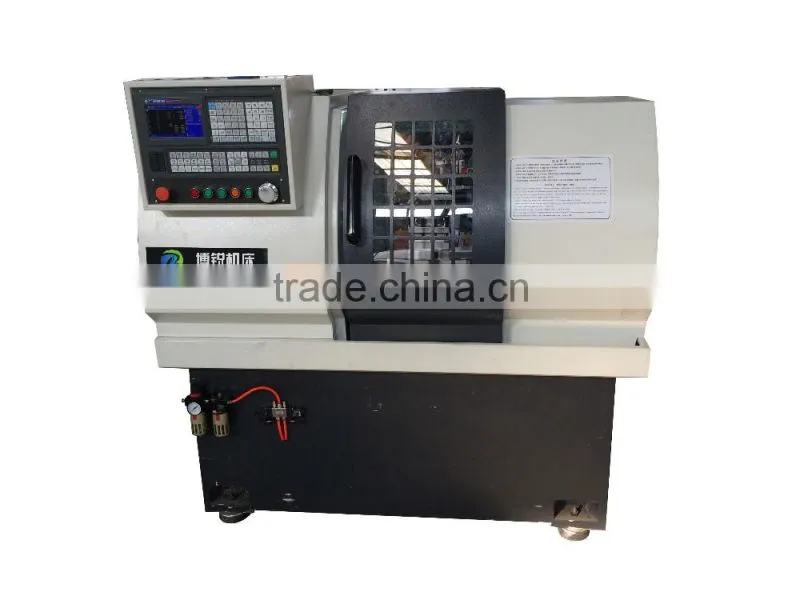

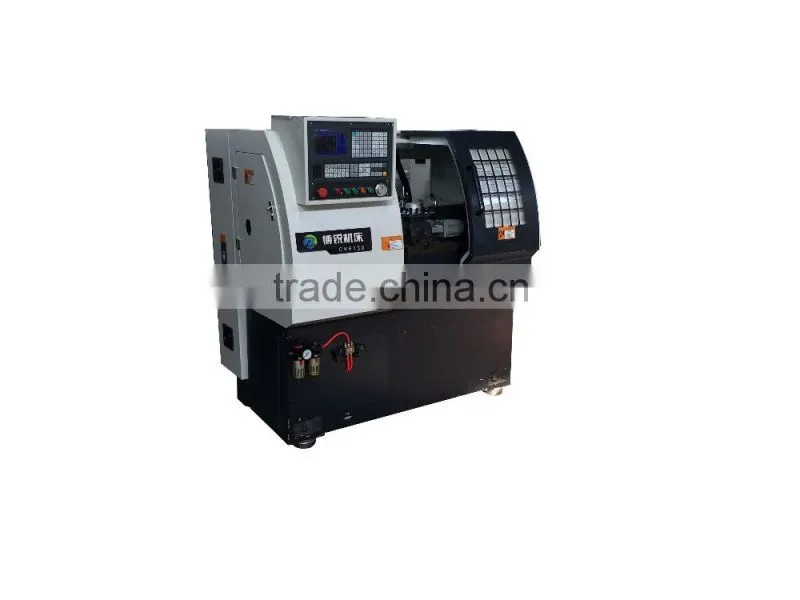

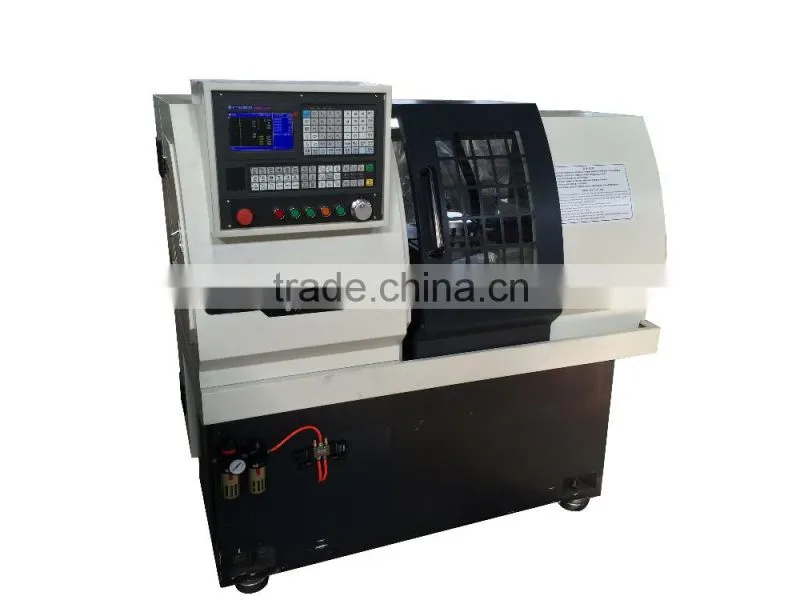

Help CenterCnc Lathe Machine for Automatic Brake Disc
Related Products
-
Cnc Lathe Machine CK6130NegotiableMOQ: 1 Set -
Machining Cylinder Surfacec Lathe MachineUS$ 8,999 - 17,999MOQ: 1 Set
-
Max Swing Over Bed 300mm Cnc Lathe Machine for Producing Automatic PartsUS$ 7,999 - 12,999MOQ: 1 Set
-
Factory Directly Selling And Customized Lathe MachineUS$ 6,150 - 10,000MOQ: 1 Set
-
High Performance With Good Quality Inclined Type LatheUS$ 7,690 - 12,300MOQ: 1 Set
Model |
CK6130 |
CK6125 |
maximum turning diameter |
300mm |
250mm |
maximum machining length |
Chuck 290/ collet 400 |
Chuck 260/ collet 320 |
X/Z axis Maximum stroke |
300/380 mm |
300/350 mm |
X/Z axis minimum displacement unit |
0.01mm |
0.01mm |
Spindle hole diameter |
48mm |
48mm |
Spindle Drawn tube diameter |
41mm |
41mm |
Chuck size |
160mm |
160mm |
Spindle axis series |
stepless |
stepless |
Spindle speed |
150-2500 rmp |
150-2500 r m p |
Main motor power (transduction) |
4 KW |
4 KW |
Frequency converter |
5.5KW |
5.5KW |
X/Z axis feed power |
1/1 |
1/1 |
X/Z axis fast moving speed |
8/10 |
8/10 |
Cutter bar size |
16*16 |
16*16 |
Repeat positioning accuracy |
≤0.004 |
≤0.004 |
Tail seat type |
Have one |
Have one |
Diameter of tailstock sleeve |
52mm |
52mm |
Tail sleeve stroke |
100 mm |
90mm |
Tailstock taper hole |
4# |
4# |
Net weight |
1420 kg |
1000kg |
Overall size (L *w*h) |
1750X1200X1570mm |
1780X800X1600mm |
Power power (power / current) |
8kW/15A |
7KW/15A |
1.Mechanical and electrical integration of the machine tool design, beautiful appearance, reasonable structure, low noise, high positioning accuracy. A wide range of uses, convenient operation, can automatically turning the various parts of the internal and external circular, cutting groove, end, any taper, spherical and a variety of public, the British manufacturing cylinder, cone thread processing.
2.cNC programming system using ISO code, manual keyboard input, and is equipped with RS232 communication interface, with power cut-off protection and self diagnosis function.
3.Spindle system is rigid, variable frequency stepless speed regulation. Spindle aperture, optional accessories complete. Applicable to various shapes of complex, long axis and disc type parts, such as, also the machine have the characteristics of low speed high torque, applicable to parts of the fine, fine car.
4.The bed has a high rigidity, bed rail by super audio quenching after fine grinding, long service life, high precision, durable.
5.The vertical and horizontal cutting tool servo motor drive, precision ball screw drive.
6.Machine structure stiffness and rigidity of transmission is higher than the general lathe, high power utilization, suitable for high speed cutting power.
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6. All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have.
Payment Method:
1.30% deposit T/T in advance, rest against the copy of B/L or before delivery.
2.L/C in sight .or according to customer’s requirement.
Delivery Time:
For one set machine, will be within 15 days after deposit.
For 5-10 sets same machines, will be within 30 days after deposit.
For 5-10 sets different machine, will be more than one month.
MOQ:
1 set machine.
If you need machine with your own specification, logo, packing, etc, please negotiate with us.
Shipping:
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
