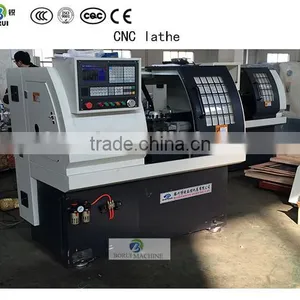

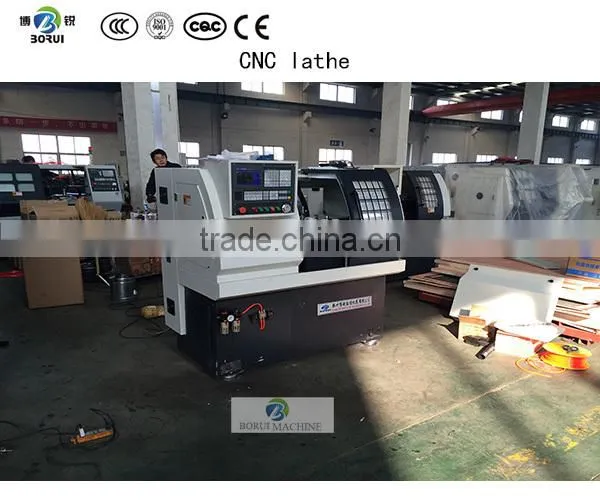

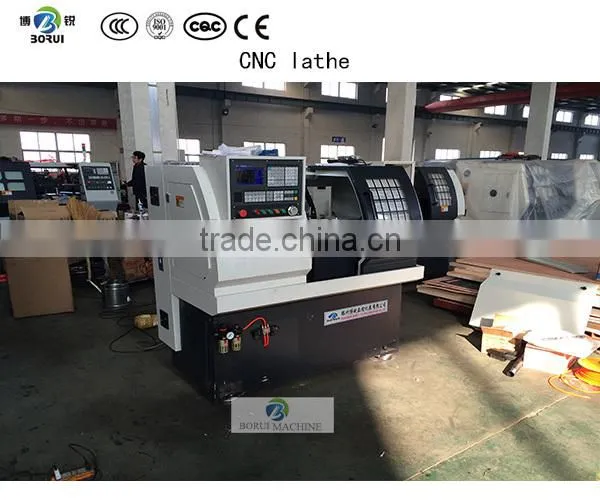

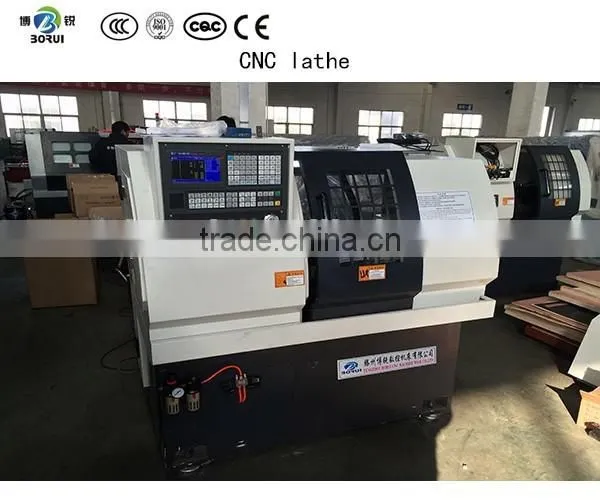

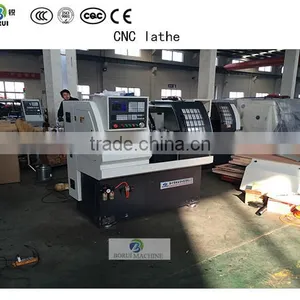

Help CenterMax Swing Over Bed 300mm Cnc Lathe Machine for Producing Automatic Parts
Related Products
-
Factory Directly Selling And Customized Lathe MachineUS$ 6,150 - 10,000MOQ: 1 Set -
High Performance With Good Quality Inclined Type LatheUS$ 7,690 - 12,300MOQ: 1 Set
-
Factory Directly Selling And Customized Lathe Machine CK6125US$ 6,150 - 10,000MOQ: 1 Set
-
Cnc Machining Equipment From China SuppliersUS$ 6,000 - 9,000MOQ: 1 Set
-
CNC Tools For Lathe Machine From China FcatoryUS$ 6,000 - 9,000MOQ: 1 Set

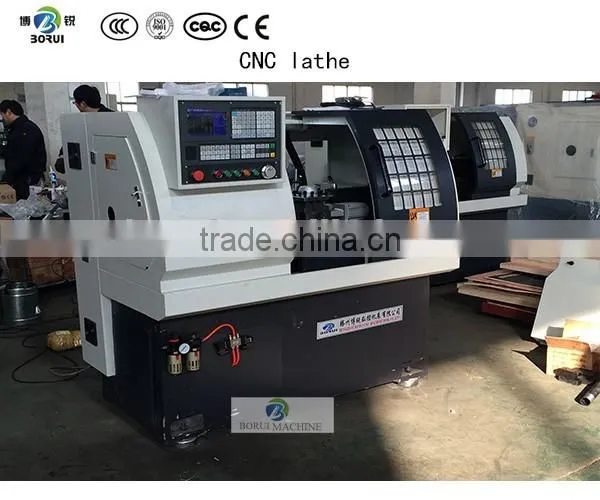

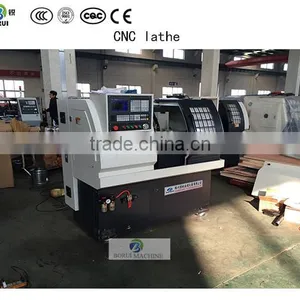

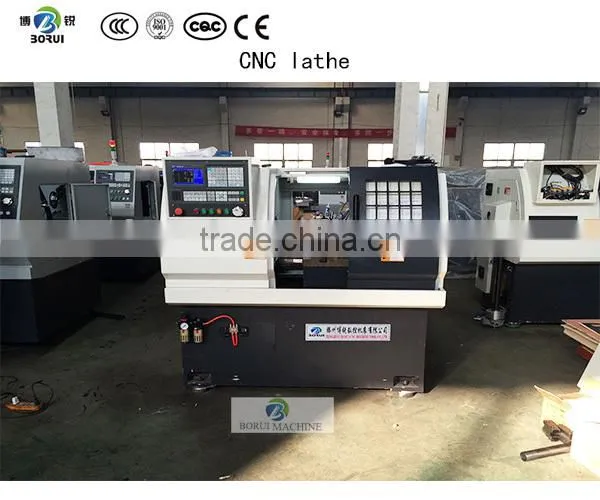

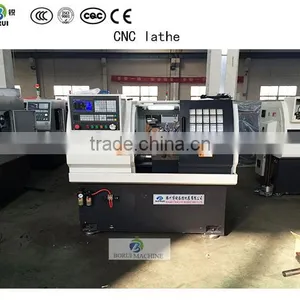

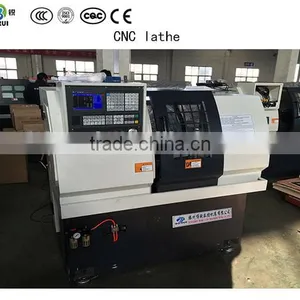

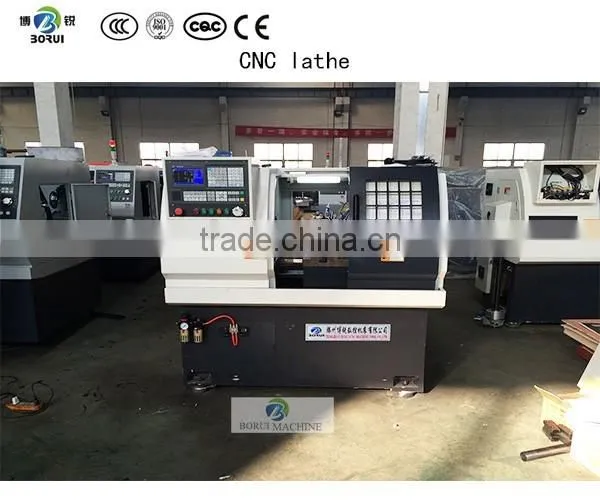

The Using :
This machine is widely used in processing and manufacturing the electricalappliance,instrumentation industry,automobile,motorcycle,fastener bearings,photographic and film machinery,hardware tools,watches,glasses,stationery,motors,valves and gas pipe and other high precise and complex components. It is the ideal high efficiency equipment in the hardware machining industry.
The machine features:
1.frequency conversion stepless speed regulation
2.With servo system
3.Four position electric turret
4.Standard configuration:spring chuck and chuck double use
5.Optional configuration:hydraulic chuck,gang type tool post
Model |
CK6130 |
CK6125 |
maximum turning diameter |
300mm |
250mm |
Max swing over cross slide |
90/110 |
100 |
maximum machining length |
Chuck 290/ collet 400 |
Chuck 260/ collet 320 |
X/Z axis Maximum stroke |
300/380 mm |
300/350 mm |
Spndle nose |
A2-5 |
|
X/Z axis minimum displacement unit |
0.01mm |
0.01mm |
Spindle hole diameter |
48mm |
48mm |
Spindle Drawn tube diameter |
41mm |
41mm |
Chuck size |
160mm |
160mm |
Spindle axis series |
stepless |
stepless |
Spindle speed |
150-2500 rmp |
150-2500 r m p |
Main motor power (transduction) |
4 KW |
4 KW |
Frequency converter |
5.5KW |
5.5KW |
X/Z axis feed power |
1/1 |
1/1 |
X/Z axis fast moving speed |
8/10 |
8/10 |
Cutter bar size |
16*16 |
16*16 |
Repeat positioning accuracy |
≤0.004 |
≤0.004 |
Tail seat type |
Have one |
Have one |
Diameter of tailstock sleeve |
52mm |
52mm |
Tail sleeve stroke |
100 mm |
90mm |
Tailstock taper hole |
4# |
4# |
Net weight |
1420 kg |
1000kg |
Overall size (L *w*h) |
1750X1200X1570mm |
1780X800X1600mm |
Power power (power / current) |
8kW/15A |
7KW/15A |

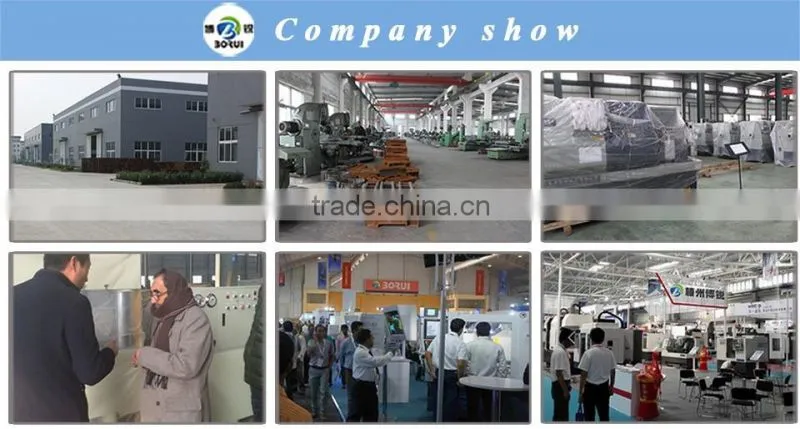

Tengzhou Borui CNC Machine tool Co.,Ltd is an integrated company ,which set development, production, sales as one .
Our Company’s CNC lathe, machining center, drilling machine, hydraulic machine and other products export to many countries. Especially in Egypt, Saudi Arabia, Turkey ,we have good customer base, also export to South America and other countries.
The company with innovative ideas that developing market, and
always with good quality. Reasonable price, accurate delivery and quality service ,we set a good image in the customer .
Q:How do we confirm the accuracy and performance of machines?
A(1)Regarding the performance , we could produce a workpiece for your consult ,which wil l be produced according to the customer's sample that send to us.
(2)You could inspect machine accuracy by online video
(3)You also could check our factory and machine quality by SGS or other Inspecting Authority.
Q:Can you change the voltage of machine?
A:Sure,we can , We can change the voltage according to different area. 110V-220V-380V-400V-440V
Q:What's the delivery time after payment ?
A:It need about 30 days if the machine is customized .and it just need about 20 days if your machine is universal .
Q:How long is your quality guarantee period?
A:One year, if machine has problem, we will provide accessories in free, in the meantime, we can use DHL or TNT express delivery.
We guarantee that if customers have questions, we will reply within 8 hours, and develop a set of complete solutions according to customers’ problems.
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
