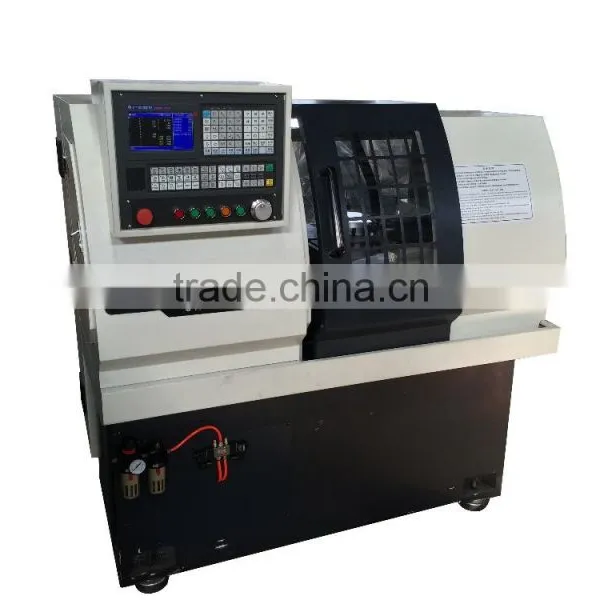

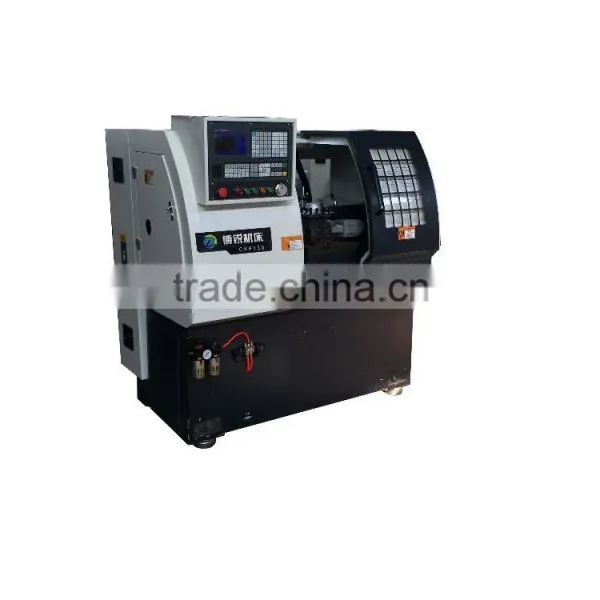

cnc lathe machine CK6130
- 50 Set / Sets per Month
- qingdao shanghai
- T/T L/C D/P D/A Credit Card PayPal
- TP 35/45 Series Parallel Double Spindle Turning Center
- WF-450QTN Line Rail Inclined Bed Turret Lathe
- Prototype CNC Lathe ,CNC Turning Lathe Machines,mini lathe,CNC lathe,rolling cnc milling,hobby cnc lathe,DIY CNC lathe
- Micro CNC Lathe Benchtop CNC Pocket NC Small CNC China Mini Lathe hobby CNC Lathe For Training
- Small CNC Lathe, Metal turning machine, industrial machine, metal working cnc
- Small CNC Lathe, Metal turning machine, industrial machine, metal working cnc, turn-mill machine
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | Normal |
Automatic Grade: | Automatic | Max. Swing Diameter: | 300mm | Place of Origin: | Shandong, China |
Brand Name: | borui | Model Number: | ck6130 | Voltage: | Customer's Requirement |
Power(W): | 4KW | Dimension(L*W*H): | 1750*1200*1570mm | Weight: | 1420kg |
Certification: | CE ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Model | CK6130 | CK6125 |
maximum turning diameter | 300mm | 250mm |
maximum machining length | Chuck 290/ collet 400 | Chuck 260/ collet 320 |
X/Z axis Maximum stroke | 300/380 mm | 300/350 mm |
X/Z axis minimum displacement unit | 0.01mm | 0.01mm |
Spindle hole diameter | 48mm | 48mm |
Spindle Drawn tube diameter | 41mm | 41mm |
Chuck size | 160mm | 160mm |
Spindle axis series | stepless | stepless |
Spindle speed | 150-2500 rmp | 150-2500 r m p |
Main motor power (transduction) | 4 KW | 4 KW |
Frequency converter | 5.5KW | 5.5KW |
X/Z axis feed power | 1/1 | 1/1 |
X/Z axis fast moving speed | 8/10 | 8/10 |
Cutter bar size | 16*16 | 16*16 |
Repeat positioning accuracy | ≤0.004 | ≤0.004 |
Tail seat type | Have one | Have one |
Diameter of tailstock sleeve | 52mm | 52mm |
Tail sleeve stroke | 100 mm | 90mm |
Tailstock taper hole | 4# | 4# |
Net weight | 1420 kg | 1000kg |
Overall size (L *w*h) | 1750X1200X1570mm | 1780X800X1600mm |
Power power (power / current) | 8kW/15A | 7KW/15A |
Payment Method:
1.30% deposit T/T in advance, rest against the copy of B/L or before delivery.
2.L/C in sight .or according to customer’s requirement.
Delivery Time:
For one set machine, will be within 15 days after deposit.
For 5-10 sets same machines, will be within 30 days after deposit.
For 5-10 sets different machine, will be more than one month.
MOQ:
1 set machine.
If you need machine with your own specification, logo, packing, etc, please negotiate with us.
Shipping:
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6. All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have.
