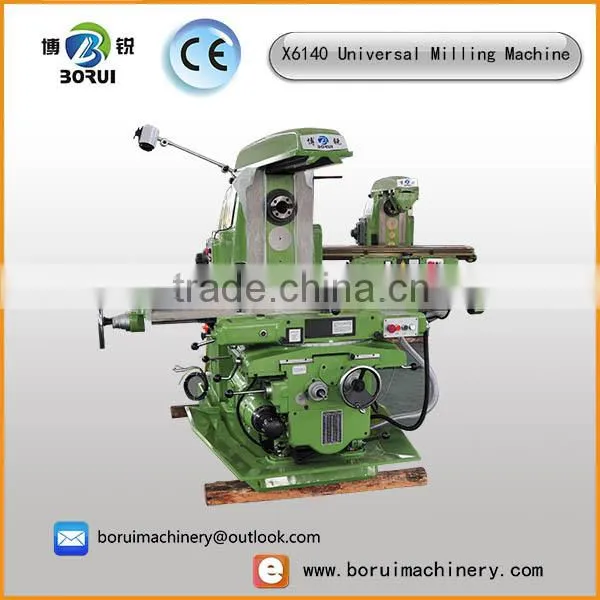

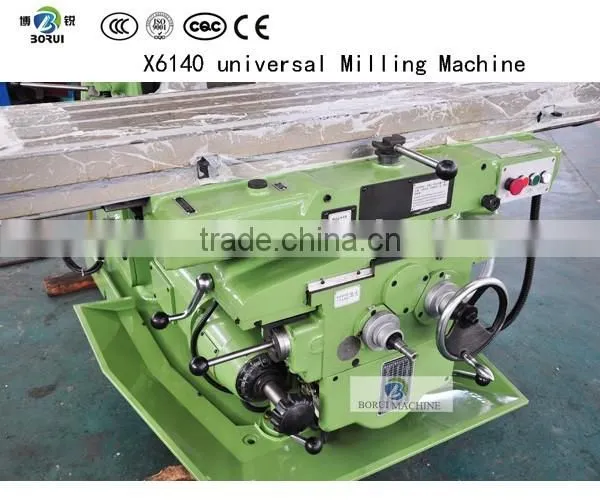

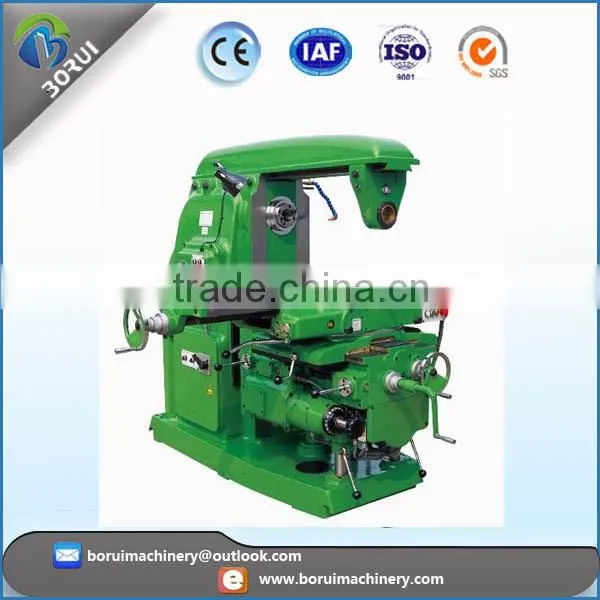

Product name : Factory Discount Conventional Milling Machine
The Feature of the milling machine :
In addition to all the principal features of horizontal milling machines working table can be swiveled up to 45 degree. Equipped with dividing head, it can be used for various spirals and especial surfaces such as spur and helical cylindrical gears and flutes of twist drills. According to customers require, every kind of milling machine can be equipped with digital display.
The specification of the milling machine
Specification |
Units |
X6140 |
Table size |
mm |
1700 x 400 |
No.of T-slots |
|
3 |
Max load |
Kg |
800 |
Longitudinal travel ( manual/auto ) |
mm |
900/800 |
Cross travel ( manual/auto ) |
mm |
315/300 |
Vertical travel ( manual/auto ) |
mm |
380/360 |
Width of T-slots |
mm |
18 |
Rapid feed speed |
mm/min |
X: 2300, Y: 2300, Z: 770 |
Spindle speed range |
r/min |
30---1500 |
Spindle step |
steps |
18 |
Cutting feed speed |
mm/min |
X: 19—950, Y: 19—950, Z: 6.3--317 |
Distance between spindle axis and table surface |
mm |
30---410 |
Power of spindle motor |
kw |
11 |
Overall size ( L x W x H ) |
mm |
2556 x 2159 x 1770 |
Net weight |
kg |
3850 |

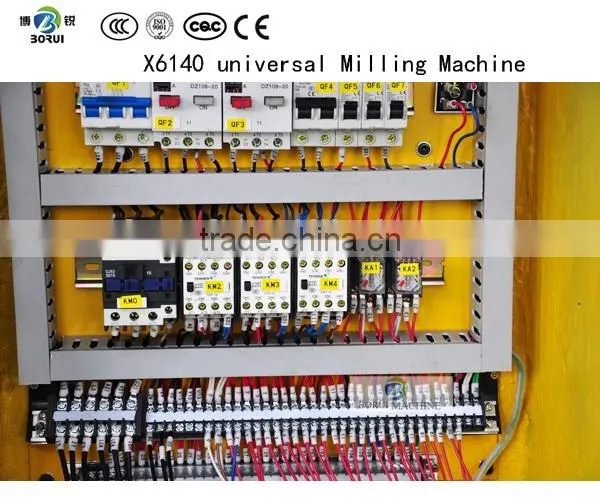

(All electrical appliances are CE standard, to ensure product quality )
(1.Work Table Surface and Guide ways Hardened by Supersonic Frequency Quenching (depth 2-4MM).
2.Work Table Made by HT200-250 High Strength Cast Iron)
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Plywood
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Q: How do we confirm the accuracy and performance of machines?
A: (1) Regarding the performance ,we could produce a workpiece for your consult ,which will be produced according to the customer's sample that send to us.
(2)You could inspect machine accuracy by online video
(3)You also could check our factory and machine quality by SGS or other Inspecting Authority.
Q: Can you change the voltage of machine?
A: Sure,we can , We can change the voltage according to different area. 110V-220V-380V-400V-440V
Q: What's the delivery time after payment ?
A: It need about 30 days if the machine is customized .and it just need about 20 days if your machine is universal .
Q: How long is your quality guarantee period?
A:One year, if machine has problem, we will provide accessories in free, in the meantime, we can use DHL or TNT express delivery.
We guarantee that if customers have questions, we will reply within 8 hours, and develop a set of complete solutions according to customers’ problems.
