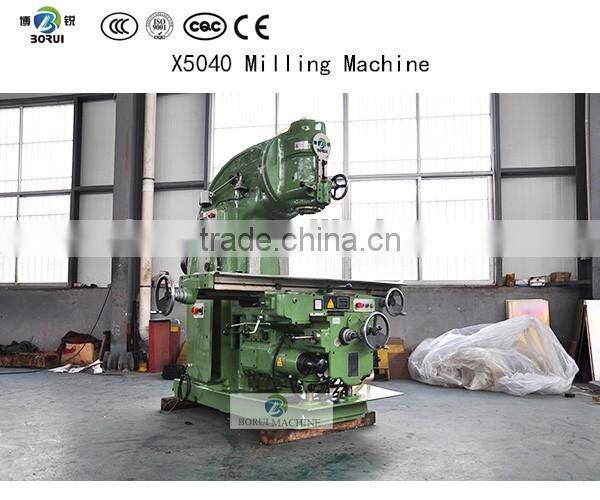

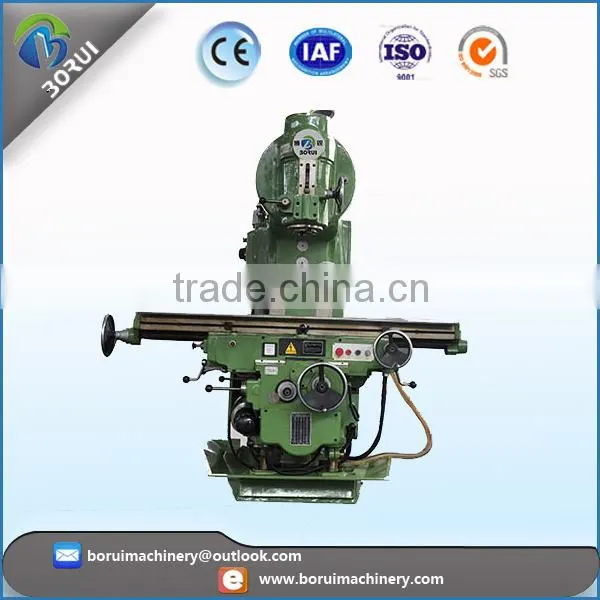

Product Name : Good Quality X5040 Vertical Milling Machine Price List
Vertical milling machine has following features:
1.One more powerful metal cutting machine,
2. High rigidity,
3. Wide range of spindle feed also can bear a heavy burden.
4.The spindle taper hole can install many kinds of cylindrical cutter, disc cutter, form cutter, end milling cutter and so on,
5.Optional accessories as dividing head, rotary table, machine vice,milling chuck, Digital readout, can make such machine more functional.
Milling machine Main Usage:
1.This universal milling machine Suitable for machining all parts plane, inclined plane, groove, hole,key way, etc
2.For machinery manufacturing, mould, apparatus, instrument, car and son
This Vertical Milling Machine Advantage :
Rectangular guide ways
Hardened and ground table surface
Spindle swivels +/-45 degrees
Quill moves up and down
Main specification |
X5032 |
X5040 |
Table size |
320 x 1325 mm |
400 x 1700 mm |
Spindle taper |
7:24 ISO 50 |
7:24 ISO 50 |
Spindle bore |
29 mm |
29 mm |
Distance from spindle nose to table surface |
60-410 mm |
30-500 mm |
Distance from spindle axis to bed vertical guide way surface |
350 mm |
450 mm |
T-slot(number/width/spacing) |
3/18/70 |
3/18/90 |
Max. longitudinal travel manual/automatic |
700/680 mm |
900/880 mm |
Max. cross travel manual/automatic |
255/240 mm |
315/300 mm |
Max. vertical travel manual/automatic |
350/330 mm |
385/365 mm |
Rapid speed longitudinal/cross/vertical |
2300/1540/770 mm/min |
2300/1540/770 mm/min |
Max. turning angle of vertical milling head |
±45° |
±45° |
Spindle travel |
70 mm |
85 mm |
Number of spindle speed |
18(steps) |
18(steps) |
Spindle speed range |
30~1500 r.p.m |
30~1500 r.p.m |
Number of table feed |
18(steps) |
18(steps) |
Main motor power |
7.5 KW |
11 KW |
Feed motor power |
2.2 KW |
3 KW |
Overall dimension |
2294X1770X 1904 |
2556X2159X2258 |
Net weight/Gross weight |
2900 /3200 |
4250/4350 |
Standard Accessories |
Optional Accessories: |
1.Drill chuck |
1.DRO on X, Y, Z--AXIS |
2.Mill chuck |
2.Clamping kit |
|
3.Inner hexagon spanner
|
3.Universal dividing head |
|
4.Work light 5.Reduction sleeve
|
|
|
6.Draw bar
|
|
|
7.Spindle arbor
|
|
|
8.wrench
|
|
(1.Work Table Surface and Guide ways Hardened by Supersonic Frequency Quenching (depth 2-4MM).
2.Work Table Made by HT200-250 High Strength Cast Iron)
The machine structure with the design of double column machine,which increases the accuracy and stability when strong cutting, improve work efficiency

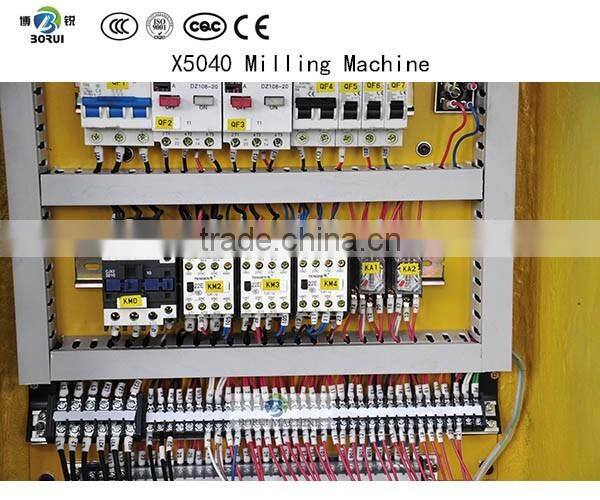

(All electrical components are CE standard, to ensure product quality )

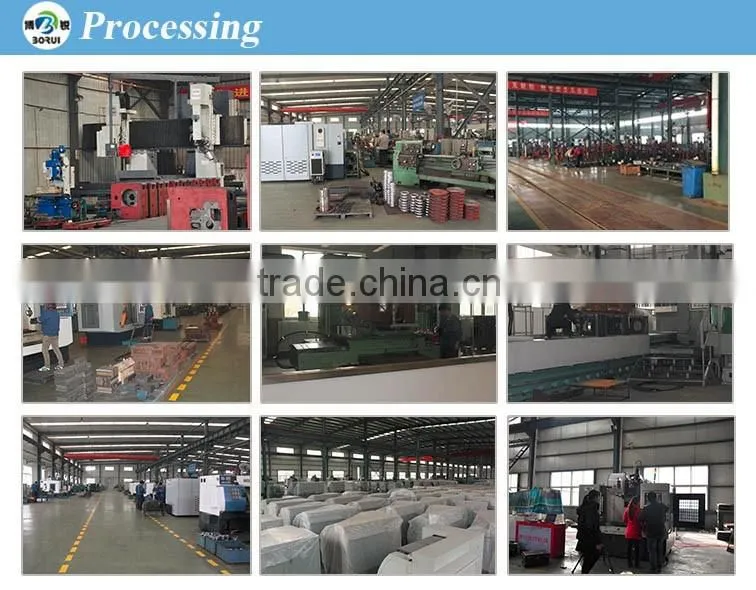

Tengzhou Borui CNC Machine tool Co.,Ltd is an integrated company ,which set development, production, sales as one .Our factory establishes in 1980 years ,have over 30 years history ,what's more ,we are comprehensive manufacturer.
Our Company’s CNC lathe, machining center, drilling machine, hydraulic machine and other products export to many countries. Especially in Egypt, Saudi Arabia, Turkey ,we have good customer base, also export to South America and other countries.
The company with innovative ideas that developing market, and
always with good quality. Reasonable price, accurate delivery and quality service ,we set a good image in the customer .
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Q: How do we confirm the accuracy and performance of machines?
A: (1) Regarding the performance ,we could produce a workpiece for your consult ,which will be produced according to the customer's sample that send to us.
(2)You could inspect machine accuracy by online video
(3)You also could check our factory and machine quality by SGS or other Inspecting Authority.
Q: Can you change the voltage of machine?
A: Sure,we can , We can change the voltage according to different area. 110V-220V-380V-400V-440V
Q: What's the delivery time after payment ?
A: It need about 30 days if the machine is customized .and it just need about 20 days if your machine is universal .
Q: How long is your quality guarantee period?
A:One year, if machine has problem, we will provide accessories in free, in the meantime, we can use DHL or TNT express delivery.
We guarantee that if customers have questions, we will reply within 8 hours, and develop a set of complete solutions according to customers’ problems.
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Plywood
Overall dimension 2556X2159X2258
Net weight/Gross weight 2900 /3200 4250/4350
20 Feet Container could fill two sets milling machine
40 Feet Container could fill four sets milling machine
