Horizontal Milling Machine Horizontal Milling Machine From China Manufacturer

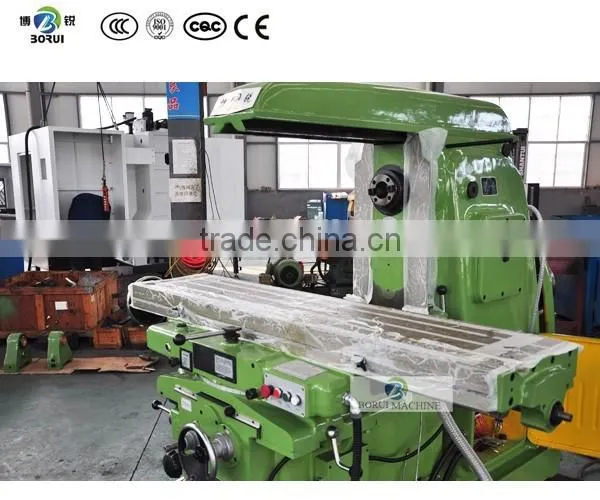

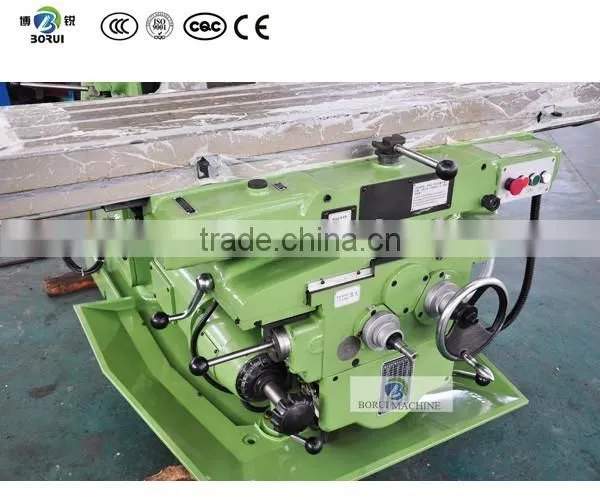

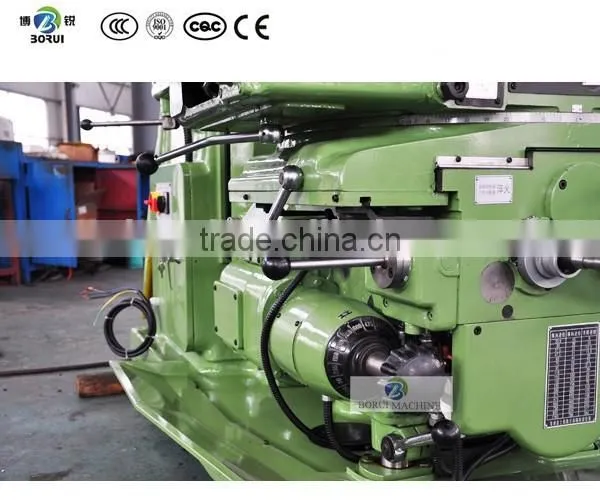

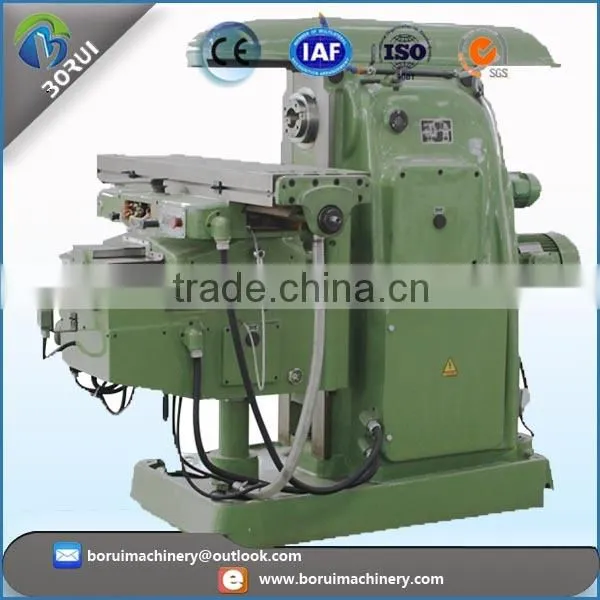

Model:X6132 Horizontal Milling Machine
The milling machine is suitable for machinery, light industry, instrument, motor, electrical appliance and moulds, and widely used in milling plane, inclined plane and slot on miscellaneous work pieces of various metals by means of cylindrical or angle milling cutter in either down-milling or up milling ,it is characterized by stabilizing precision sensitive response ,light in weight ,power feed and rapaid adjustment in longitudinal ,cross ,vertical traverse. Equipped with various accessories ,it can be applicable to versatile processing .
The Milling Machine Specification :
Specification |
X6132 |
Table size(widtht*length) (mm) |
320X1325/1700 |
Max .table load (kg) |
500 |
NO.of T-slots/width/distance |
3/18/70 |
Longitudinal travel(manual/auto) (mm) |
700/680, 1100/1080 |
Max transverse travel(manual/auto) (mm) |
245/230 |
Max vertical travel(mannual/auto) (mm) |
320/300 |
Feed rates: Cutting feed rate (mm/min) |
X:23.5-1180; Y:15-786;Z:8-394 |
Rapid feed rate (mm/min) |
X:2300 ; Y:2300; Z:770 |
No.of feeds (step) |
18 |
Distance between spindle axis table (mm) |
30/350 |
Distance between spindle nose to table surface min./mix. (mm) |
215/470 |
Taper |
7:24(ISO NO.50) |
Spindle step |
18 |
Spindle speed range (r/min) |
30~1500 |
Axial motion (mm) |
85 |
Max rotary angle |
45° |
Main motor power |
7.5 |
Feed motor power |
1.5KW |
Overall size LxWxH) |
2295X1770X1665 |
Weight of the machine (kg) |
2850 |
In addition to all the principal features of horizontal milling machines working table can be swiveled up to 45 degree.
Equipped with dividing head, it can be used for various spirals and especial surfaces such as spur and helical cylindrical gears and flutes of twist drills.
According to customers require, every kind of milling machine can be equipped with digital display.

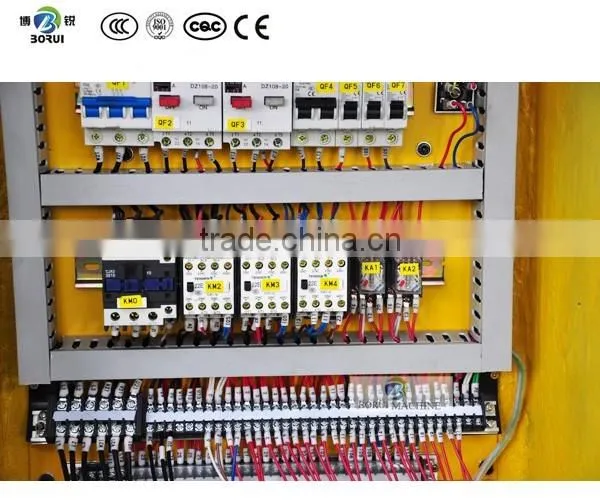

We always use the Siemens and DELIX and so one brand electric compents .

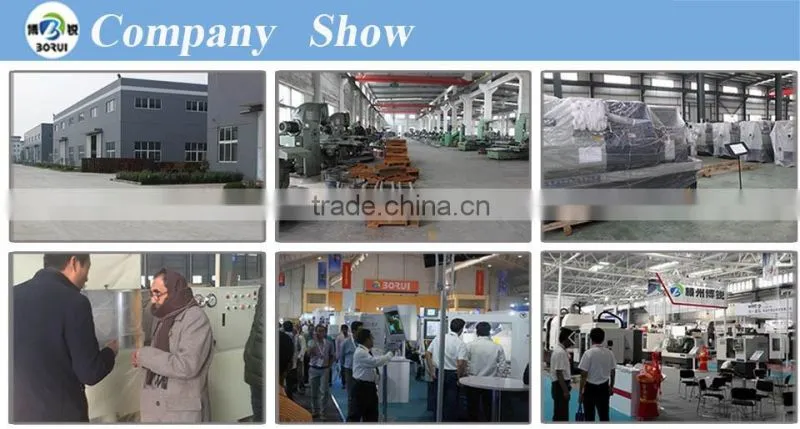

Tengzhou Borui CNC Machine tool Co.,Ltd is an integrated company ,which set development, production, sales as one .Our factory establishes in 1980 years ,have over 30 years history ,what's more ,we are comprehensive manufacturer.
Our Company’s CNC lathe, machining center, drilling machine, hydraulic machine and other products export to many countries. Especially in Egypt, Saudi Arabia, Turkey ,we have good customer base, also export to South America and other countries.
The company with innovative ideas that developing market, and
always with good quality. Reasonable price, accurate delivery and quality service ,we set a good image in the customer .
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Q: How do we confirm the accuracy and performance of machines?
A: (1) Regarding the performance ,we could produce a workpiece for your consult ,which will be produced according to the customer's sample that send to us.
(2)You could inspect machine accuracy by online video
(3)You also could check our factory and machine quality by SGS or other Inspecting Authority.
Q: Can you change the voltage of machine?
A: Sure,we can , We can change the voltage according to different area. 110V-220V-380V-400V-440V
Q: What's the delivery time after payment ?
A: It need about 30 days if the machine is customized .and it just need about 20 days if your machine is universal .
Q: How long is your quality guarantee period?
A:One year, if machine has problem, we will provide accessories in free, in the meantime, we can use DHL or TNT express delivery.
We guarantee that if customers have questions, we will reply within 8 hours, and develop a set of complete solutions according to customers’ problems.

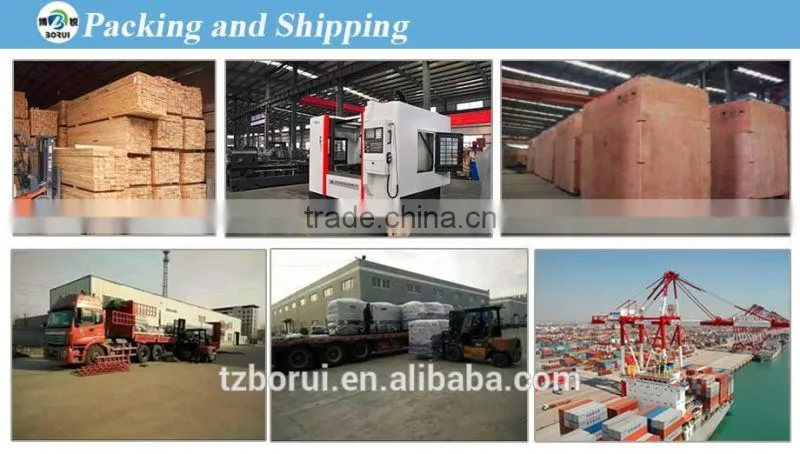

For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Plywood
