China Knee Type Milling Machine With CE

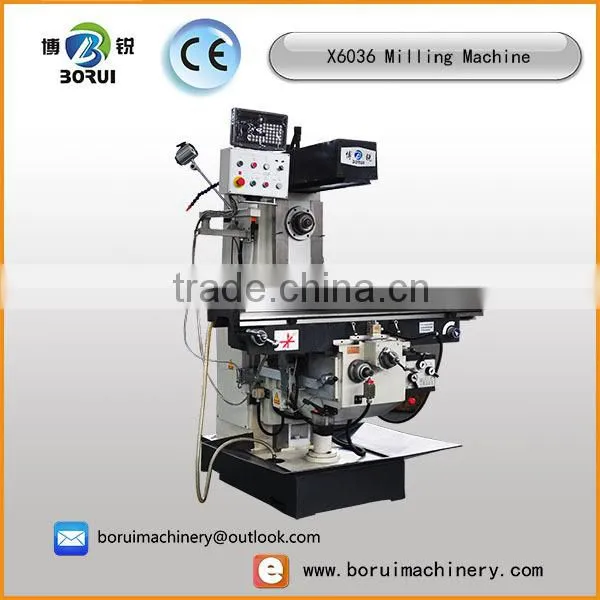

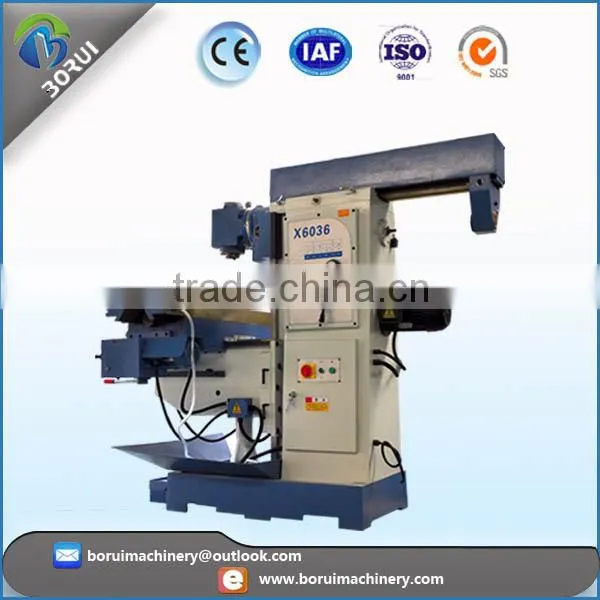

X6036 Milling Machine Feature :
1.The spindle rigidity, strong bearing capacity, the bed is a rectangular guide bed, good stability
2.The Milling Machine Table X - Y- Z three for automatic feeding

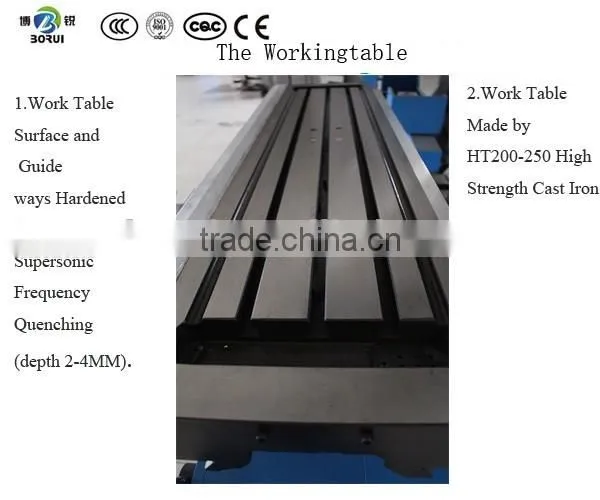

3.X, Y, Z three direction guide super audio quenching, precision grinding.
4.The configuration of special accessories: vertical milling head, which realize the milling function.
Model |
Unit |
X6036 |
X6036A |
X6036B |
Spindle taper |
|
7:24 ISO50 |
7:24 ISO50 |
7:24 ISO50 |
Distance from horizontal spindle to worktable |
mm |
0-440 |
0-380 |
0-350 |
Distance from horizontal spindle to supporting |
mm |
175 |
175 |
175 |
Spindle speed range |
r/min |
60-1800(12steps) |
60-1800(12steps) |
60-1800(12 steps) |
Table size |
mm |
1250X360 |
1250*360 |
1250×360 |
Table travel(x/y/z) |
mm |
600/250/440 |
600/320/380 |
1000/320/350 |
Worktable longitudinal/cross power feed |
mm/min |
18-555(8 steps) |
22-550(8steps) |
15-370(8 steps) |
Vertical up-down(z axis) speed table |
mm/min |
|
590 |
590 |
T-slot NO./width/distance of rotary table |
mm |
3/14/95 |
3/18/80 |
3/18/80 |
Cantilever travel |
mm |
500 |
500 |
500 |
Main motor |
kw |
4 |
4 |
4 |
Motor for rapid device of table |
w |
550 |
750 |
0.75 |
Motor of lifted table |
w |
|
1100 |
1.1 |
Motor of cooling pumps |
w |
90 |
90 |
90 |
Speed of cooling pumps |
L/min |
25 |
25 |
25 |
N.W/G.W. |
kg |
1850/2050 |
1900/2200 |
2100/2400 |
Overall dimension |
mm |
2220X1790X1700 |
1880X1700X1700 |
2220×1790×1700 |
Standard accessories |
Optional Accessories: |
1.Drill chuck |
DRO on X, Y, Z--AXIS |
2.Mill chuck |
Clamping kit |
|
3.Inner hexagon spanner
|
Universal dividing head |
|
4.Work light 5.Reduction sleeve
|
Rotary work table. |
|
6.Draw bar
|
|
|
7.Spindle arbor
|
|
|
8.wrench
|
|
|
9.Machine vice
|
|
10.Horizontal milling arbor |
The slider is lengthened, making the maximum stroke to 1000X320mm

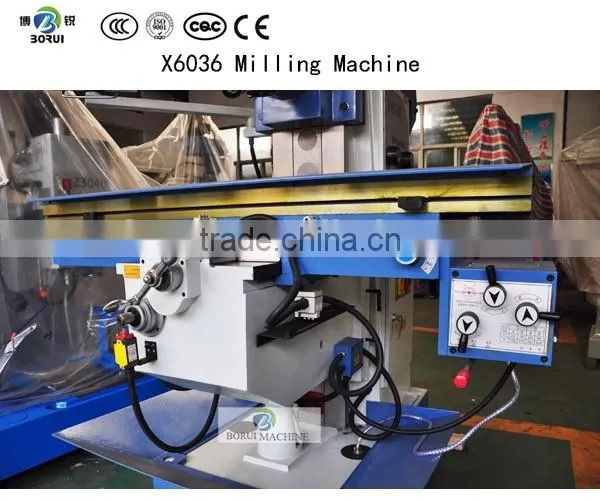

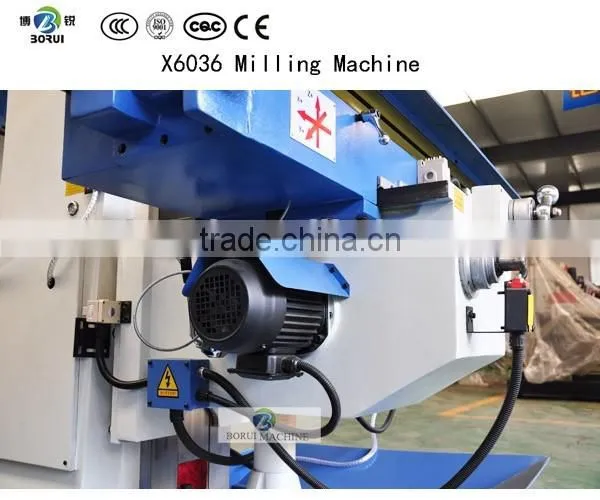

Lift motor the configuration of the machine Implements the machine X, Y, Z, three automatic feed

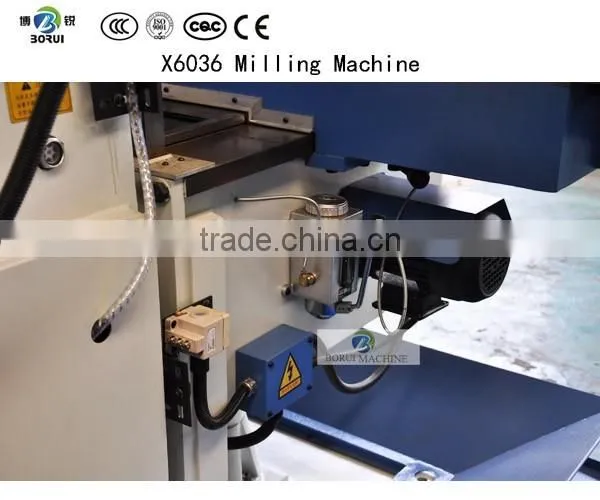

The centralized lubrication configuration at the bottom of the sliding block prolongs the service life of the machine tool
Tengzhou Borui CNC Machine tool Co.,Ltd is an integrated company ,which set development, production, sales as one .Our factory establishes in 1980 years ,have over 30 years history ,what's more ,we are comprehensive manufacturer.
Our Company’s CNC lathe, machining center, drilling machine, hydraulic machine and other products export to many countries. Especially in Egypt, Saudi Arabia, Turkey ,we have good customer base, also export to South America and other countries.
The company with innovative ideas that developing market, and
always with good quality. Reasonable price, accurate delivery and quality service ,we set a good image in the customer .
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Plywood
Q: How do we confirm the accuracy and performance of machines?
A: (1) Regarding the performance ,we could produce a workpiece for your consult ,which will be produced according to the customer's sample that send to us.
(2)You could inspect machine accuracy by online video
(3)You also could check our factory and machine quality by SGS or other Inspecting Authority.
Q: Can you change the voltage of machine?
A: Sure,we can , We can change the voltage according to different area. 110V-220V-380V-400V-440V
Q: What's the delivery time after payment ?
A: It need about 30 days if the machine is customized .and it just need about 20 days if your machine is universal .
Q: How long is your quality guarantee period?
A:One year, if machine has problem, we will provide accessories in free, in the meantime, we can use DHL or TNT express delivery.
We guarantee that if customers have questions, we will reply within 8 hours, and develop a set of complete solutions according to customers’ problems.
