SINOSUN machinery is a professional asphalt mixing plant, Bag house dust collector is main components in asphalt mixing plant .

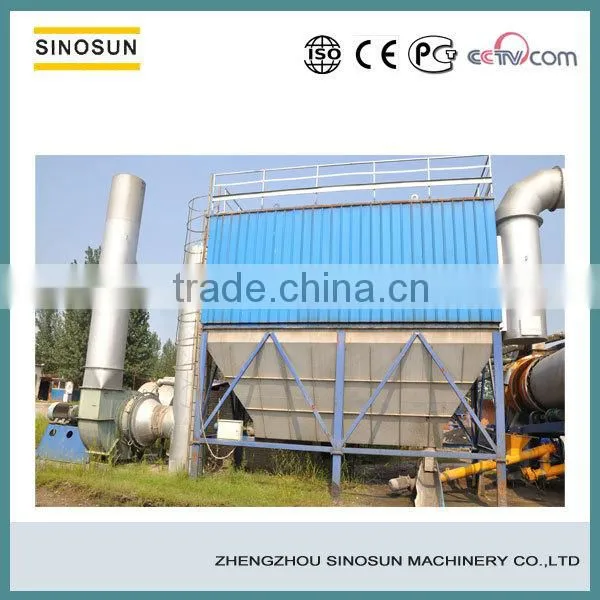

Bag filter is one of the most important parts of asphalt mixing plant. It is general supporting use of cyclone dust filter (primary dust filter) to collecting cyclone can't collect the very small dust. For there is more and more strict environmental protection requirements, bag filter began to use more widely for asphalt mixing plant. The dust it collected is called “secondary recovery powder”.
Bag filter mainly used for the dust collection system of asphalt mixing plant, crushing machine, grinding machine, dryer, furnace, and so on
Level I: gravitate dust collecting(≥0.075mm).
The return filler done by the gravitate dust collecting is conveyed by screw conveyor into Hot Aggregate elevator to satisfy the need of finished product.
Efficiency: ≥85%
Screw conveyor: 3kW
Level II: bag filter;

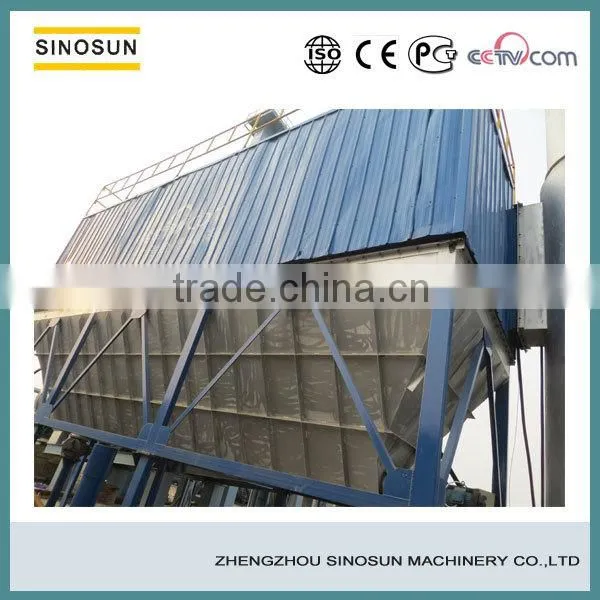

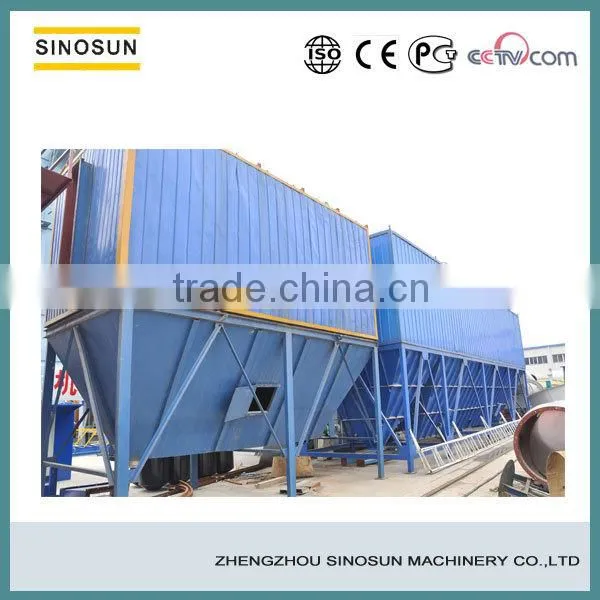

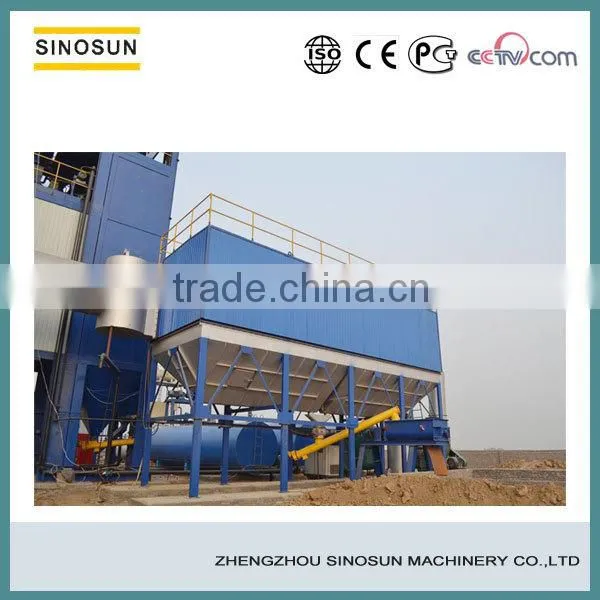

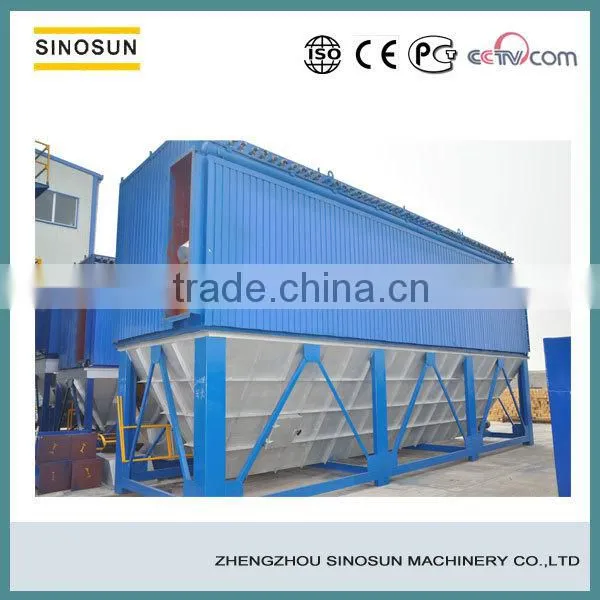

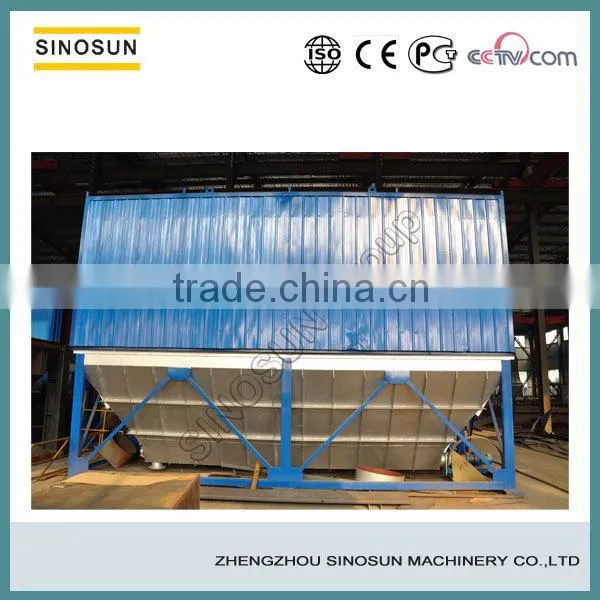

It consists of upper section and lower section, upper section consists of bag filters, the lower section is for dust collection. The air pulse from inside of bag blows the dust out of bag. The collected dust is delivered to reclaimed filler silo or discharged via screw conveyor.
Bag: weight: 500 g/m2
Filter area: 510m2
One set screw conveyor installed inside the lower section
Chimney set upright, about 20m away from the ground
Emission: ≤20mg/Nm3(Nominal working condition)
Dust blackness: 1 degree
No. |
Name |
Specification |
Power |
Q’ty |
Total power |
1 |
Vent |
|
90kw |
1 |
90kw |
2 |
Screw conveyor |
|
5.5kw |
1 |
5.5kw |
3 |
Level 1 reclaim |
273 |
3kw |
2 |
6kw |
4 |
Bag reclaim |
273 |
5.5kw |
1 |
5.5kw |
5 |
Damper motor |
|
0.03kw |
1 |
0.03kw |
