China Supplier Hot SAP Series Asphalt Mixing Plant 40-400TPH
SAP series Stationary Asphalt Mixing Plant own wide adaption range and ideal for middle and large projects.
Batch type asphalt plants for sale.
We are professional asphalt batching plant manufacturer.
Supply various capacity stationary asphalt plants for different projects across the world.
SINOSUN asphalt plant is designed for international market and personalized customer demand, with a wide facility choice from 40 TPH to 320 TPH.
SAP series asphalt hot mix plant is the final solutions for customer requirement of quality, environment-friendly and economically investment.
With complete set of accessories,SINOSUN asphalt batch mix plant can process different material,10%-35% RAP, modified bitumen emulsified bitumen etc ,and also produced special products,such as stone mastic asphalt,colorful asphalt ,additives of liquid ,fibers of granular or cotton-shaped.

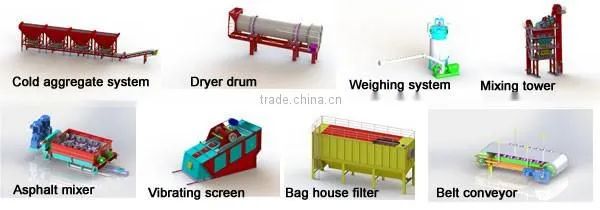

Main components of SAP series stationary asphalt mixing plant:
Cold aggregate supply system
Drying system
Dust collection system
Mixing tower
Vibration screen system
Weighing unit
Mixer
Asphalt heating storage system
Mineral powder system
Control system
Technical parameter of SAP series asphalt mixing plant
Model |
SAP40 |
SAP80 |
SAP100 |
SAP120 |
SAP160 |
SAP200 |
SAP240 |
SAP320 |
|
Rated capacity(T/H)
|
40 |
80 |
100 |
120 |
160 |
200 |
240 |
320 |
Standard condition | ||||||||
|
Total power(kw)
|
146.92 |
247.92 |
272.92 |
344.07 |
401.12 |
495.32 |
620 |
810 |
Standard configuration | ||||||||
Cold aggregate kinds |
4 |
4 |
4 |
4 |
4 |
5 |
5 |
6 |
|
Rated drying capacity
|
40 |
80 |
100 |
120 |
160 |
200 |
240 |
320 |
5% moisture | ||||||||
Mixing cycle |
45S |
45S |
45S |
45S |
45S |
45S |
45S |
45S |
Mixer volume(kg) |
500 |
1000 |
1300 |
1500 |
2000 |
2500 |
3000 |
4000 |
|
Vibration screen
|
4 |
4 |
4 |
4 |
4 |
5 |
5 |
6 |
Single axle circle vibrating screen |
Double axle circle vibrating screen |
|||||||
Fuel consumption |
≤6.5kg/t finished product |
|||||||
|
Fuel type
|
Heavy/ Light oil |
|||||||
Coal burner is optional | ||||||||
Control mode |
Manual/ Automatic |
|||||||
Finished product temperature |
140-180°C |
|||||||
|
Aggregate weighting precision
|
±0.5% |
|||||||
Dynamic | ||||||||
|
Mineral weighting precision
|
±0.5% |
|||||||
Dynamic | ||||||||
|
Bitumen weighting precision
|
±0.3% |
|||||||
Dynamic | ||||||||
Dust control way |
Primary cyclone dust collection,secondary bag dust collection |
|||||||
Exhaust emission concentration |
≤20mg/Nm3 |
|||||||
|
Finished product bin
|
Bottom placed/side placed |
|||||||
Optional | ||||||||
SINOSUN is one of China’s dominant manufacturers and exporters of Precisioned Asphalt Batch Mix Plants and related asphalt batching plant parts.
For over years, SINOSUN has supplied the asphalt industry with high quality asphalt batching plant parts and equipments.
SINOSUN's asphalt solutions including asphalt batching plants are cost effective, user friendly, easy to maintain and strong after - sales services. SINOSUN is equipped with most modern and mature factory setup to produce high quality asphalt batching plant.
Due to the diverse product range and sufficient production capacity, SINOSUN could be able to meet various needs of our customers.
We mainly supply:
1.Stationary asphalt batching plant (SAP series)
2.Mobile asphalt mixing plant ( MAP series)
3.Twin-shaft asphalt mixing plant (QLB series)
4.Twin-drum asphalt mixing plant (SLB series)
5.Continuous asphalt mixing plant (CAP series)
Our asphalt plants have been widely used in home and abroad road construction project, such as Russia, Romania , Poland , Brazil , Philippines , Indonesia etc. In Africa , we have exported to Ethiopia , Angola , Algeria and Libya.
After Sale Service
1. Turn-Key Solutions
2. Erection & Commissioning Service
3. Operation Training Service
4. Spare Parts Supply (all working life)
