Production Description
1. Production Name: SMC sectional panel water tank for water treatment
2.Introduction
SMC sectional panel water tanl is currently used in new international water tank, By the overall quality of SMC water tank board joining together. Its characteristic is to use the food grade resin, so good, clean water pollution; It has advantages of high strength, ligh weight, corrosion resistance and beautiful outlook, long service life, maintenance management.
The water tanks production in our company, using high quality board, with 500T hydraulic press mould different unit plate:1000mm×1000mm;1000mm×500mm;500mm×500mm
3 Panel Parameters
project |
Performance index |
Tensile strength,Mpa |
≥60 |
Bending strength,Mpa |
≥100 |
Bending modulus,Gpa |
≥7.0 |
Pap hardness |
≥60 |
Bibulous rate,% |
≤1.0 |
Glass fiber content,% |
≥25 |
4 Water tank performance
project |
requirements |
leakage |
No leakage after filled with water |
Full of water deformation |
Filled with water, wall maximum deformation after no more than 1.0% of the tank bottom center height, no more than 10 mm maximum deformation |
Water quality |
Accord with GB5740 |
5 SMC water tanks are suitable for use in the following applications
1) Potable Water Storage (drinking water)
2) Rainwater Harvesting & Storage
3) Emergency Water Storage
4) Pump Chambers
5) Effluent treatment & Storage
GRP tank panels are Hot Press Molded on Hydraulic compression presses.
Using stainless steel for the interior structure and plated steel for the exterior, the panel exhibits excellent resistance to erosion.

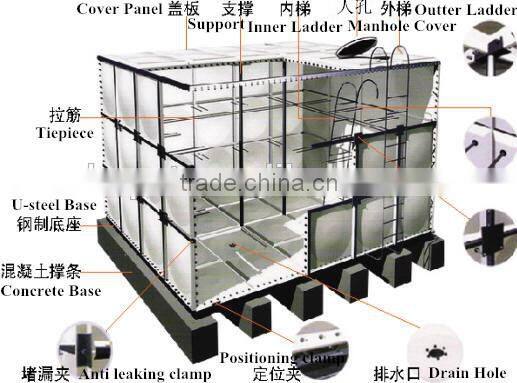

6 Inner structure
