Product Description
1 Product Name: FRP electrolytic cells
2 Typical cell construction features
FRP electrolytic cells are manufactured with a proprietary "tri-stratum polymer composite material". This material consists of three monolithically bound layers.
1) An electrolyte FRP seal or chemical barrier
2) A structural core made with Hyperbonded polymer concrete (aggregate reinforcement grading according to US Pat. #6143219)
3) An external FRP seal
3 Benefits
1, Guarabreed long-term impermeability,Free of Corrosion
Designed with a monolithic impermeable internal tank manufactured with multiple layers of fiber- reinforced premium vinylestered resin .the specifications for this internal tank have been validatedby procen impermeability and corrosion-free service for over 40 years in the chemical processing industries worlswide.
2, Minimum Cleaning Time and Water Consumption
The rounded internal shape ,optional sloped cell floors,and smooth ,flat finish of the internal tank,facilitate water sweeping and drainage of heavy sludge ,with reduced water usage and accelerating return to service after each cleaning ..
3, Key Accessories integrated with cell Engineering.
Designs and manufactures cell thermal insulation ,capping board and electrolyte agitation systems that can be incorporated in the cells ,enhancing overall satety ,cathode quality and tank house productivity.
4 Physical Properties Table
Property |
Intex |
Compression strength |
70~100MPa |
Flexural strength |
20~25 MPa |
Young’s flexural modulus |
17GPa |
Shear strngth |
~45MPa |
Density(standard hammered) |
2.25kg/m³ |
Volume resistance |
3.4*1012Ωcm |
Dielectric strength |
3.6KV/mm |
Thermal conductivity |
1.37w/mk |
Specific heat |
800J/kgk() |
Thermal expansion coefficient |
18-20*10-6m/m/°C |

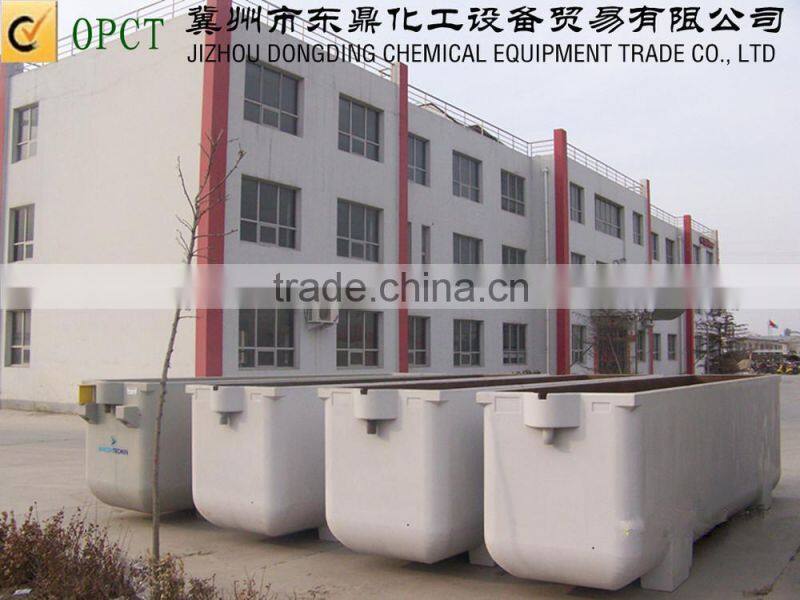

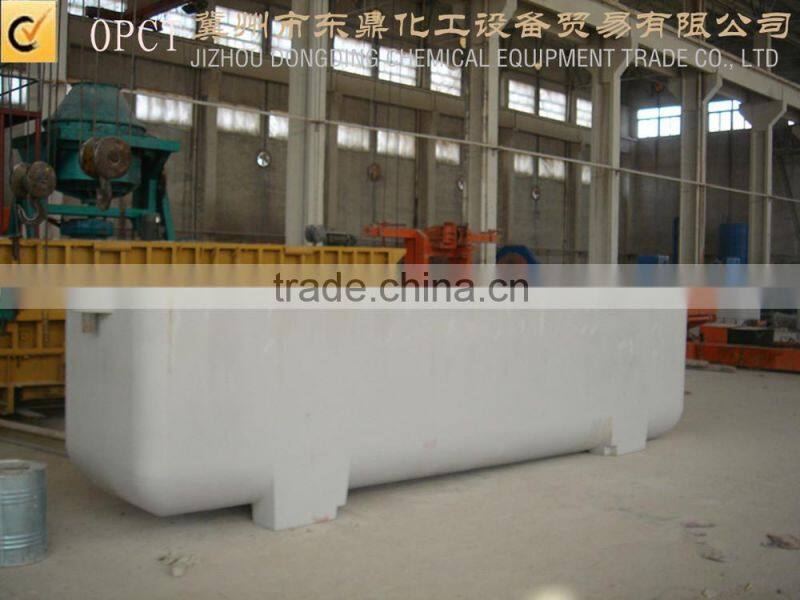

Product Pictures
001
002
