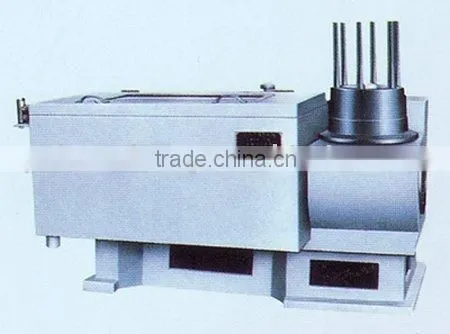

Water Tank Drawing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Wire Drawing Machine
Use:
Wire
Place of Origin:
Hebei, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Type
Wire Drawing Machine
Use
Wire
Place of Origin
Hebei, China
Brand Name
bolide
Specifications
Vertical type wire drawing machine, LT-9/550 heavy Water Tank Drawing Machine LT-15/350 Water Tank Drawing MachineMachines of thisseries consist of Dry-drawing Machines,Water-tank Drawing Machines of varieties and Auxiliary Facil-ities,suitable for drawing low&high carbon steel wire,brass&aluminiun wire which are the main materials for production of galavanized iron wire & nails,wire newire ropes,Cable Wire and etc.New models or revised design are also possible upon request.
Main Specification of Water Tank Drawing Machine :
NO. |
Specifictions/ Model |
LT-9/550 |
LT-11/450 |
LT-15/350 |
LT-11/250 |
|
1 |
dia of takeup wheel |
mm |
550 |
450 |
350 |
250 |
2 |
Draw die |
8 dies |
11 dies |
15 dies |
15 dies |
|
3 |
Max.incoming diameter |
mm |
3.2-5.6 |
8.0( Brass)/ 3.8-4.0( Steel ) |
2.8 |
1.7 |
4 |
Outgoing diameter |
mm |
1.4-3.0 |
3.0( Brass )/1.5-1.6( Steel ) |
0.6-0.8 |
0.4-0.6 |
5 |
Total compressibility |
% |
80 |
84 |
91 |
88 |
6 |
Average partial compressibility |
% |
18.25 |
15 |
15 |
15 |
7 |
Drawing speed |
m/s |
4.17 |
6 |
7 |
7 |
8 |
Motor power |
kw |
132 |
60-80 |
30-45 |
18.5-22 |
9 |
Overall dimension |
mm |
5980×3500×1840 |
5780×3300×1640 |
2600×1300×1250 |
2600×1300×1350 |
10 |
Weight |
kg |
1400 |
9000 |
2650 |
2400 |
