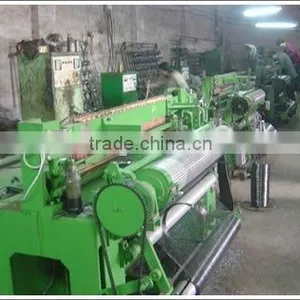

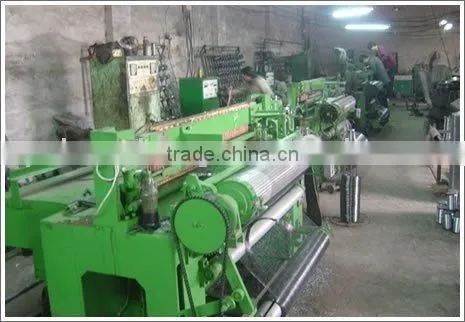

Shuttless weaving machine
- 20 Set / Sets per Month
- Tianjin
- T/T
- Optimized dutch weave wire mesh weaving machine from LANYING 3000mesh
- State-of-art Metal Wire Weaving Machines from LANYING
- Advanced CNC Metal Wire Mesh Weaving Machines from CHINA LANYING
- Plastic leno mesh bag circular loom
- Plastic leno bag circular loom
- Vamatex Leonardo rapier loom-220cm Year 2000 used rapier loom Staubli 2670 dobby with 16 shafts location in China
Product Details
Type: | Shuttle Loom | Place of Origin: | Hebei, China |
Product Description
Specifications
Shuttless weaving machine(stainless steel wire mesh weaving machine):Main Parameter:
I. Width of fabric: max.1600mm
Shuttless weaving machine(stainless steel wire mesh weaving machine):
This is a new machine newly developed by our company .It can also make plain weave and twill weave. Its work force strong, and strongly carrying capacity, widely density range.
Shuttleless Weaving Machine
Main Parameter:
I. Width of fabric: max.1600mm
II. Thickness of fabric: 30-400mesh(square holes gauge) - 2800 mesh (special gauge)
III. Crank shaft rotating speed: 72 rpm
IV. Power of motor: 4 KW, Rotating speed of motor: 1420 rpm
V. Total weight: 3200 kgs
VI. Total measurement: 2930 x 3150 x 1270mm
Main Parameter of the shuttleless weaving machine:
Scope of weaving: max.1600mm
Scope of mesh: Square holes gauge: mesh 10-100/inch
Special mesh: mesh 40-350/inch
Crank shaft rotating speed: 53 r/m
Power of motor: 4 KW
Total weight: 6155 kgs
Total measurement: 2569 x 3535 x 1849mm
We can supply other specifications according to the customer's require
