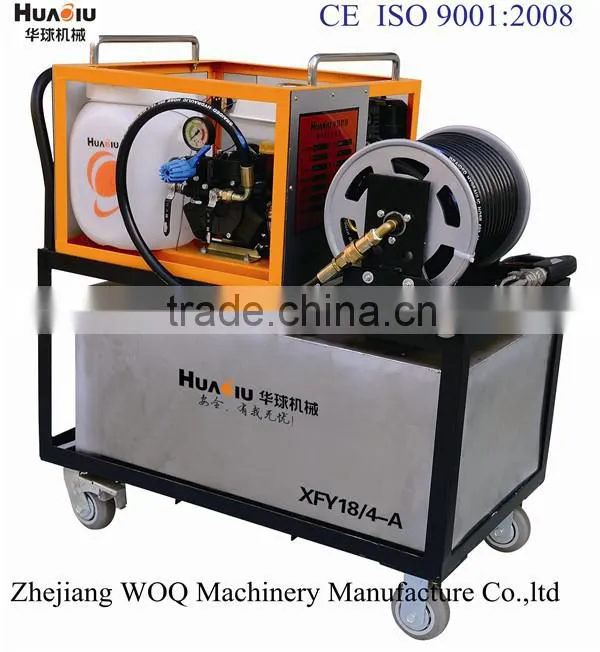

1.Firefighting Equipment Supplier Firefighting Water Mist Nozzles Water Mist device Descriptions
Firefighting Equipment Supplier Firefighting Water Mist Nozzles Water Mist is powered by HONDA engine and BROOWE pumps.It can work constantly for a long time. It is easy to be equipped on any types of vehicles for a fast extinguishing battle. Nozzles Water Mist can promote decuple effectiveness connecting with traditional fire vehicles. The most important is this XFY18/4 Water Mist device can spray out not only bubble jet for a long distance extinguishment but also water mist for a short distance in a fast speed.
2.Firefighting Equipment Supplier Firefighting Water Mist Nozzles Water Mist device Application
Firefighting Equipment Supplier Firefighting Water Mist Nozzles Water Mist is mainly used by professional fire brigade, large petrochemical enterprises, military and any other business scopes.It is very popular on vital functions for extinguishing works in civilian fire, B type fire and fire situations with higher requirements(such as airports, military warehouse, cultural relic sites and so on.).
Firefighting Equipment Supplier Firefighting Water Mist Nozzles Water Mist is able to put out fire of class A, B, E (Electrical fire). Suitable to be used at railway stand, warehouse, manufacturing shop, computer rooms, petroleum& petrochemical key sites, supermarket and star-rated hotels for firefighting safeguard.
3.Firefighting Equipment Supplier Firefighting Water Mist Nozzles Water Mist device Features
*Small volume which can be carried on light vehicle or water tanker;
* Nozzles Water Mist has multi-functions of both jet and mist spraying;
*No need operator after startup. We can figure out whether it is working or not by spraying situation. Nozzles Water Mist can save labor and fuel, promoting the working life of the device.
*Automatic foam adding system, computer control, 1%-6% adjustable.
* High strength, flame retardant, and wear-resisting rubber hose, can work under the high temperature of 500ºC for 30 mins.
* Nozzles Water Mist has flexible configuration scheme, can be carried on all kinds of vehicles, multi-functional extinguishing methods and effects, also can be used alone.
4.Firefighting Equipment Supplier Firefighting Water Mist technical parameters:
Model |
XFY18/4-A |
Size |
670*640*480mm |
Engine Model |
GX160 |
Power |
5.5HP/3600rpm/Min |
Starting way |
Recoil/Electric start |
Pump set |
BROOWE |
Pump set model |
FM430 |
Max flow |
40L/Min |
Rated pressure |
40Bar |
Speed |
650 rpm |
Transmission way |
Gear box |
Transmission ratio |
6:1 |
Straight flow state range |
15-20m |
Water mist state range |
12m |
Hose length |
25m |
Inside dia of the hose |
Φ13 |
Outside dia of the hose |
Φ20.5 |
Length of nozzle |
350mm |
Liquid |
water/foam |
Foam tank |
15L |
Water tank |
200L |
Net weight |
120kgs (include the steel coil and tank) |

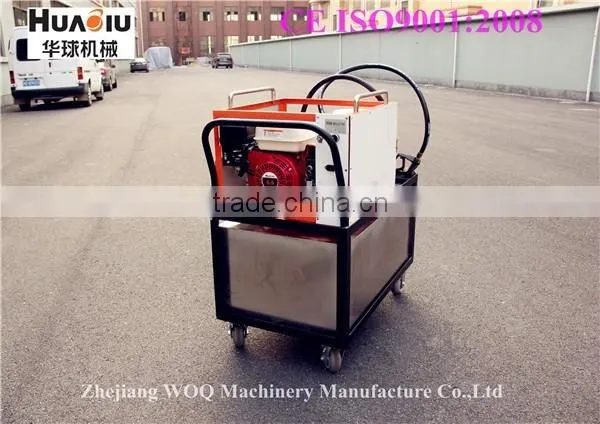

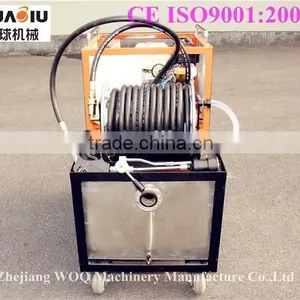

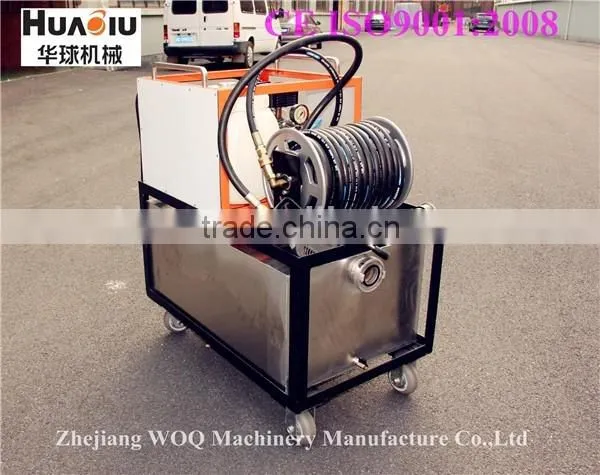

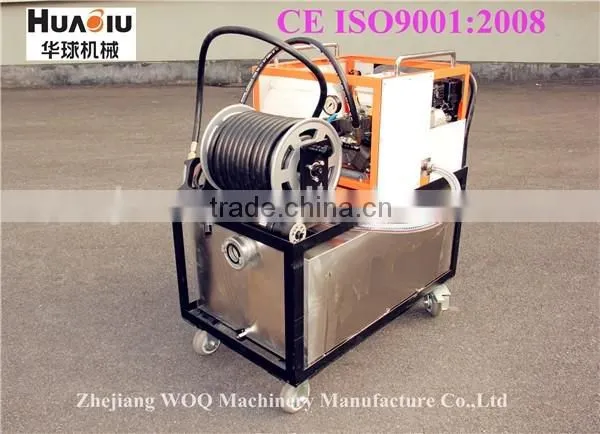

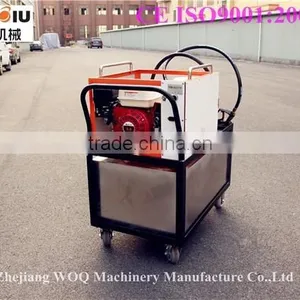

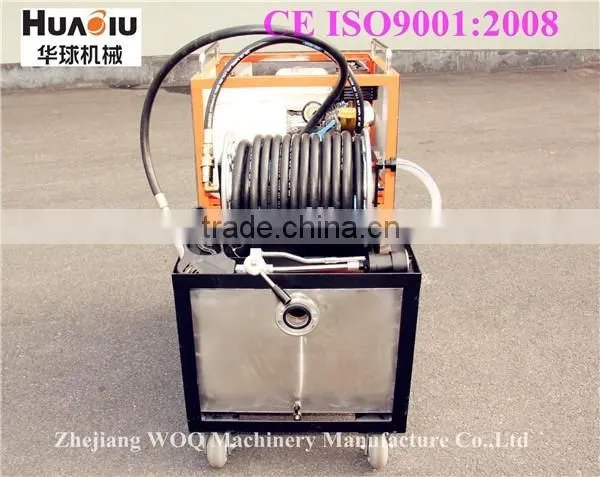

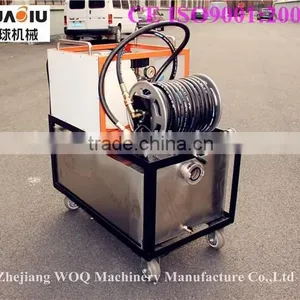

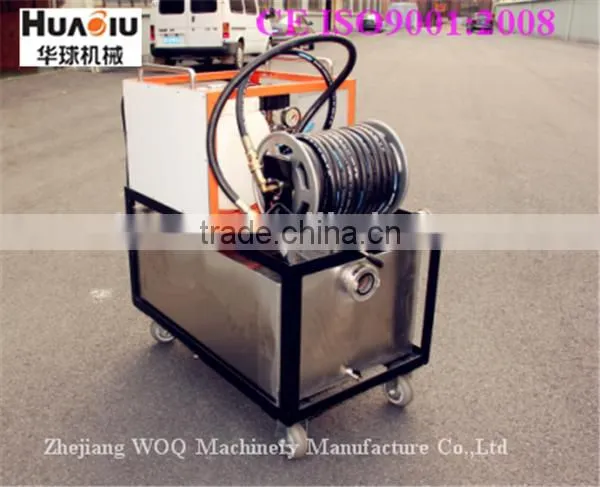

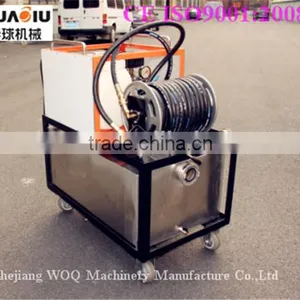

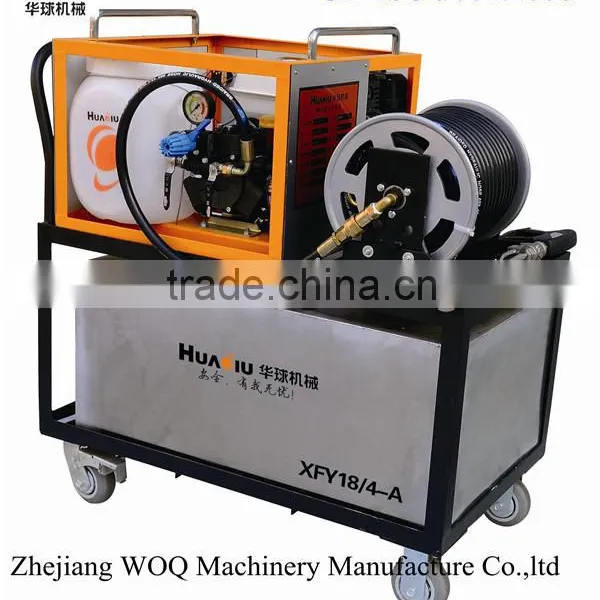

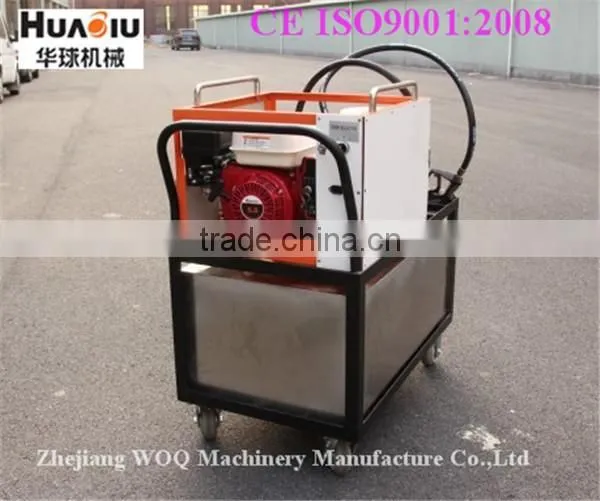

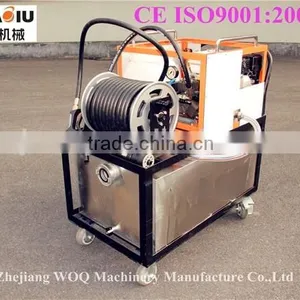

5.Firefighting Equipment Supplier Firefighting Water Mist pictures
6. Firefighting Equipment Supplier Firefighting Water Mist Packing and delivery:
Packing details: Pumps will be packed in plywood case with dust-proof
Delivery: within 4 weeks after the deposit.
7.Firefighting Equipment Supplier Firefighting Water Mist Nozzles Water Mist device workshop pictures
5. Firefighting Equipment Supplier Firefighting Water Mist Nozzles Water Mist device Certificates
