HUAQIU Gasoline Engine Fire Pump Set -----BJ-10G

HUAQIU Gasoline Engine Fire Pump Set -----BJ-10G photo-1
HUAQIU Gasoline Engine Fire Pump Set -----BJ-10G photo-2
HUAQIU Gasoline Engine Fire Pump Set -----BJ-10G photo-3
HUAQIU Gasoline Engine Fire Pump Set -----BJ-10G photo-4
HUAQIU Gasoline Engine Fire Pump Set -----BJ-10G photo-5
HUAQIU Gasoline Engine Fire Pump Set -----BJ-10G photo-6
US$ 1 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WOQ/HUAQIU
Model Number:
BJ-10G(JBQ5.0/10)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name WOQ/HUAQIU
Model Number BJ-10G(JBQ5.0/10)

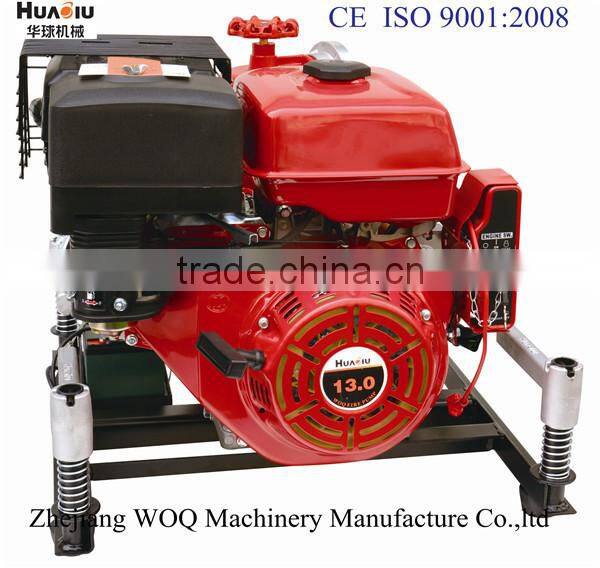

1.HUAQIU Gasoline Engine Fire Pump Set -----BJ-10G  is powered by LF188F high efficient gasoline engine and the single-level centrifugal pumps of Zhejiang woq Machinery Manufacturing Co., Ltd. It has features of compact structure, start convenient, fast water, low fuel consumption, light weight and reliable, so that is more suitable for using in the narrow roads. It is the ideal equipment for fire extinguishing used in fire brigade, professional fire brigade, forest fire brigade, towns, rural areas, the mining industry and obligation fire brigade

HUAQIU Gasoline Engine Fire Pump Set -----BJ-10G

2. HUAQIU Gasoline Engine Fire Pump Set -----BJ-10G technical parameters

Appearance dimension

650×565×510mm

Device weight

≤62kg

Max capacity

660L/min

Pump head

70m

Out pressure

0.4Mpa

Inlet size

φ65mm

Out size

φ65mm

Dia.of nozzle

φ19mm

Type of inlet

Screw type

Maximum suction depth

7m

Pump priming time

≤20s

Starting way

Recoil/Electric start

Model of engine

13HP,LF188

Pump body

Single stage

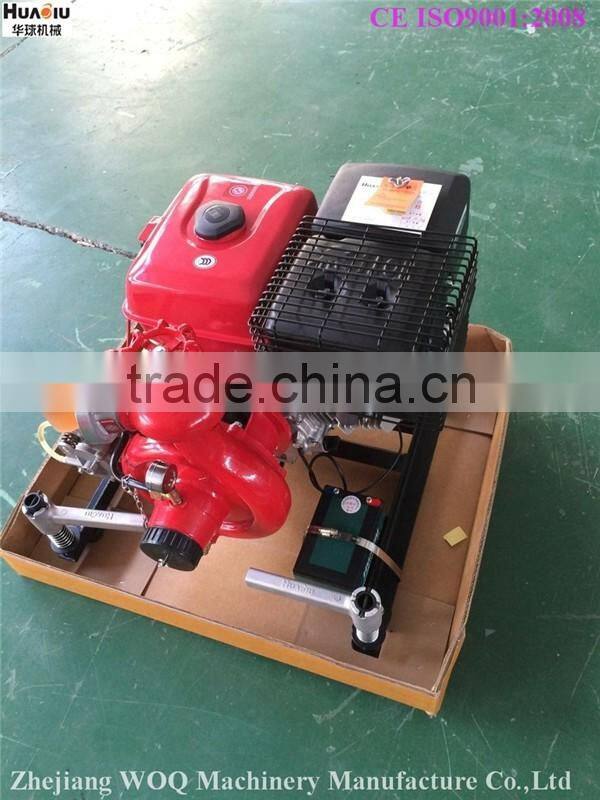

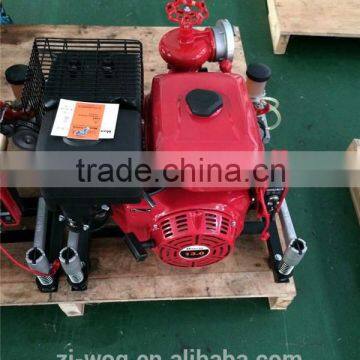

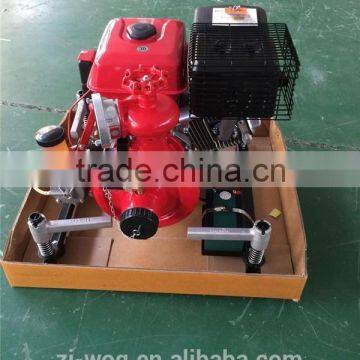

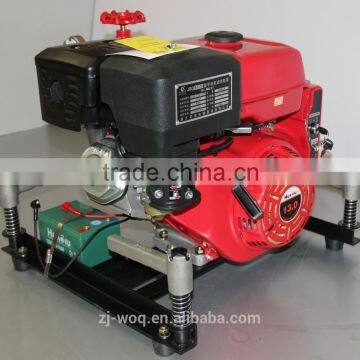

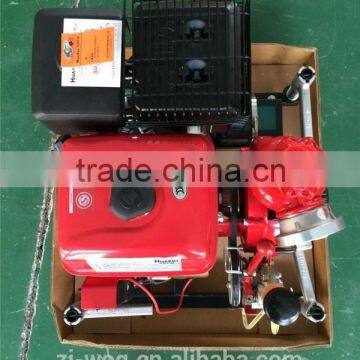

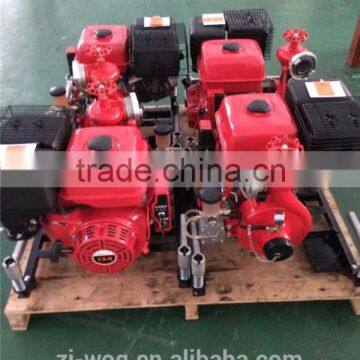

3. Huaqiu BJ-10G portable fire pump pictures

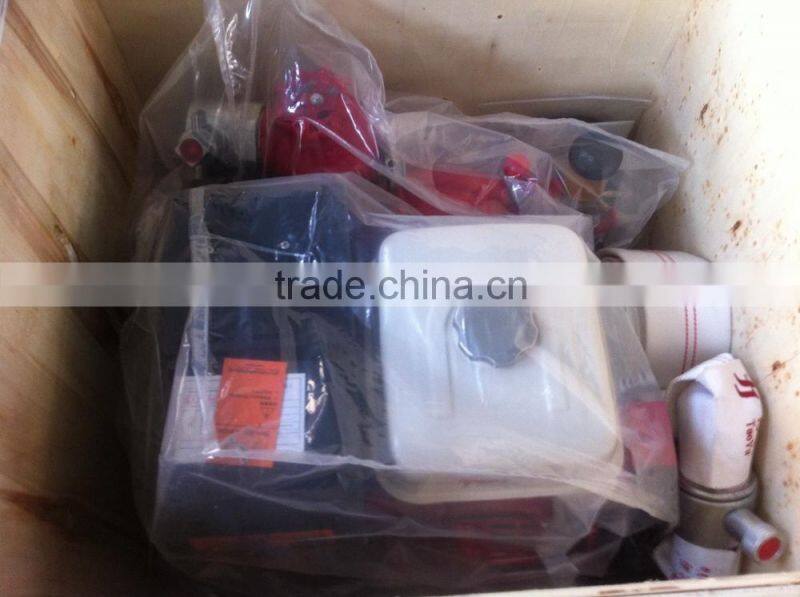

4. Huaqiu BJ-10G portable fire pump  packing:

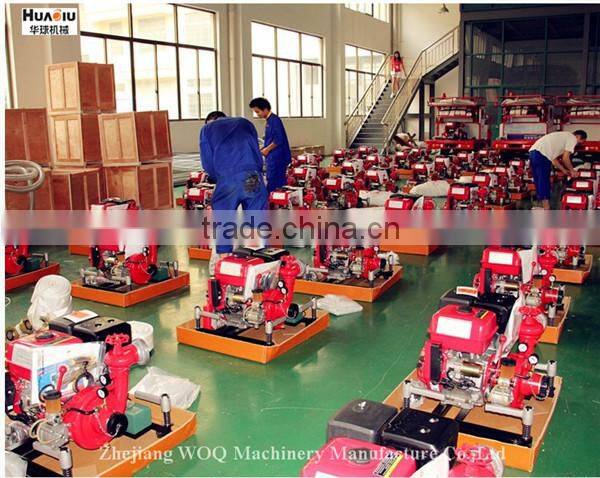

5. Huaqiu BJ-10G portable fire pump factory pictures



5. Huaqiu BJ-10G portable fire pump Certificates
