HUAQIU water mist fire device

Name: HUAQIU water mist fire device
Brand: WOQ/ HUAQIU
Price: USD $1 - 5,000 / Set

FOB Price

USD $1 - $5,000 / Set

1 Set(Min.Order)

Supply Ability 500 Set / Sets per Month
Port Shanghai/Ningbo
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Zhejiang, China

Brand Name:

WOQ/ HUAQIU

Model Number:

XFY18-A

Product Description

1. Descriptions

HUAQIU High pressure water mist fire extinguishing is powered by HONDA engine and BROOWE pumps. It has feature of compact structure,start convenient,fast water,low weight and reliable,so that is more suitable for using in the narrow roads. It is the ideal equipment for fire extinguishing used in fire brigade, professional fire brigade,forest fire brigade,towns,rural areas, the mining industry and obligation fire brigade.

2. HUAQIU High pressure water mist fire extinguishing technical parameters:

Model	XFY18/4-A
Size	670640480mm
Engine Model	GX160
Power	5.5HP/3600rpm/Min
Starting way	Recoil/Electric start
Pump set	BROOWE
Pump set model	FM430
Max flow	40L/Min
Rated pressure	40Bar
Speed	650 rpm
Transmission way	Gear box
Transmission ratio	6:1
Straight flow state range	15-20m
Water mist state range	12m
Hose length	25m
Inside dia of the hose	Φ13
Outside dia of the hose	Φ20.5
Length of nozzle	350mm
Liquid	water/foam
Foam tank	15L
Net weight	88kgs (include the steel coil)

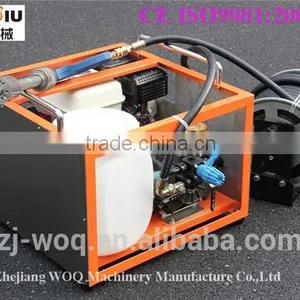

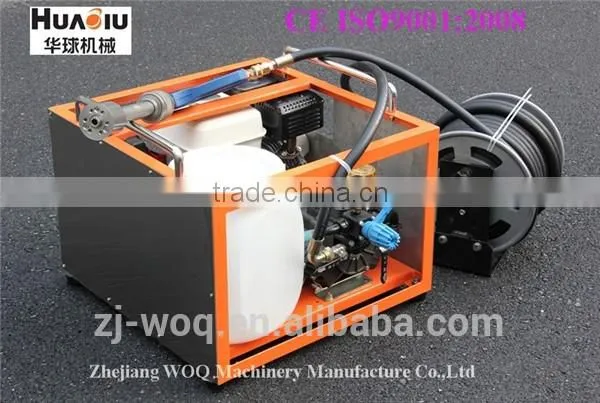

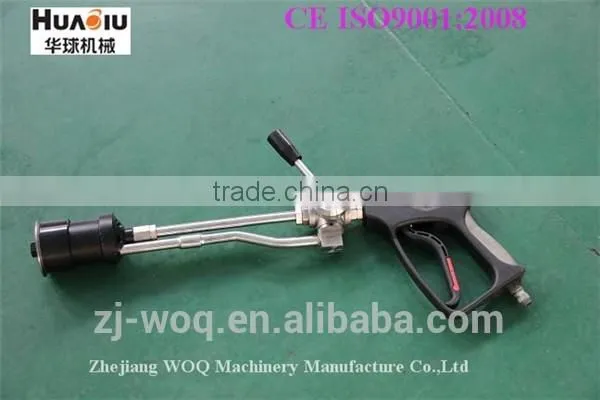

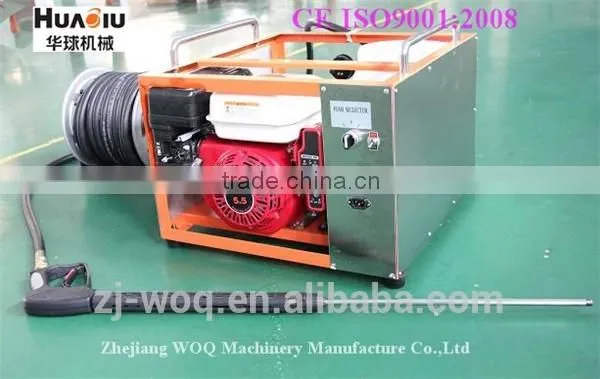

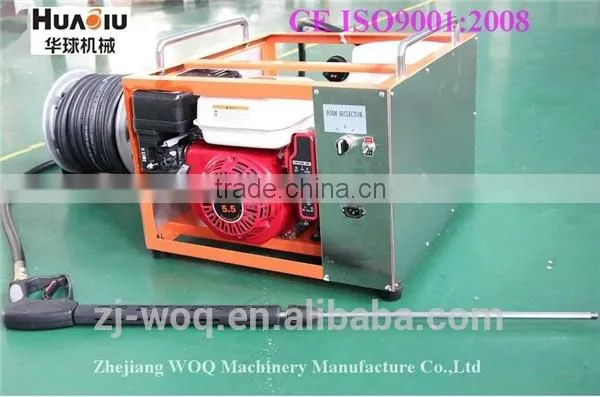

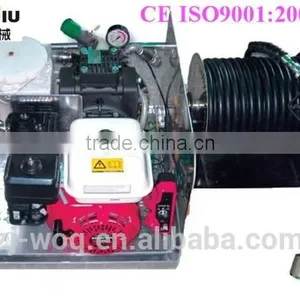

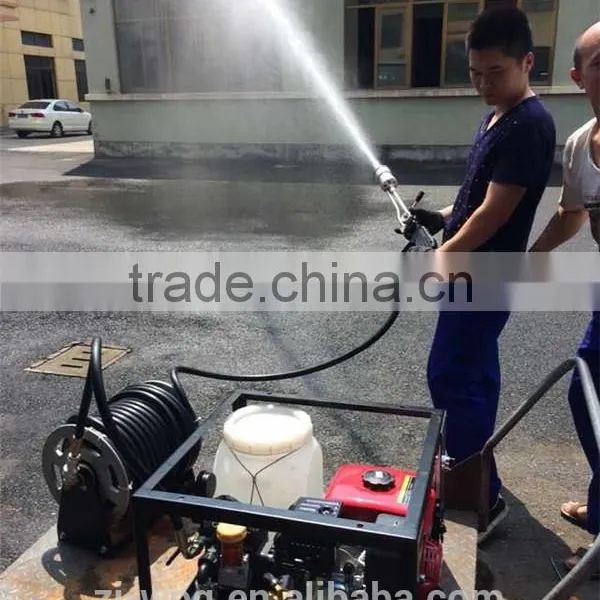

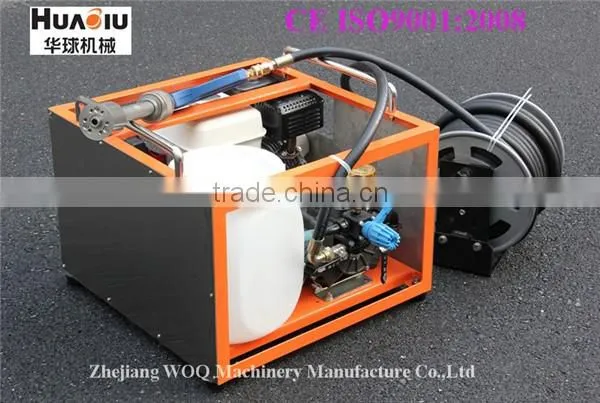

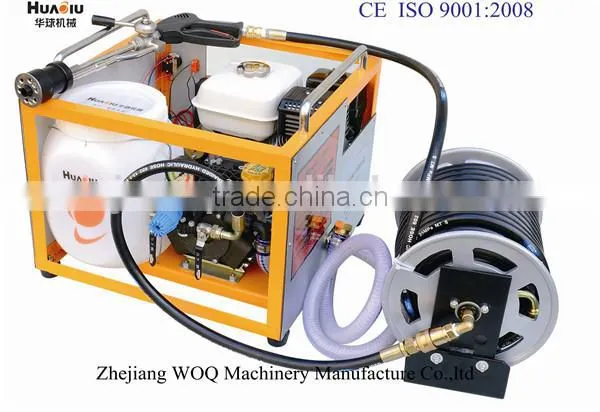

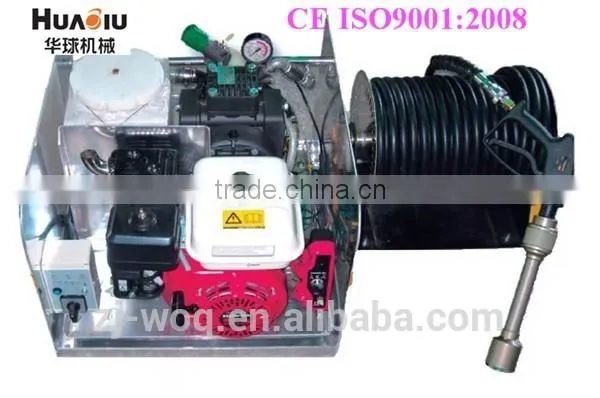

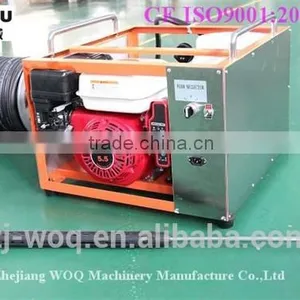

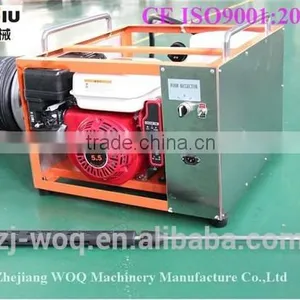

3. HUAQIU High pressure water mist fire extinguishing pictures

4. HUAQIU High pressure water mist fire extinguishing Packing and delivery:

Packing details: Pumps will be packed in plywood case with dust-proof

Delivery: within 4 weeks after the deposit.

5. HUAQIU High pressure water mist fire extinguishing workshop pictures

5. HUAQIU High pressure water mist fire extinguishing Certificates
