High lumens ip67 led street light module 15w 20w
| PRODUCT INFORMATION |
Led module information:
| Item No.: | DZMZ-6 |
| Power: | 7-20W |
| Input voltage: | DC 16-21V |
| Rated current: | 350-900mA |
| Led chip: | Seoul Semiconductor |
| LED quantity: | 6pcs |
| Working temperature: | -25-45℃ |
| Power factor(PF): | >0.95 |
| Color temperature CCT: | 2700-6500K |
| CRI: | >70 |
| Luminous: 6000lm | 6000lm |
| Light efficiency: | 100lm/w |
| Protect rating: | IP67 |
| Life span: | 50,000 hrs |
| Heat sink: | Aluminum alloy |
| Light distribution: | Bat wing |
| Quality warranty: | 3 Years |
FEATURE
1. Golden and Silver Color heat sink for your choice;
2. IP67 Waterproof level, suitable outdoor lighting;
3. Aluminum alloy heat sink with anti-corrosive dull polish treatment;
4. Easy to installation and maintenance;
5. Can work with solar system;
6. Luminous efficience can reach 100lm / w;
7. Certifications: CE RoHS and ISO9001;
8. Widely using: led street lights, tunnel lights, gas station light, factory lights, etc.

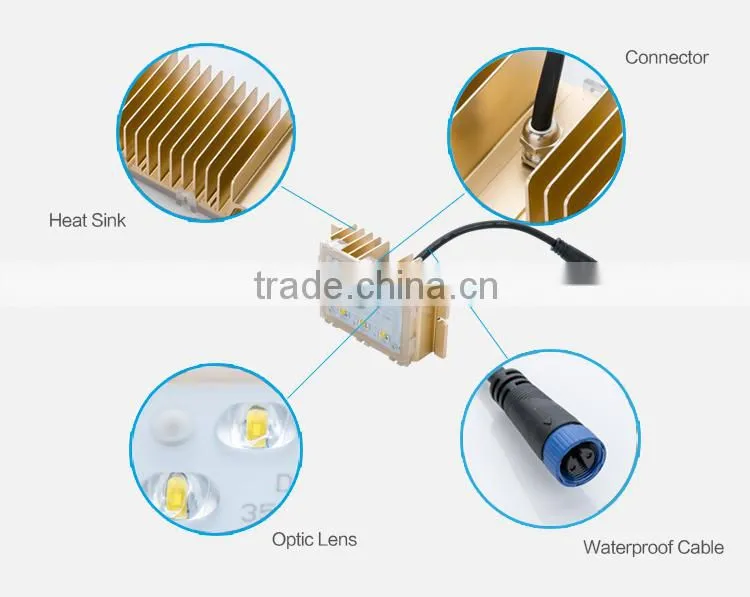

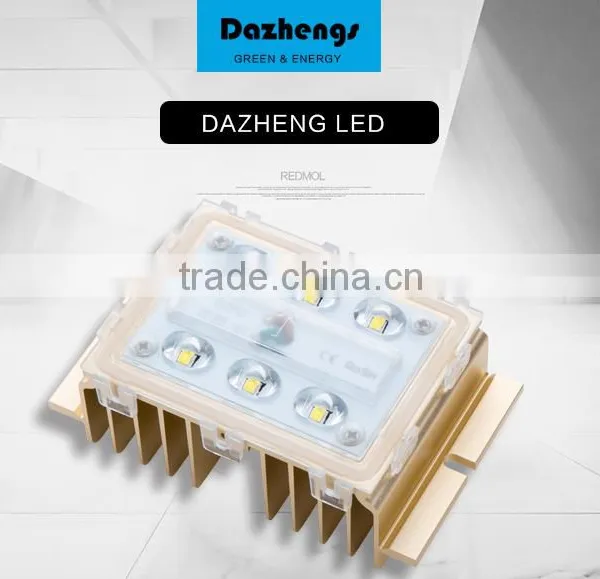

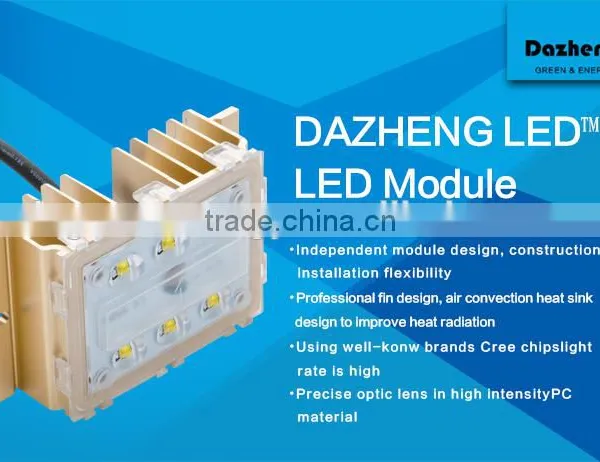

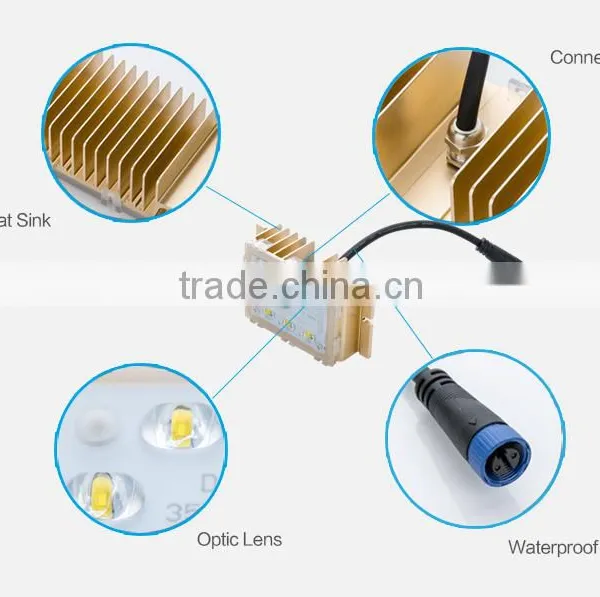

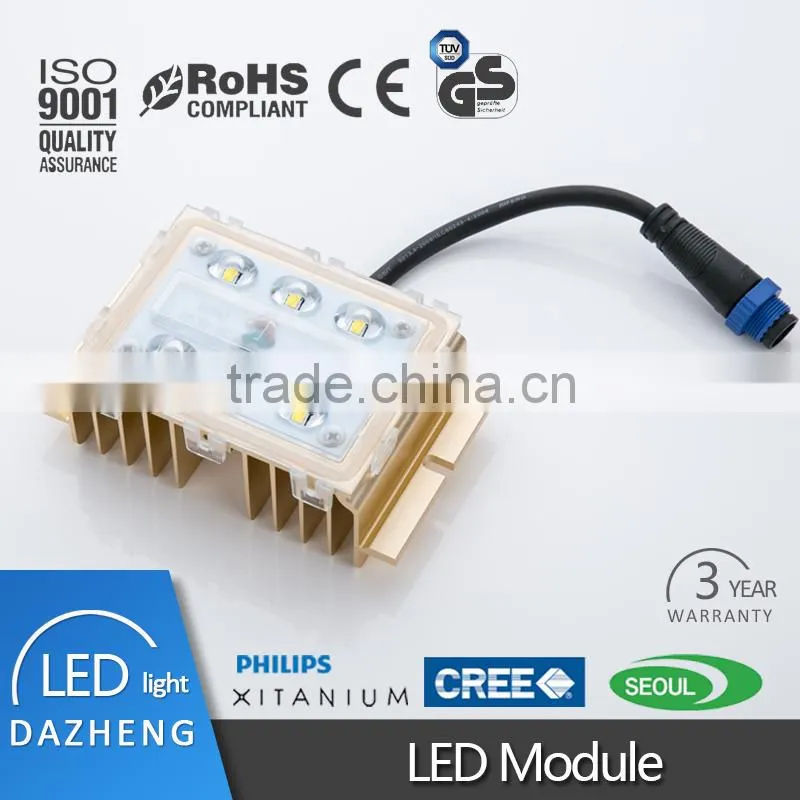

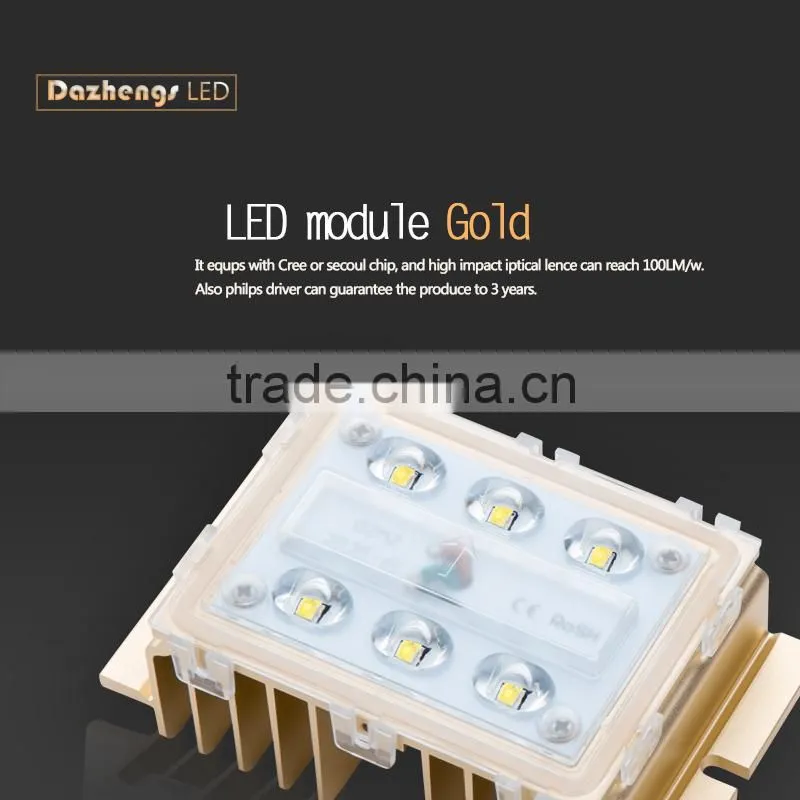

| PRODUCT DISPLAY |
| PRODUCT ADVANTAGE |
1. Adopt anti-corrosion frosted aluminum alloy heat sink, effectively improve
heat dissipation rate
2. Luminous efficiency up to 100LM/w
3. The color temperature drifting is not easy to occur, light transmission rate
up to 95%
4. High energy conversion efficiency
5. Low density aluminum alloy, with excellent electrical conductivity, thermal
conductivity and corrosion resistance.
6. 5% lighting efficiency improvement with optical gel; IP 65 GUARANTEE with
rubber ring; IP68 with sealed gel optional
|
We accept customization, more demand please |
>" href="https://img13.fr-trading.com/contactinfo.html" target="_blank">Contact us >> |

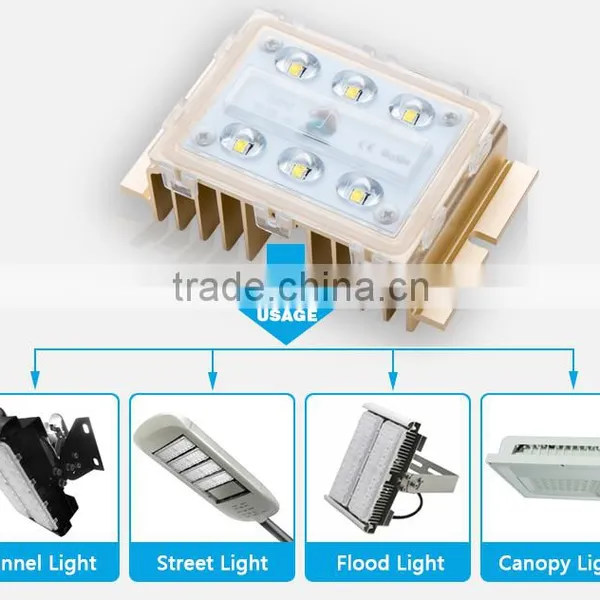

| PRODUCT APPLICATION |
HOT SALE
| Led street light module >> | Led street light >> |
| Led tube light >> | Led down light >> |
| Solar led street light >> | Led panel light >> |
| PACKING & SHIPPING |
1. Each item will be strictly checked by QC and SALES, providing more care
for your items.
2. Each carton will be well wrapped and given advance tests in order to make
the cargo delivered to your door without any damages.
3. We are familiar with the Custom rules and delivery methods, to ensure you
pay least on transportation and clearance.
| COMPANY OVERVIEW |
| FACTORY OVERVIEW |
Standard workshop
1. Competitive price, superior quality, timely delivery and satisfying service
2. Your trustworthy LED supplier
3. Welcome to place order
| TRADE SHOW |
| CERTIFICATE |
| CONTACT US |
We can make many specifications according to your request!
For more information, please contact us.
| FAQ |
|
1) Are you the manufactory or trading company? We are the manufactory with more than 10 years’ experience.
|
|
2) What are your main products? Our main products are led street light, led module, led tube light, led down light, led panel light etc.
|
|
3) Who are your cooperation suppliers? They are Philips, Cree, Epistar, Seoul Semiconductor and Moso, etc.
|
|
4) How about the warranty? We could offer 3/5 years warranty for different model products.
|
|
5) What's the MOQ? The MOQ is 1pc if a company name is used, 100pcs for customized products.
|
|
6) What kind of payment do you use? We can accept T/T, L/C, Western Union, PayPal etc.
|
|
7) What certificate did your products pass? Led module passed CE ROHS; Led street light passed CE ROHS CQC; Led tube light passed CE ROHS CQC CCC EMC.
|
