Top Sale Led Street Light Module With Optical Lens Widly Beam Angle
- Tianjin/ Shanghai/ Guangzhou Port
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
All Different Beam Angel Area Parking Lot Lighting Led Modules 60w for 250w Led Street Lighting
-
High Brightness IP67 Waterproof Led Light Modules High Power 20w 40W Led Modules for Street Lighting Quality Choice
-
Customized High Quality Wholesale Aluminum Led Solar Street Light With 5-12m Pole
-
Latest Design Energy-saving Outdoor Solar Dock Light With Waterproof IP67 Certificate
-
Excellent Heat Dissipation Warm White Solar Led Lighting With Competitive Price
-
DL DLC TUV SAA 15W-240W USA Driver Led Solar Road Light With Famous Chip 3 Years Warranty Quality Choice
Product Details
| Model Number | DZMZ-20W | Chip Material | Other, SiC | |
| Emitting Color | Cool White | Luminous Intensity | high bright | |
| Luminous Flux(lm) | 2000lm | Optical Attenuation(%) | 5% | |
| Power | Other, 20w | Power Dissipation | 20W | |
| Color Rendering Index(Ra) | 70 | Color Temperature | 3000-6000K | |
| Operating Temperature(℃) | -20, 45 | Storage Temperature(℃) | -20, 45 | |
| Place of Origin | Hebei, China | Brand Name | Dazheng led module | |
| Certification | CE |
Product Description

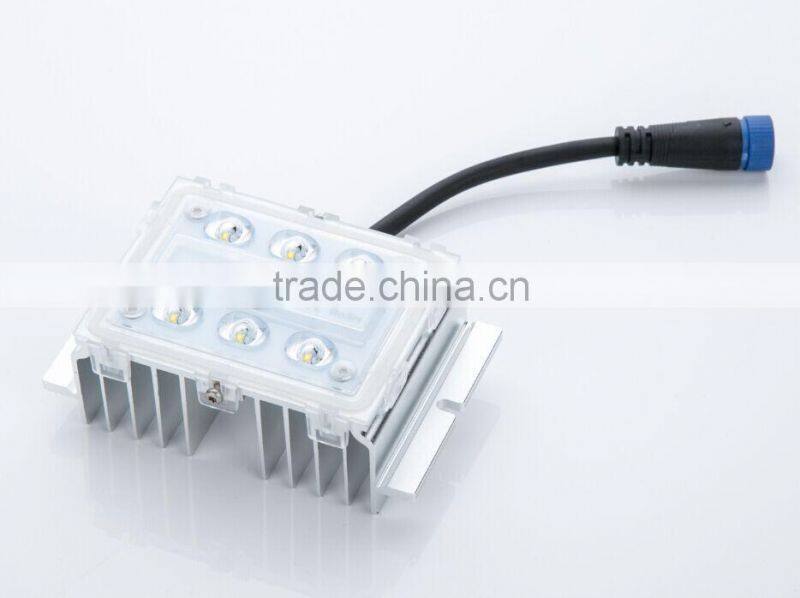

Top sale Led street light module with optical lens widly beam angle
Wall pack led light retrofit Description:
1. Model No.: DZMZ-20W
2. Power: 10W-20W
3. IP rating: IP67
4. Size: 122mm*81mm*50mm
5. Weight: 0.33Kg
6. Dilivery Date: 7-10 work days for sample, 10-25 work days for bulk.
Wall pack led light retrofit Parameter:
Item No | DZMZ-20W | Led Chip | Cree |
Working Voltage | DC>19V | CCT | 3000-6000K |
Power | 10-20w | Protect Grade | IP67 |
CRI | Ra>70 | Work Temperature | -20℃~50℃ |
Current | 0.35-0.9A | Material | Aluminum |
Size | 122*81*50mm | Weight | 0.33kg |

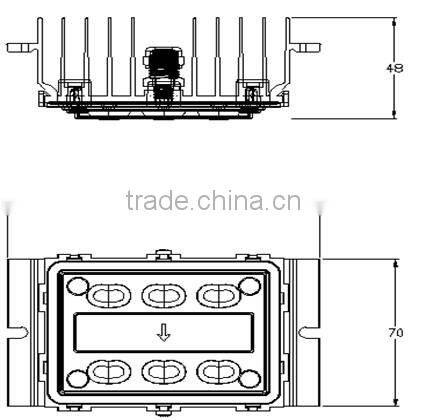

Dimension:
Family products:
| Photo |
|
|
| |||
| Model | DZMZ-20W | DZMZ-60W | DZMZ/T-15W | |||
| Working Voltage | DC>19V | DC>56V | DC 12V | |||
| Power | 10-20w | 40-60w | 15-20W | |||
| Size | 122*81*50mm | 277*81*48mm | 122*81*50mm | |||
| Weight | 0.33Kg | 0.65Kg | 0.34Kg | |||
| CRI | Ra≥70 | |||||
| Current | 0.35-0.9A | 0.35-0.9A | - | |||
| Led Chip | Cree | |||||
| CCT | 3500-6000K | |||||
| Protect Grade | IP67 | |||||
| Work Temperature | -20℃~50℃ | |||||
| Material | Aluminum | |||||

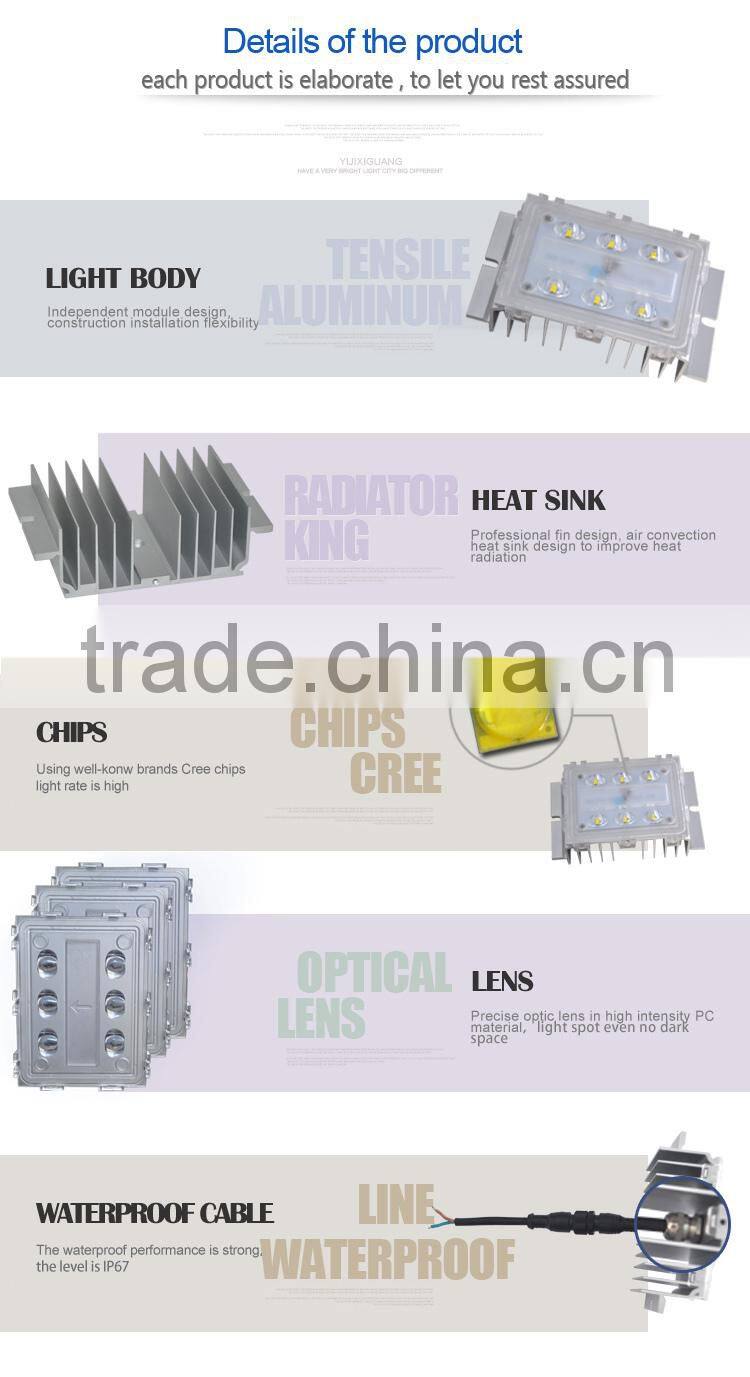

Details of Wall pack led light retrofit:
Product Overviews of Wall pack led light retrofit:
DZMZ-XSHARK retrofit module can be fit in any design of street housing, it is highly efficient assemble into the light house with tool less. Also, DZMZ-Xshark series retrofit module can also equip with DZLD-Xshark series, the price is the most competitive in the LED market.
Replacement suggestion:
35W-40W......3600 lumens, which replaces 150W-175W MH or HPS
60W......5800 lumens, which replaces 200W-250W MH or HPS
80W......7900 lumens, which replaces 300W-350W MH or HPS
90-100W....9500 lumens, which replaces 400W MH or HPS (used in Wall packs and Canopies)
120W...11,400 lumens, which replaces 400W MH or HPS, used in all situations
240W (120w x 2) = 240W...22800 lumens, which replaces 600W MH or HPS, used in all situations
Product application:
Street lighting; park lighting; roadway lighting;
Fence lighting; pathway lighting; campus lighting;
Ramp lighting; boat dock lighting; sidewalk lighting;
Remote area lighting; private road lighting; farm & ranch lighting.

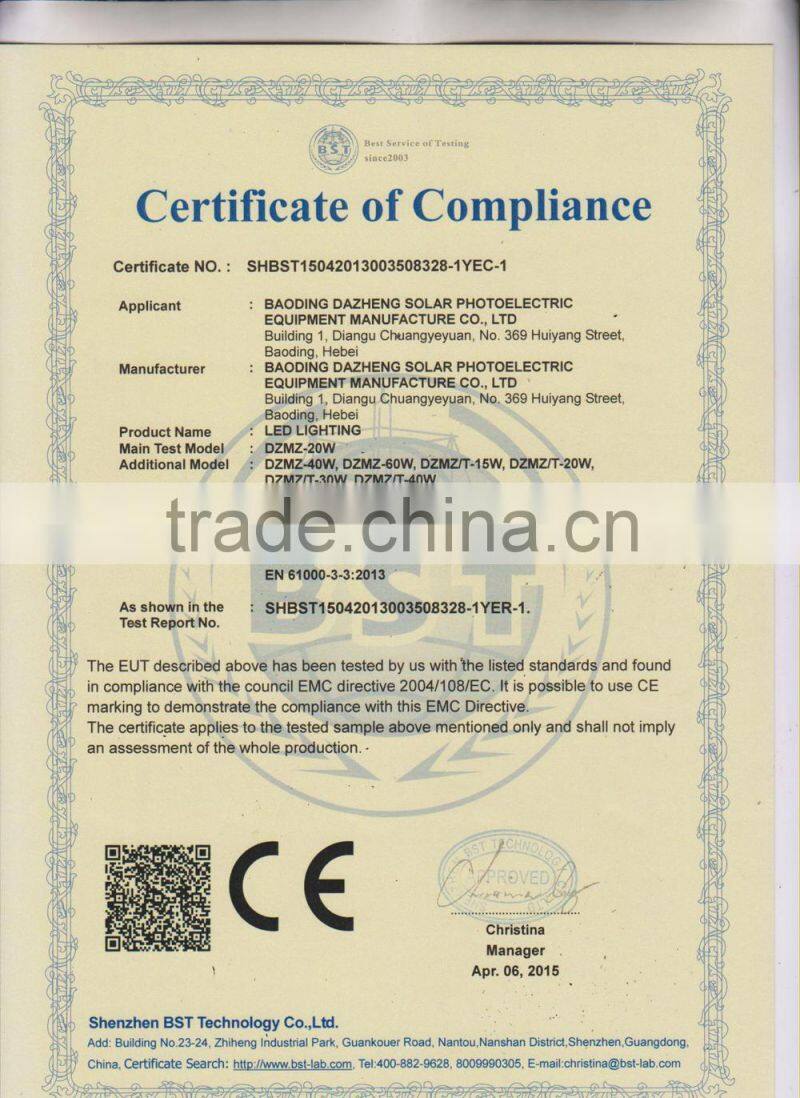

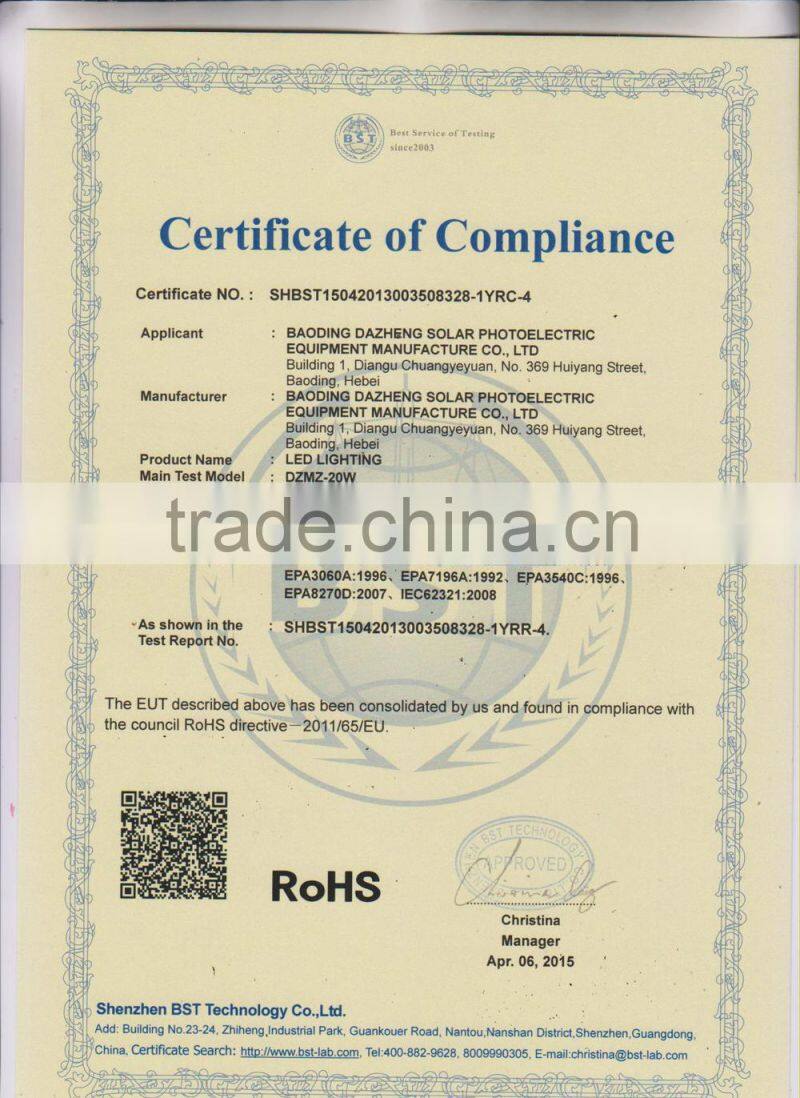

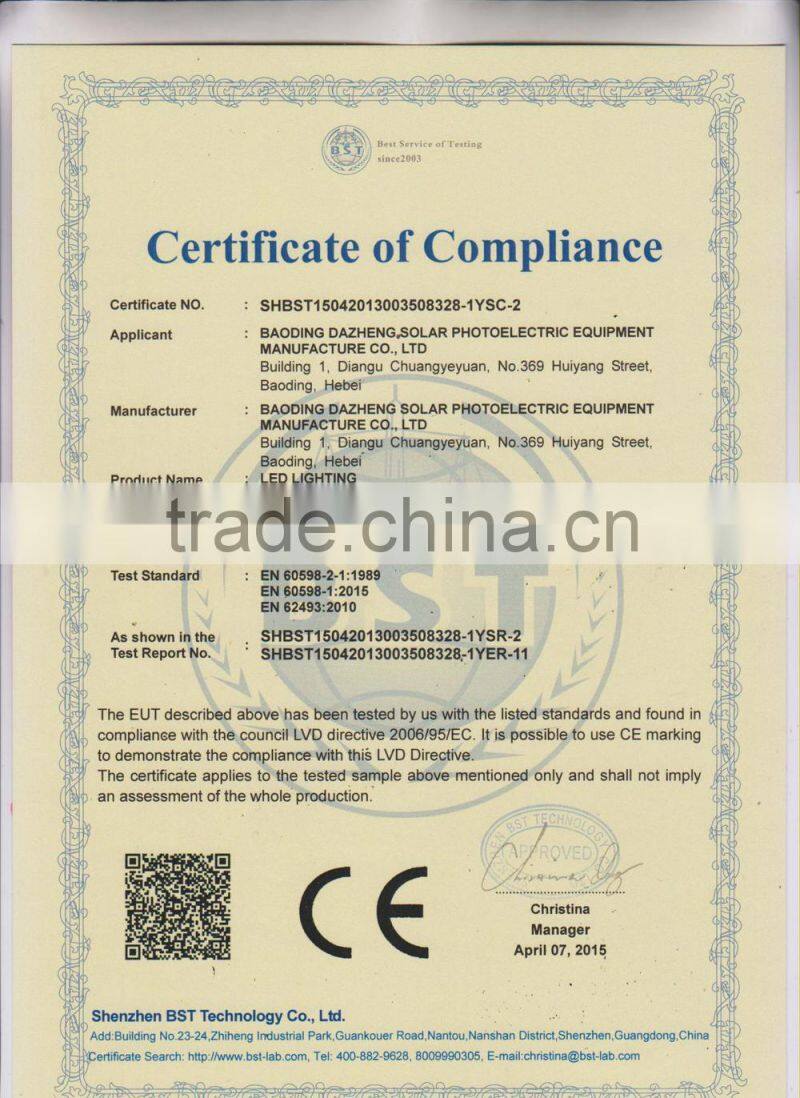

Certifications:
How to order?
Baoding Dazheng Solar Photoelectric Equipment Manufacture Co.,ltd was founded in 2004,located in high-tech development zone of Baoding, which is convenient to Beijing airport and Tianjin seaport. We have ten years' experience in researching, developing, manufacturing led light. Our main product include led street light, led lighting tube, solar led street light etc. We have got more than 20 kinds of national patent, meanwhile our company passed ISO9001, and most of our products have approved CE, ROHS.
