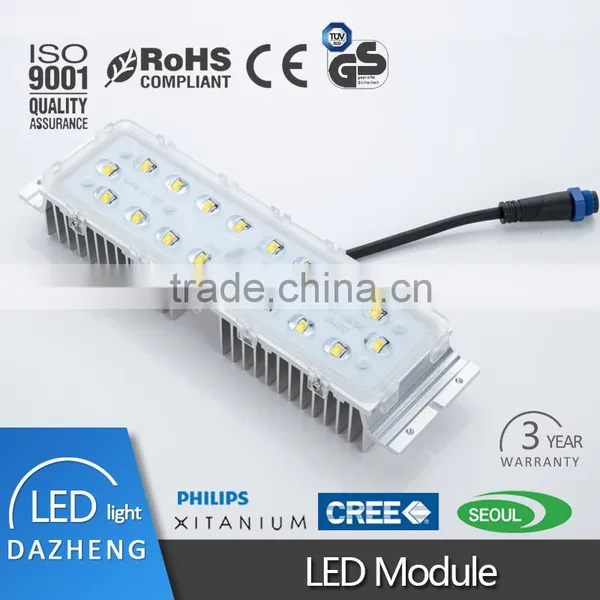

extrusion aluminum 70*140 lens led street light module
30w without driver
led module without driver specification
power: 30W
led chip: 16 pcs smd5050
Certificate: ce rohs
delivery time: sample: 5-7 days, large quantity: 20-25 days
Product datasheet of led module without driver
Item No |
DZMZ-16 |
Working voltage |
AC200-240V |
Power |
30W |
Luminous |
2850lm |
Led efficiency |
95Lm/W |
Led Chip |
seoul |
Led Qty |
16pcs/ 1module |
Weight(kgs) |
0.65 |
Outline Size(mm) |
277*81*50 |
Product advantage of led module without driver
Easier assembly: the power is 30W, 60W, 90W, 120W, 150,180W, 240W
Imported chip: high brightness, heat conductivity 4-5 times than others
Aluminum housing: heat dissipation with good performance
Long life span: can be reach to 50000 hours, almost 10 years
High waterproof: IP 67 protection grade which can be used in outdoor lighting

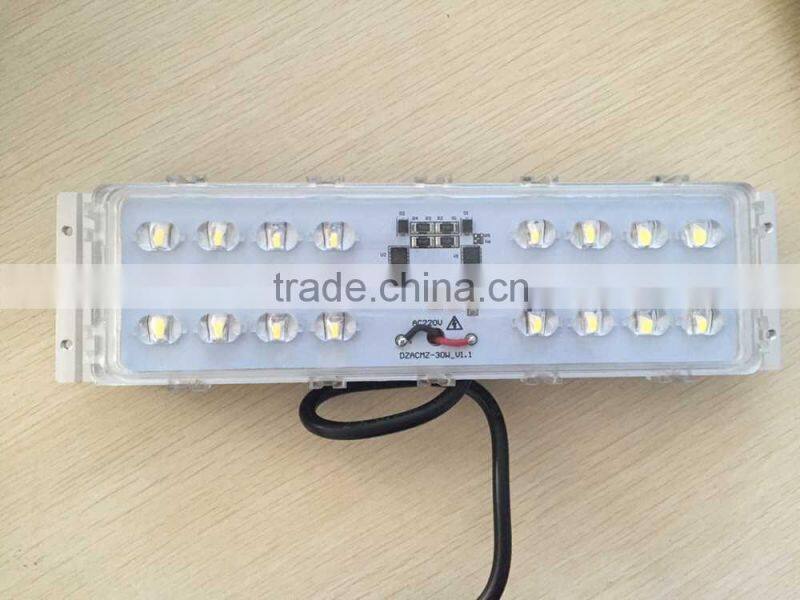

Product detail of led module without driver

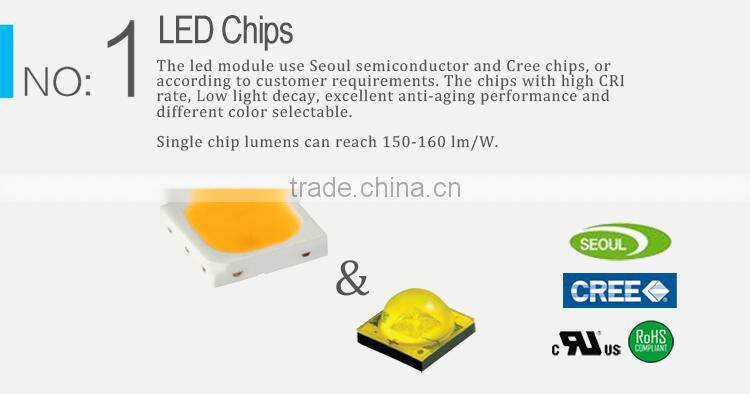

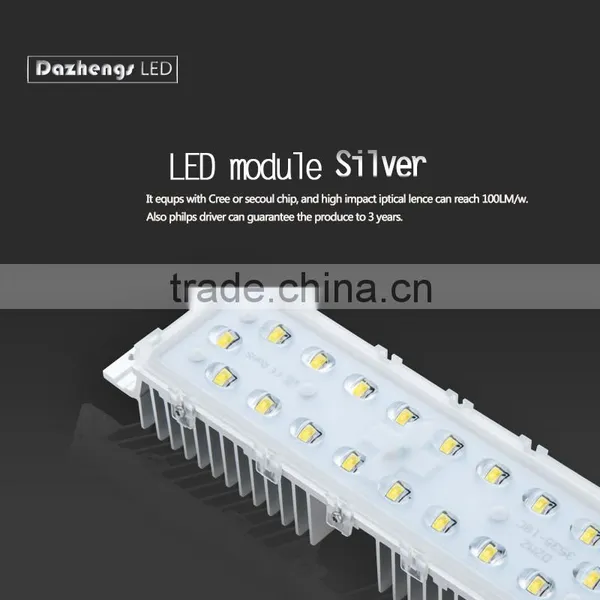

led chip: Seoul chip
16 pcs 3-5w/pc
90-100 lm/W

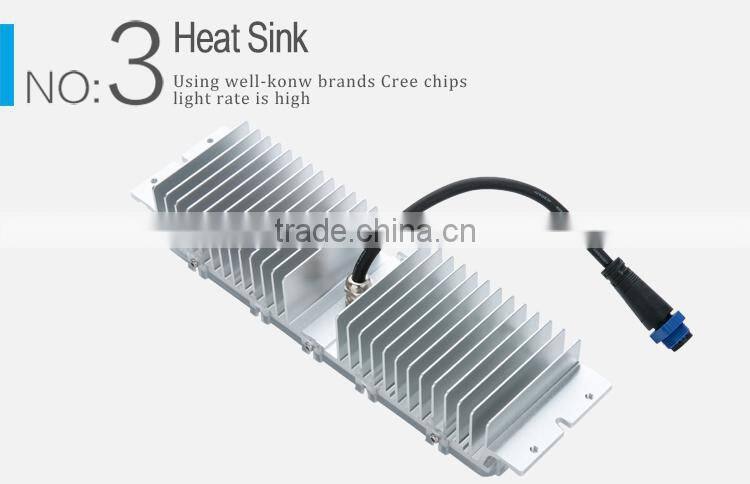

Aluminum heat sink
Good performance cost
High heat dissipation
High transimittance>95%

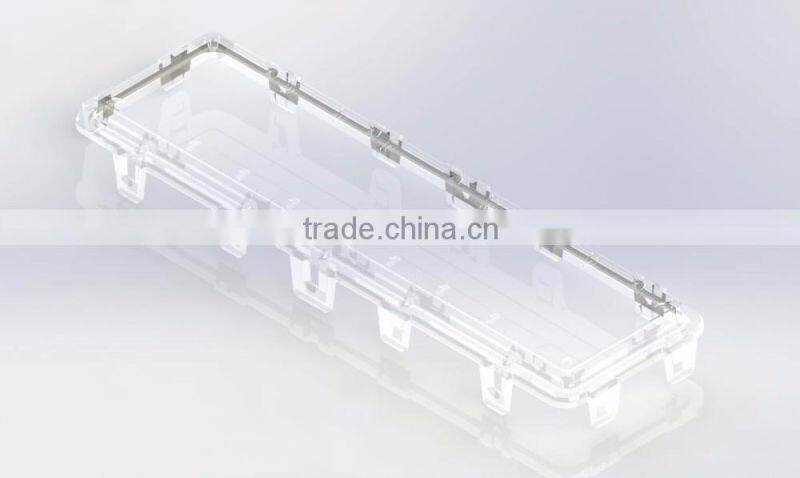

Street light/flood light/flood light lens can be optional

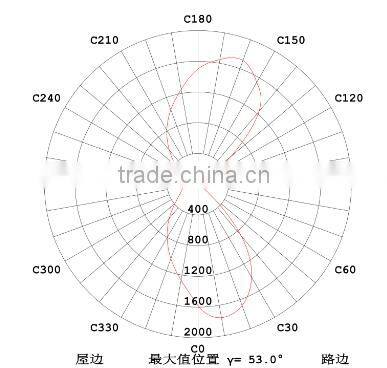

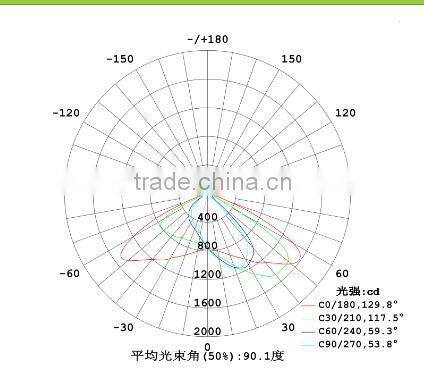

Lighting distribution of led module without driver
For street, road, lane or path lighting, we propose the "Batwing Light Distribution"
which focus on the latitude surface lighting along the walking/driving direction.
package information of led module without driver
Replacement suggestion:
45W......3600 lumens, which replaces 150W-175W MH or HPS
60W......5800 lumens, which replaces 200W-250W MH or HPS
80W......7900 lumens, which replaces 300W-350W MH or HPS
90-100W....9500 lumens, which replaces 400W MH or HPS (used in Wall packs and Canopies)
120W...11,400 lumens, which replaces 400W MH or HPS, used in all situations
240w (120w x 2) = 240W...22800 lumens, which replaces 600W MH or HPS, used in all situations

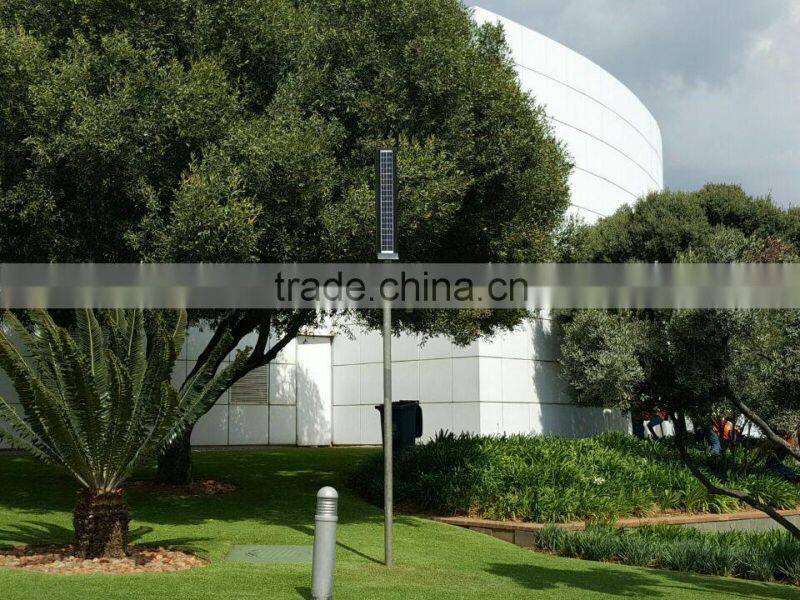

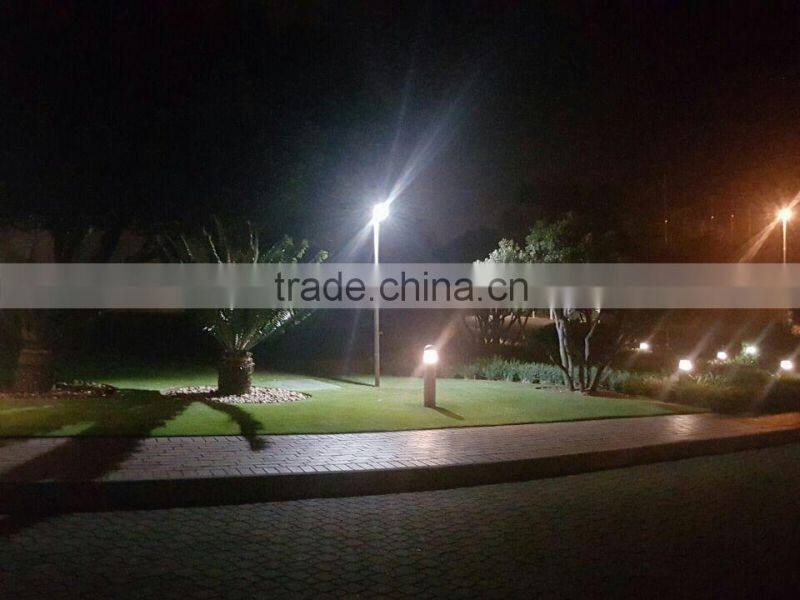

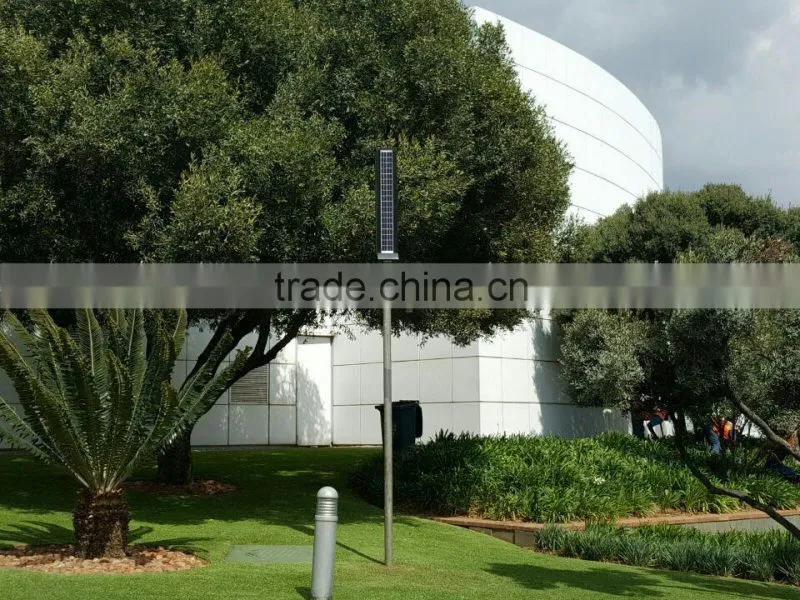

Application field of led module without driver
street light/ petroleum/ power station/ metallugry/ cement/ Big-scale oil station/ tunnel /city road
underground parking lot/ metro station/ supermarket/ big warehouse

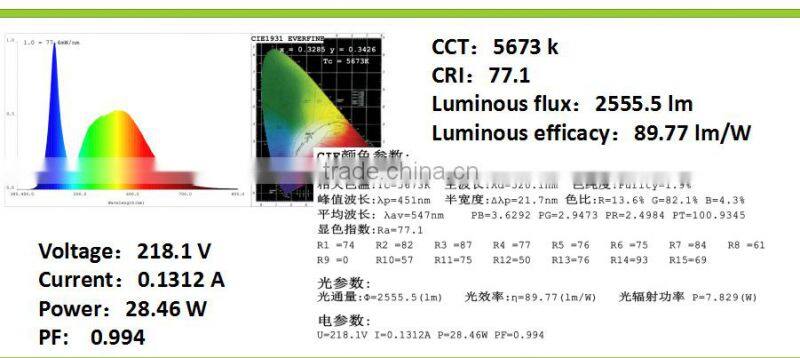

Test report of led module without driver
Delivery time to each main port

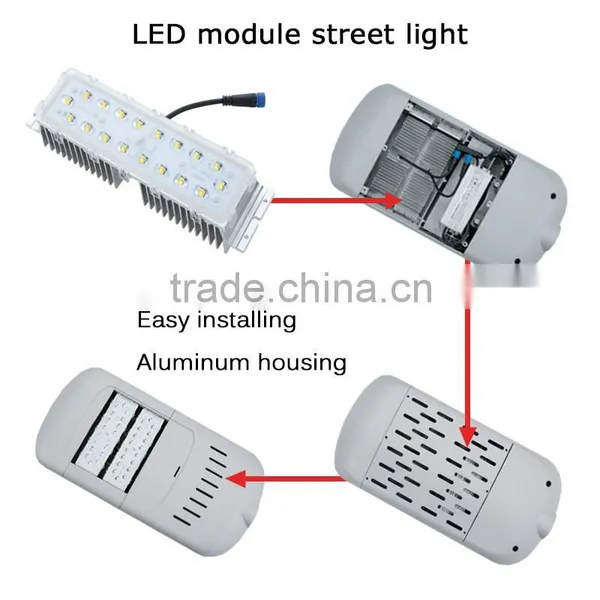

How to install into the traditional fixtures?
1) Cut off the power.
2) Remove the existing component reflector and ballast.
3) Put the driver in the place of the previous ballast.
4) Remove the plastic cover from the LED head.
5) Mount the LED retrofit kit into the socket.
6) Connect the electric wires
ce rohs certificate
Company overview
Our company was founded in 2004,located in high-tech development zone of Baoding.
It is convenient to Beijing airport and Tianjin seaport.
We have ten years' experience in manufacturing and sales of led light.
Our main product include: led street light, led lighting tube, led module etc.
Our production capacity is more than 60,000 pcs per month.
We have more than 150 workers, 20 R&D engineers and 30 sales.
Our company passed ISO9001, all of our products have approved CE, ROHS.
Our products exported to Europe, Middle-east, South-east Asia etc.
Our service
1)Ten years’ experience in developing, manufacturing led street light
2)Professional engineers with ten years’ experience will provide best solution as per your request
3)Salesman with years’ experience will answer your question about production, order, shipment
4) IES and Dialux file will be offered as per your request
5)All the problem caused by our products quality warranty will be answered with 24 hours. during quality warranty, the repaired expense and transportation fee will be born by us.
1) are you the manufactory or trading comany?
We are the manufactory with ten year's experience
2) what are your main products?
Our main products are led street light, led module, led tube
3) what's the power of led module?
The power of led module is 20W, 30W, 40W, 45W, 60W
4) what's the current of led module?
The current of led module is 350-900mA.
5) what's working voltage of led module?
Working voltage of led module is AC100-240V with outside driver.
6) what's the nearest port to your factory?
Xingang seaport and Beijing airport are available
7) what's the MOQ?
The MOQ is 1 pc each model.
8) what's your accepted payment?
My accepted payment is T/T, L/C, D/P, D/A, Paypal, Escrow etc
