Specifications
cnc bending machine/rolling machine1.CE,ISO, Certification
2.BOSCH Hydraulic system
3.High performance
1. Main power:Siemens Electrical made in Germany
2. Main electronic elements: Schneider made in France;
3. Axletree:Double-row self-aligning bearingfrom Germany
4. Main motor: Siemens Electrical made in Germany
5. Programmable logic controller PLC:OMRON products from Japan
6. Hydraulic system: Bosch – Rexroth made inGermany
7. Gear pump: made in China TaiWan ;
8. Work Roller:Material of work roller with 42CrMo Alloy steel.

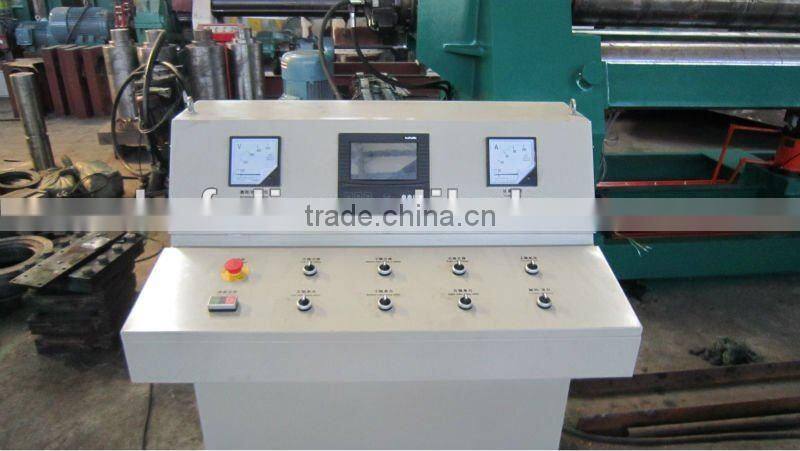

9. Digital display system:Touch Screen for Delta
10 Transducer:OMRON,Made in Japan
11. Automatic lubrication system:Sino-Japanese joint,which has block alarm
W12 Four-roller Rolling machine, plate rolling machine, hydraulic bending machine, 4-roller rolling machine,

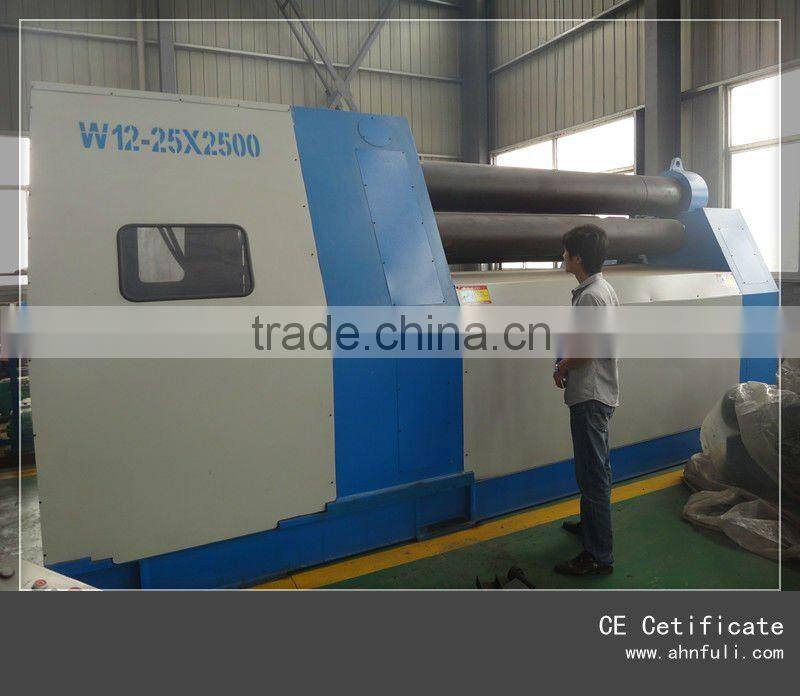

W12-25*2000 rolling machine
1. Summarize:

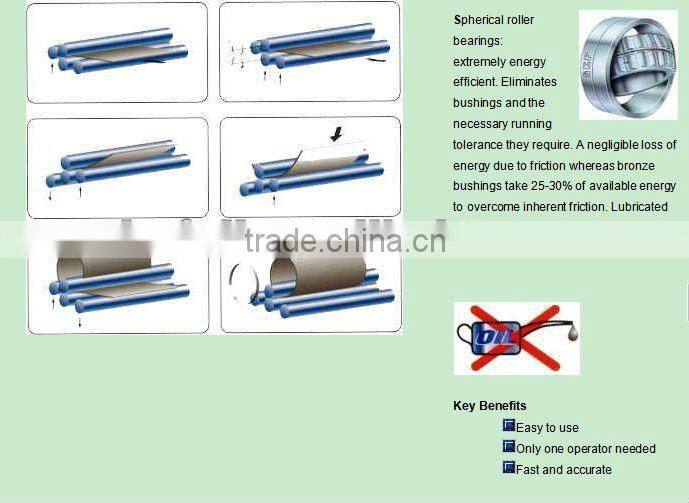

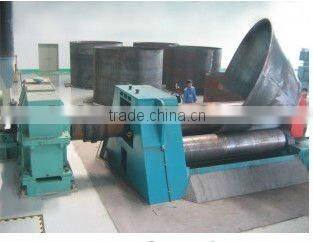

This four rolls bending machine used to coil plate into different sharps such as cylindrical form, conic form and arc, it adopted Japan hydraulic technical.
Top roll is main drive rolls, it can does vertical and level motion, up and down, parallel translation is display. This machine include pre-bending function.
2. Main technical data:
Max thickness of plate: 20mm
Max thickness of pre-bending: 16mm
Max length of working rolls: 2500mm
Max width of plate: 2600mm
Min diameter of bending circle: 700mm
Up roll diameter: Φ 380mm
Down roll diameter: Φ 320mm± 3
Side roll diameter: Φ 280mm± 3
Down roller adding pressure: 160tons
Side roll moving direction: 30°
Coiled speed: 4.5m/min
Side roll lifting speed: 100mm/min
Bending speed: 3m/min
Main drive motor: 30KW
Hydraulic motor: 5.5KW
