Specifications
1, wireless router2,Optical 150M router
3, 4*100BaseTX (Auto MDI/MDIX)
4, Port WAN: 1*100Base optical (Auto MDI/MDIX)

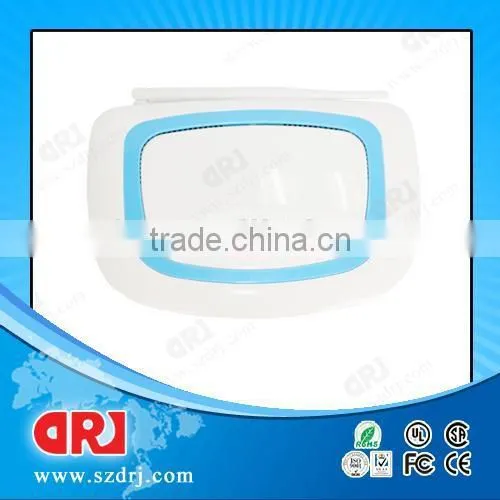

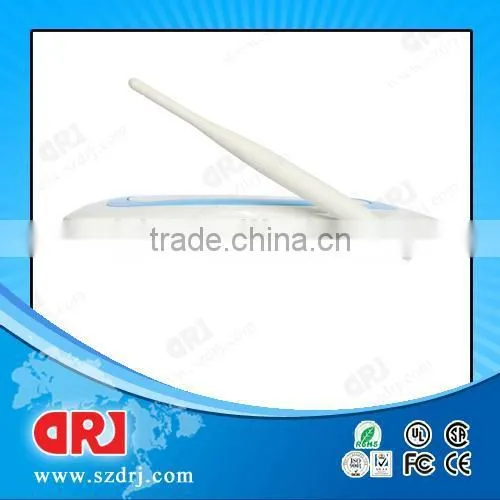

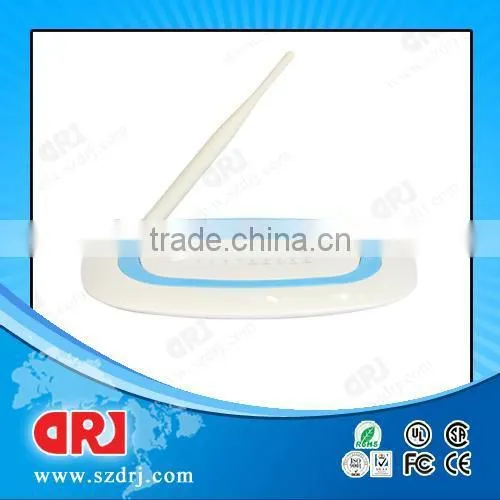

Shenzhen DRJ Wireless 3G Fiber Optical Router 3g wifi router
shenzhen DRJ wireless router
Standard: IEEE802.11n current draft,IEEE 802.11g,IEEE 802.11b,IEEE 802.3,IEEE 802.3u,IEEE 802.3x
Protocol: CSMA/CA,CSMA/CD,TCP/IP,ICMP,NAT,PPPoE, DHCP ,PPTP,UDP, NAT, DNS,DDNS,VPN
Port LAN: 4*100BaseTX (Auto MDI/MDIX)
Port WAN: 1*100Base optical (Auto MDI/MDIX)
Cable: Multi-mode Fiber: 50/125, 62.5/125um(the max distance up to 2km or 5km)
Single-mode Fiber: 8/125,8.7/125, 9/125, 10/125um(the max distance up to20-120km)
Wireless parameter RF Frequency : 2.4~2.4835GHz
Data Rate :
11n: 300/270/243/216/162/108/81/54/27Mbps
135/121.5/108/81/54/40.5/27/13.5Mbps
130/117/104/78/52/39/26/13Mbps
72/65/58.5/52/39/26/19.5/13/6.5Mbps
11g: 54/48/36/24/18/12/9/6M(adaptive)
11b: 11/5.5/2/1M(adaptive)
Wireless Transmit Power: 20dBm(MAX)
Receiver Sensitivity: 135M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Channels : 1-11 (North America);1-13 (General Europe);1-14 (Japan)
WLAN Modulation Scheme : BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
Antenna Type : 1*2.4GHz Dipole Antenna; (1TX*1RX)
Wireless Operation Mode : Standard Access Point; Wireless WAN mode (Client Mode Wireless),WDS ,WPS
Wireless Security : WEP 64/128bit;MAC based Association; SSID broadcast disable;Wi-Fi Protection Access (TBD),WPA,WPA2
LED: 1*Power, 1*CPU Status, 1*Wireless, 1*WAN(optical), 4*LAN
Media: 100BASE-TX: UTP/STP Cat. 5
Management type : Local/Remote Web-based configuration
Memories : Flash-2MB;SDRAM-16MB
Operating Temperature: 0 ~ 55°C
Storage: -20 ~ 65°C
Humidity: 5 ~ 95% non-condensing
Power External DC Power Adapter (linear);(Output DC9V,1A;Input 110V/220V)
Dear Customer:
Thank you for using our DRJ network products, if you have the using and services experience problems,
please give us time to reflect, we will quickly reflected properly resolve your problem,
the quality of our products and services level of sustained improvement and upgrading,
DRJ Always provide a little "value-added" service at no charge. This can include one or two phone consultations,
an e-mail follow-up or a "special report" that you mail after the project is completed.
You really will experience good old fashioned efficient customer service, from real people,with honesty and value for money.
That's my Guarantee to you.
Thank you for your support!
Shenzhen DRJ Network Products Co.,Ltd /
1. What kind of Company we are,trading company or factory?
Trading Company,but we have own factory,welcome to visit our factory!
2. Is OEM or private packing available?
YES!!
3. How do you do regarding quality control?
Quality is job 1. Strictly conform to CE,ROHS,UL certificate
