Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Communication Cable > Cat5e UTP 48 Ports Amp Pathc Panel

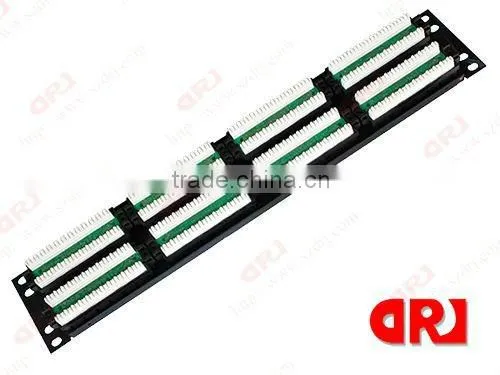

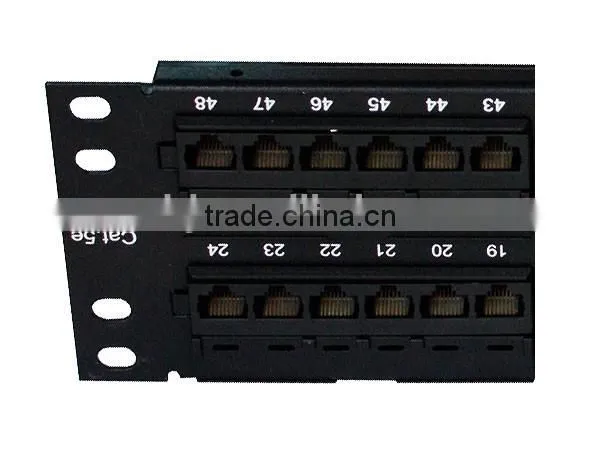

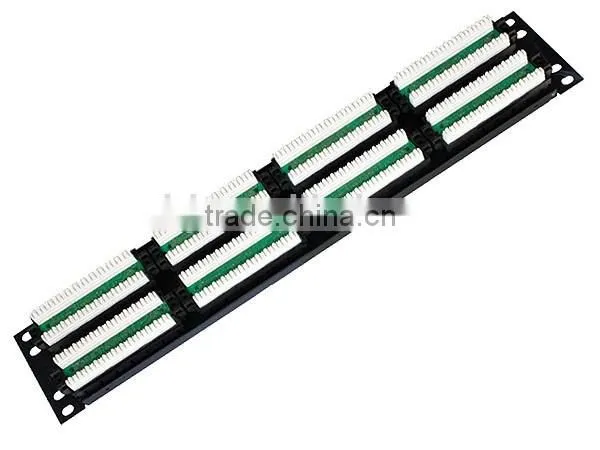

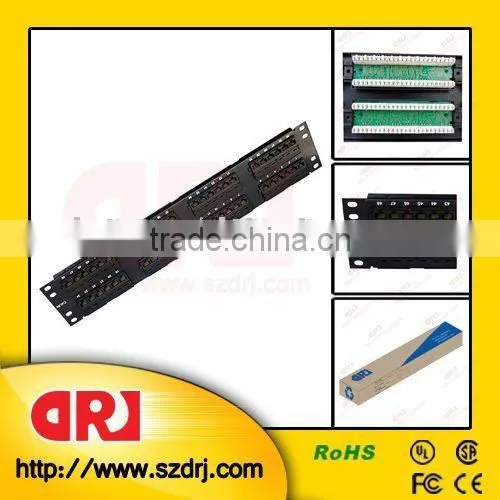

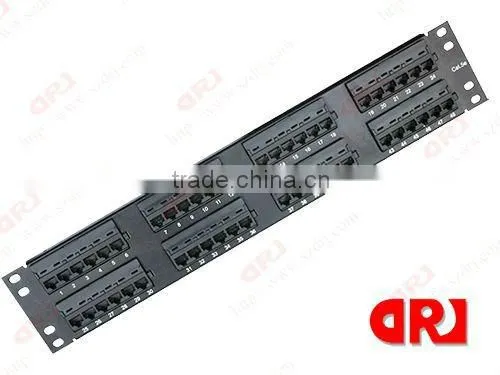

Cat5e UTP 48 Ports Amp Pathc Panel

Cat5e UTP 48 Ports Amp Pathc Panel thumbnail-3

Cat5e UTP 48 Ports Amp Pathc Panel photo-1

Cat5e UTP 48 Ports Amp Pathc Panel photo-2

Cat5e UTP 48 Ports Amp Pathc Panel photo-3

US$ 12 - 25 MOQ: 50 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

DRJ

Model Number:

P5U-48-005

Contact Supplier Request Quote Chat Now

Shenzhen DRJ Network Products Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name DRJ

Model Number P5U-48-005

Type Cat 5e

cat5e AMP Patch panel Description:

1. The structure of each port of this patch panel is same which makes sure that the performance of each port is consistent.

2. Cable manager is combined to patch panel. All kinds of cables with different dimensions can be fixed on the patch panel.

3. T568A punching sequence and T568 B punching sequence are both compatible. Fitting for horizontal distribution in the equipments room and equipments connecting.

Specifications:
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173

Electrical:
Angle:90,180 Degree
Termination: 110 Type
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC UL94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 u" to 50u" Gold plating on contact area.
