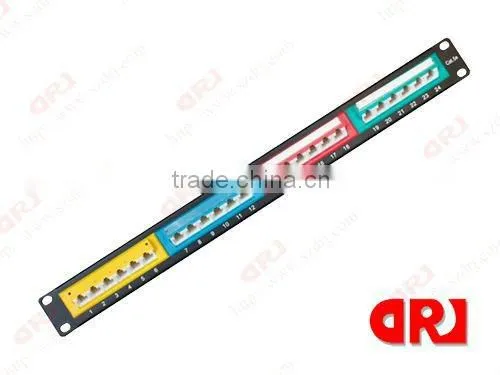

Help CenterMade in China Cat5e UTP 24 Ports Patch Panel
Related Products
-
UTP Cat5e 24 Ports Main Distribution FrameUS$ 9 - 13MOQ: 50 Pieces -
Cat6 UTP 24 Ports Patch PanelNegotiableMOQ: 50 Pieces
-
STP Cat6 24 Ports 110 Block Patch PanelUS$ 8 - 13MOQ: 50 Pieces
-
24Port UTP Cat 6 Patch Panel/Unshielded Cat 6 Patch PanelUS$ 7 - 16MOQ: 50 Pieces
-
With Back Bar 12 Ports UTP Cat5E Patch PanelUS$ 5.7 - 10MOQ: 50 Pieces

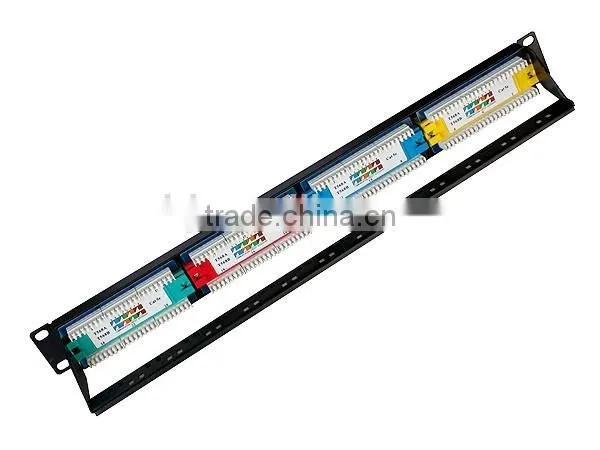

cat5e Patch Panel Description:
1. The structure of each port of this patch panel is same which makes sure that the performance of each port is consistent.
2. Cable manager is combined to patch panel. All kinds of cables with different dimensions can be fixed on the patch panel.

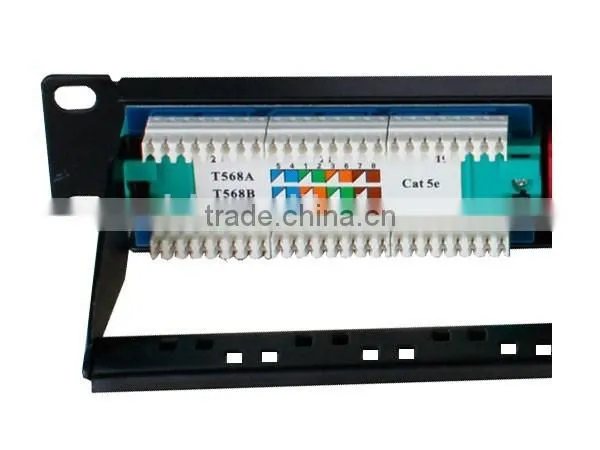

3. T568A punching sequence and T568 B punching sequence are both compatible. Fitting for horizontal distribution in the equipments room and equipments connecting.
Specifications:
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Electrical:
| Angle: | 90,180 Degree |
| Termination: | 110 Type |
| Current rating: | 1.5 Amp Max |
| Voltage rating: | 150 Volts |
| Contact resistance: | 20 m-ohm |
| Insulation Resistance: | 500M-ohm |
| Dielectric Withstand Voltage: | 1000 V AC RMS, 60Hz 1min |
Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC UL94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 u" Gold plating on contact area.
