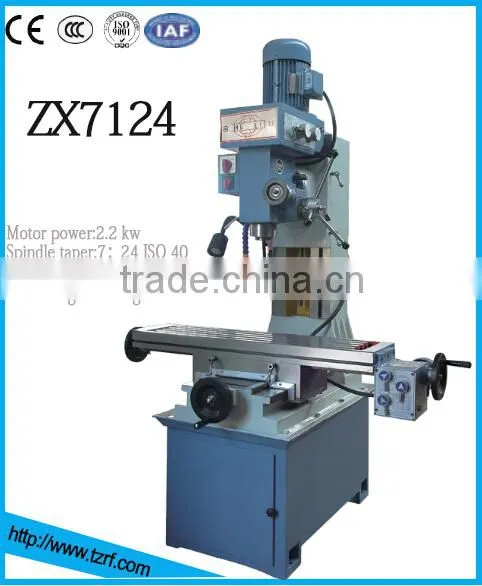

Help CenterSmall Milling Machine Tool ZX7124
Related Products
-
ZX6350C H/V Knee-Type Milling & Drilling MachineNegotiableMOQ: 1 Set -
ZX6350D H/V Knee-Type Milling & Drilling MachineNegotiableMOQ: 8 Sets
-
ZX7550CW H/V Knee-Type Milling & Drilling MachineNegotiableMOQ: 15 Sets
-
Drilling and Milling Machine ZX50CUS$ 1,500 - 1,600MOQ: 1 Set
-
Drilling and Milling Machine ZXTM40NegotiableMOQ: 1 Set
1) 220V single phase Or 380V three phase Capacitor motor 2200W(two speed)
2) X axis Gear feed
3) Y axis Box guide way
4) Working lamp
5) Coolant system
6) Vise
7) NT30 Spindle taper or NT40 Spindle taper
8) Tool holder set NT30 ER32 or NT40
Specification |
UNIT |
ZX7124 |
Spindle taper |
|
7:24 ISO 40 |
Distance between spindle nose and table surface |
mm |
60-500mm |
Distance between spindle axis and column guideway |
mm |
310mm |
Spindle speed range |
rpm |
8 steps 115-1750 rpm |
Table size |
mm |
1000mm x 240 mm |
Table travel(X,Y) |
mm |
550mm x 320mm |
Main motor power |
kw |
2.2kw(two- speed) |
Swivel angle of milling head |
° |
±45°
|
Overall dimension |
mm |
1300 x 1000 x 1700 |
N.W/G.W |
kg |
600/650 |
The Standard Accessories:
No. |
Accessories Name |
ZX7124 |
|
model |
Qty |
||
1 |
Drilling&Milling Machine |
|
1 |
2 |
Hexagon ring spanner |
5 |
1 |
3 |
Wrench |
17-19 |
1 |
4 |
Milling chuck |
MT4 |
1 |
6 |
Spindle connecting rod |
|
1 |
7 |
Drilling chuck |
16 |
1 |
8 |
Wedge(drift) |
|
1 |
9 |
Crank |
|
1 |
10 |
Draw bar |
|
1 |
11 |
Reduction sleeve |
MT4/2 |
1 |
12 |
Reduction sleeve |
MT3/2 |
1 |
13 |
Machine vice |
125mm |
1 |
15 |
Quality certification |
|
|
16 |
Operation manual |
|
1 |
