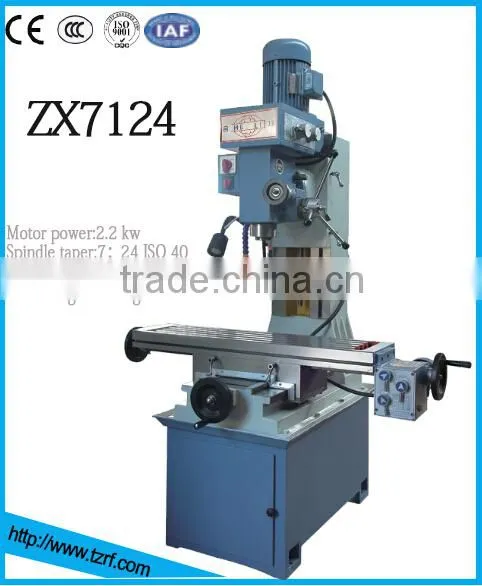

Help CenterSmall Milling and Drilling Machine ZX7124
Related Products
-
Small High Precision Milling and Drilling Machine ZX7124NegotiableMOQ: 1 Set -
Multifunction Drilling and Milling Machine Tool ZX7124NegotiableMOQ: 1 Set
-
Professional Multifunction Drilling and Milling Machine Tool ZX7124 Quality ChoiceUS$ 2,600 - 2,800MOQ: 1 Set
-
ZX7124 Small Milling MachineNegotiableMOQ: 1 Set
-
ZX7124 Small Vertical Milling MachineNegotiableMOQ: 1 Set
ZX7124 DRILLING AND MILLING MACHINE is one high precision,stable and samller drilling and milling machine.It's precision can achieve 0.02mm,because of its stable struction,you can also change it to small cnc milling and drilling machine.Because all its bearing are used NSK,so its speed can reach about 6000r.p.m.It is very good tool .
Specification | UNIT | ZX7124 |
Spindle taper |
| 7:24 ISO 40 |
Distance between spindle nose and table surface | mm | 60-500mm |
Distance between spindle axis and column guideway | mm | 310mm |
Spindle speed range | rpm | 8 steps 115-1750 rpm |
Table size | mm | 1000mm x 240 mm |
Table travel(X,Y) | mm | 550mm x 320mm |
Main motor power | kw | 2.2kw(two- speed) |
Swivel angle of milling head | ° | ±45°
|
Overall dimension | mm | 1300 x 1000 x 1700 |
N.W/G.W | kg | 600/650 |
The Standard Accessories:
No. | Accessories Name | ZX7124 | |
model | Qty | ||
1 | Drilling&Milling Machine |
| 1 |
2 | Hexagon ring spanner | 5 | 1 |
3 | Wrench | 17-19 | 1 |
4 | Milling chuck | MT4 | 1 |
6 | Spindle connecting rod |
| 1 |
7 | Drilling chuck | 16 | 1 |
8 | Wedge(drift) |
| 1 |
9 | Crank |
| 1 |
10 | Draw bar |
| 1 |
11 | Reduction sleeve | MT4/2 | 1 |
12 | Reduction sleeve | MT3/2 | 1 |
13 | Machine vice | 125mm | 1 |
15 | Quality certification |
|
|
16 | Operation manual |
| 1 |
