Home > Products > Band Saw Machine > Double Column Horizontal Band Saw GT4235

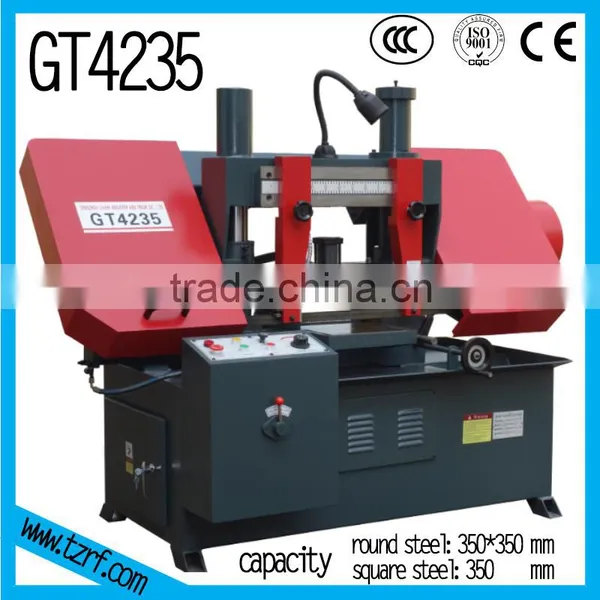

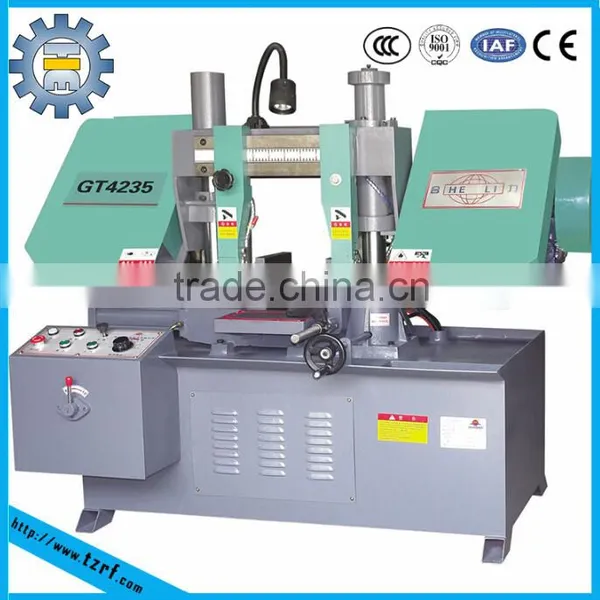

Double Column Horizontal Band Saw GT4235
- 70 Set / Sets per Month
- QINGDAO/SHANG HAI
- T/T
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | HELI |
Model Number: | GT4235 | Voltage: | 220V/380V | Rated Power: | 3KW |
Dimension(L*W*H): | 2000*1200*1500mm | Weight: | 770kg | Certification: | CE ISO |
Warranty: | 13 Months | After-sales Service Provided: | No overseas service provided |
Product Description
Blade Tooth Number Choose
Cutting Lenth m/m | Below 15 | 15-25 | 25-75 | 75-150 | 150-250 | |
Alloy Steel | Teeth number | 12-10 | 10-8 | 8-6 | 6-4 | 4-3 |
Common steel | Teeth number |
|
| 8-6 | 4-3 | 3-2 |
Remark:This is according by length of cutting material
steps change speed(30/45/69 m/min)
Low/mid carbon steel #08 #15 #45 #55 | 50-75 |
Carbon tool steel/alloy structure steel T10 T12 T8Mn | 40-50 |
High-speed steel/cold,hot model alloy tool steel | 30-35 |
Alloy spring steel/bearing steel/stainless steel | 20-35 |
Model | Cutting range mm | Blade size mm | Blade linear Speed m/min | Workpiece clamp type | Main motor power | Overall dimensions mm |
4220(A) | Ø200-200X200 | 2800 x 27 x 0.9 | 27 /45 /69 | Manual | 1.5kw | 1300 x 710 x 1100 |
4220 | Ø200-200X200 | 2800 x 27 x 0.9 | 27 /45/69 | Manual | 1.5kw | 1310 x 715 x 1120 |
4228 | Ø280-280X280 | 3050 x 27 x 0.9 | 30/45/69 | Hydraulic | 2.2kw | 1700 x 900 x 1250 |
4235 | Ø350-350X350 | 4115 x 27 x 1.1 | 30/45/69 | Hydraulic | 3kw | 1900 x 1050 x 1350 |
4240 | Ø400-400X400 | 4355 x 34 x 1.1 | 30/45/69 | Hydraulic | 4kw | 2150 x 1150 x 1450 |
4250 | Ø500-500X500 | 5800 x 41 x 1.3 | 27/45/69 | Hydraulic |
5.5kw | 2800 x 1300 x 2000 |
4270 | Ø700-700X700 | 7205 x 57 x 1.6 | 27/45/69 | Hydraulic | 5.5kw | 3500 x 1800 x 2500 |
4280 | Ø800-800X800 | 8820 x 67 x 1.6 | 25/45/69 | Hydraulic | 7.5kw | 4130 x 2150 x 2500 |
