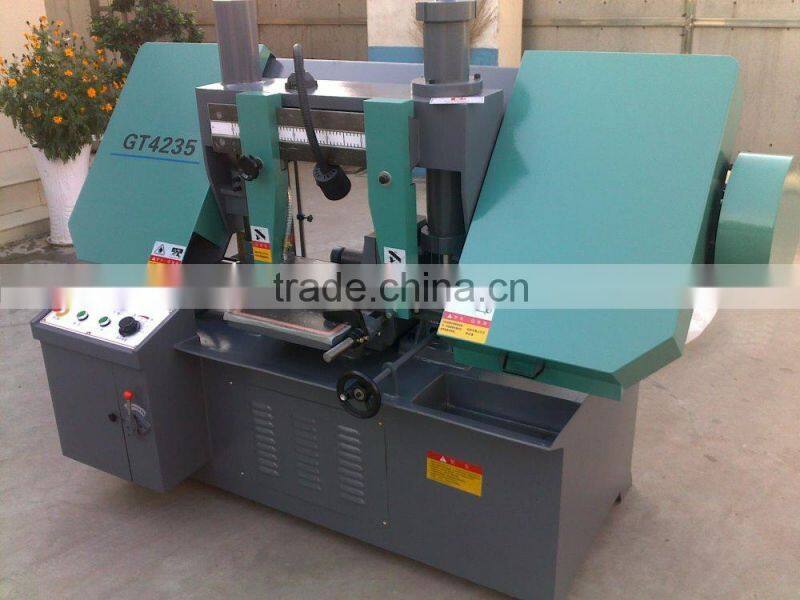

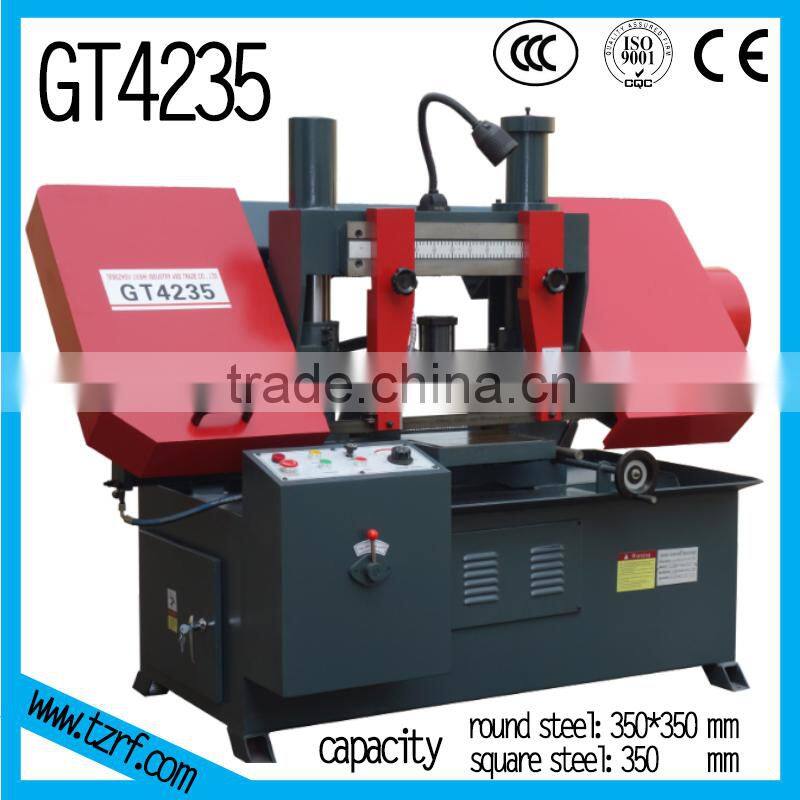

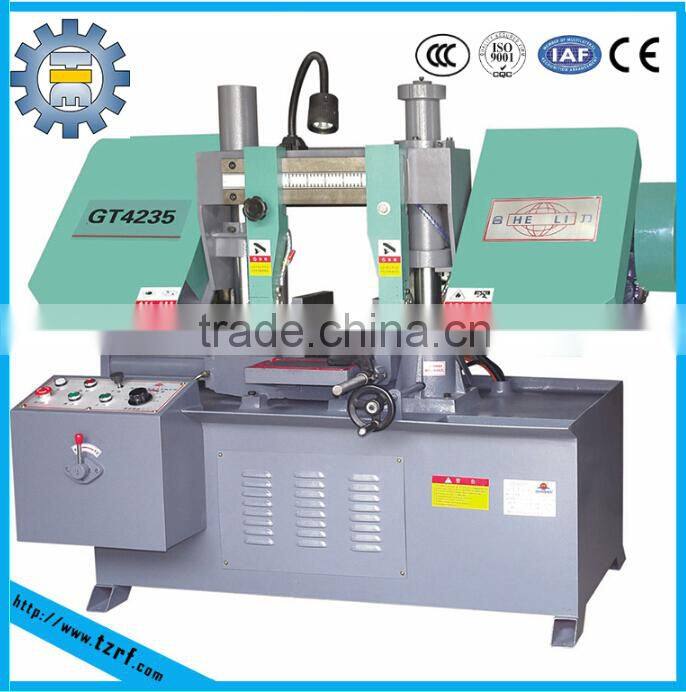

Metal Band Saw GT4235

Name: Metal Band Saw GT4235
Brand: HELI
SKU: 103161071
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

HELI

Tengzhou Runfa Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO/SHANG HAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name HELI

Model Number GT4235

Voltage 220V/380V

Rated Power 3KW

Dimension(L*W*H) 2000*1200*1500mm

Weight 770kg

Certification CE ISO

Warranty 13 Months

After-sales Service Provided No overseas service provided

Remark:This is according by length of cutting material

Metal Band Saw cutting speed choose by material:

steps change speed(30/45/69 m/min)

Low/mid carbon steel #08 #15 #45 #55	50-75
Carbon tool steel/alloy structure steel T10 T12 T8Mn	40-50
High-speed steel/cold,hot model alloy tool steel	30-35
Alloy spring steel/bearing steel/stainless steel	20-35

The Metal Band Saw Main Parameters:

Model	Cutting range mm	Blade size mm	Blade linear Speed m/min	Workpiece clamp type	Main motor power	Overall dimensions mm
4220(A)	Ø200-200X200	2800 x 27 x 0.9	27 /45 /69	Manual	1.5kw	1300 x 710 x 1100
4220	Ø200-200X200	2800 x 27 x 0.9	27 /45/69	Manual	1.5kw	1310 x 715 x 1120
4228	Ø280-280X280	3050 x 27 x 0.9	30/45/69	Hydraulic	2.2kw	1700 x 900 x 1250
4235	Ø350-350X350	4115 x 27 x 1.1	30/45/69	Hydraulic	3kw	1900 x 1050 x 1350
4240	Ø400-400X400	4355 x 34 x 1.1	30/45/69	Hydraulic	4kw	2150 x 1150 x 1450
4250	Ø500-500X500	5800 x 41 x 1.3	27/45/69	Hydraulic	5.5kw	2800 x 1300 x 2000
4270	Ø700-700X700	7205 x 57 x 1.6	27/45/69	Hydraulic	5.5kw	3500 x 1800 x 2500
4280	Ø800-800X800	8820 x 67 x 1.6	25/45/69	Hydraulic	7.5kw	4130 x 2150 x 2500
