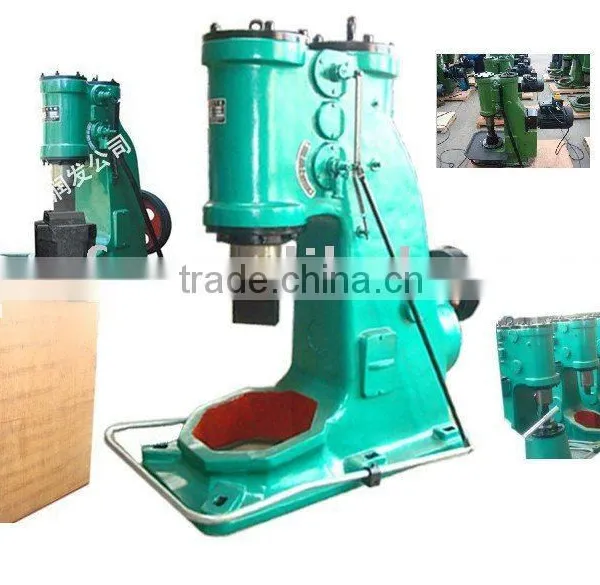

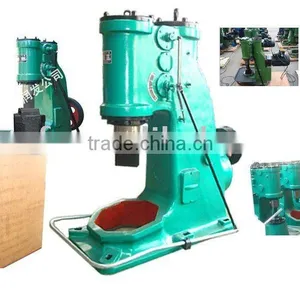

Air Hammer

Name: Air Hammer
Brand: HELI
SKU: 103158949
Availability: InStock

Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

HELI

Model Number:

C41Series

Tengzhou Runfa Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name HELI

Model Number C41Series

Type Air Hammer

Specifications

This forging hammer is widely used for general Forging works, such as drawing-out, upsetting, punching, chiseling, forge, weldin

Air Hammer C41-150KG:
1.Reliable structure;
2.Easy-operation;
3.Stable function;
4.High precision

Item		Unit	Numerical Value
Weight of falling parts		kg	16	20	25	40	75	150
Maximum blow energy		J	180	220	270	530	900	2200
Distance from center of die to frame		mm	150	180	200	235	300	350
Distance between top and bottom die		mm	180	200	240	245	300	370
Number of blows per minute		min-1	258	270	250	245	210	180
Dimension of top to bottom		mm	70*30	90*50	100*50	120*50	145*65	130*130
Diameter of the working cylinder		mm	115	150	165	200	235	330
Diameter of the compressing cylinder		mm	125	155	170	205	240	340
Travel distance of malleus		mm	210	200	275	290	345	370
Travel distance of plunger		mm	120	130	140	154	200
Forges	Round	mm		Φ35	Φ45	Φ68	Φ85	Φ145
Forges	Square	mm		30	40	52	65	130
Motor	Power	kw	1.5	2.0	2.2	4.5	7	15
Motor	Rotate speed	rpm		1440	1440	1440	1440	1470
Outside Size	Length	mm	584	670	800	1080	1600	2080
	Width	mm	390	360	410	600	950	1240
	High	mm	952	1050	1213	1389	1950	2350
Anvil block weight		kg		190	247	400	850	1800
Hammer weight		kg	~220	~500	~720	~1400	~2800	~5060
