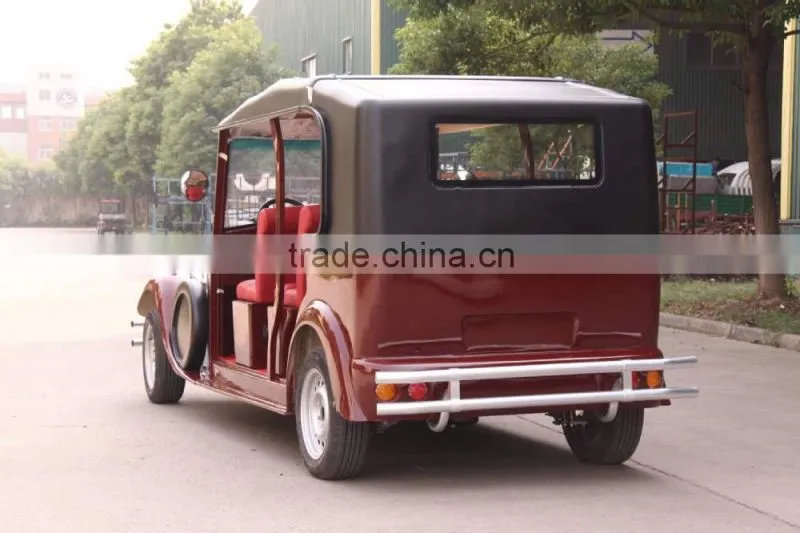

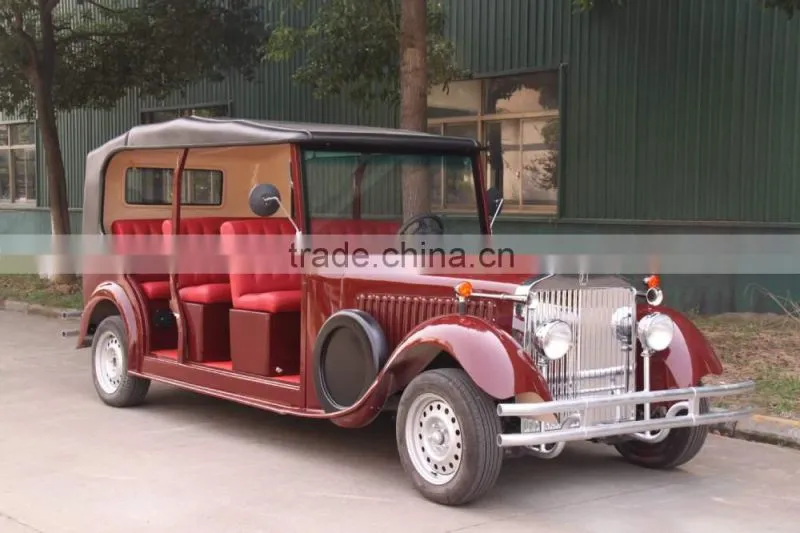

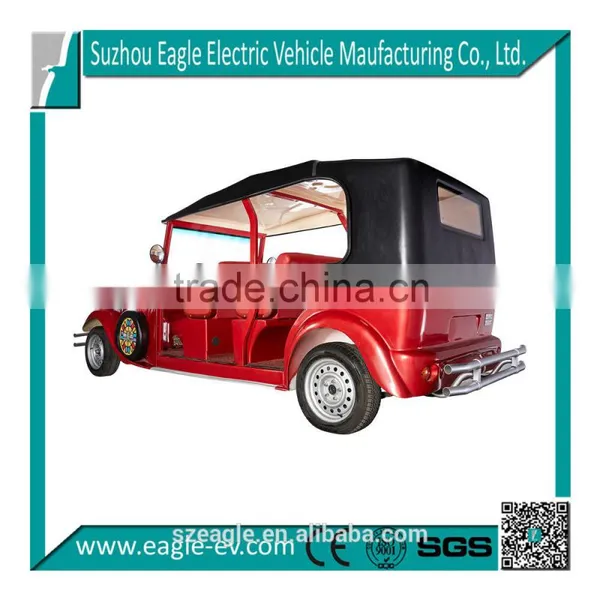

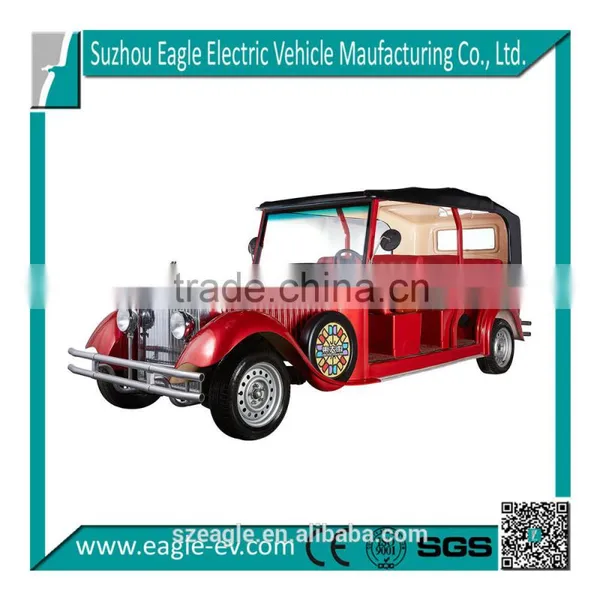

9 seat 4 wheel electric vehicle with comfortable bench seat with high backrest,
Key Components
Item |
Description |
Controller |
Curtis controller, 350A, imported from USA directly |
Motor |
Rated power 4KW(5.4HP), Chinese brand |
Battery |
Trojan battery, T105+, imported from USA directly |
Charger |
High frequency onboard charger (input 90V-265V, 47-63HZ, output 48V/22A) |
Performance
Item |
Description |
Passenger Capacity |
6 |
Range (loaded) (km)* |
up to 70 |
Max.speed (km/h) |
up to 25 |
Min.turning radius (m) |
6.3 |
Max.climbing ability(loaded) |
up to 15% |
Max. movement after brake at speed of 20km/h |
≤4m |
Max.loading weight (kgs) |
480 |
Charging time (hour) |
8-10 |
Battery lifespan (cycles) |
750 |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions
Item |
Description |
Overall dimensions (mm) |
4400x1650x1850 (LxWxH) |
Min.ground clearance (mm) |
120 |
Wheelbase (mm) |
2900 |
Front wheel tread (mm) |
1385 |
Rear wheel tread (mm) |
1385 |
Body and Frame
Item |
Description |
Frame & Chassis |
Welded steel framework with sand blasting and painting |
Body |
FRP |
Roof |
FRP |
Windshield |
Front Laminated glass, rear toughened glass |
Seat |
Sponge with super-fibre leather,with wooden bottom |
Floor |
Skidproof leather and red carpet |
Side trim |
FRP |
Foot step |
Aluminum |
Door |
Half closed, aluminum, with handle |
Dashboard |
FRP, with F/R switch, emergency light switch, speedometer, amperemeter, voltameter, combination switch, etc.. |
Side rear view mirror |
2pcs |
Electric System
Item |
Description |
Lights |
12V, headlight, front turning light, 2 front fog light, taillight (brake light and rear turing light) and 1 rear fog light |
Horn |
Air-horn |
Reverse buzzer |
Electric, 12V |
Combination switch |
including switch for headlight, turning light, fog light and horn |
DC/DC converter |
48V/12V |
Digital Meter |
Amperemeter, voltometer, speedometer |
Audio system |
Radio with MP3 receiver and 2 waterproof speaker |
Steering & suspersion
Item |
Description |
Steering System |
Single-stage rack and pinion steering system, with automatic compensation function |
Brake System |
4-wheel hydraulic front disc rear drum brake |
Accelerator |
Resistance type, stepless speed change |
Front suspension |
Independent suspension |
Rear suspension |
integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber |
Driving mode |
Rear axle two stage deceleration, motor direct driving |
Rear axle |
Integrated, steel differential case, 12.49:1 gear ratio |
Wheel & Tyre |
185/R65-15 tire, 6J-15 steel wheel, wheel cap |
| Container loading qty | Assembled |
| Qty/20' | 1units |
| Qty/40' | 2units |
| Qty/40'HQ | 2units |
All electric vehicles sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
* 13 months warranty
* technical support
* full spare parts support
Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.
Payment Terms:
"T/T 30% down payment at order, T/T 70% to be paid before the delivery" Or Irrevocable L/C at sight
Lead time:
Four Weeks after getting your down payment or original L/C
MOQ:
We dont have minimum order requirement but may apply extra cost for sample unit
